VIBRO-METER VM600 Machinery Protection System: Architecture, Core Modules and Industrial Application Guide

The VIBRO-METER VM600 series is a rack-mounted industrial machinery protection and condition monitoring platform developed by Meggitt, with over 8,000 systems installed worldwide. As a standard safety solution for critical rotating equipment, it is widely deployed in power generation, oil & gas, petrochemical and metallurgical industries, delivering 24/7 real-time vibration, displacement, speed and temperature monitoring and interlock protection.

The VM600 system adopts a fully modular hot-swappable architecture. Single module failure will not interrupt the operation of the whole rack, which ensures high reliability for continuous production scenarios. The core hardware system consists of the main processor module, machinery protection cards, power supply units, I/O interface cards and extended function modules. Among them, the CPUM main processor module and MPC4 machinery protection card are the two core components that determine system computing performance and protection accuracy.

1. Modular System Architecture of VIBRO-METER VM600

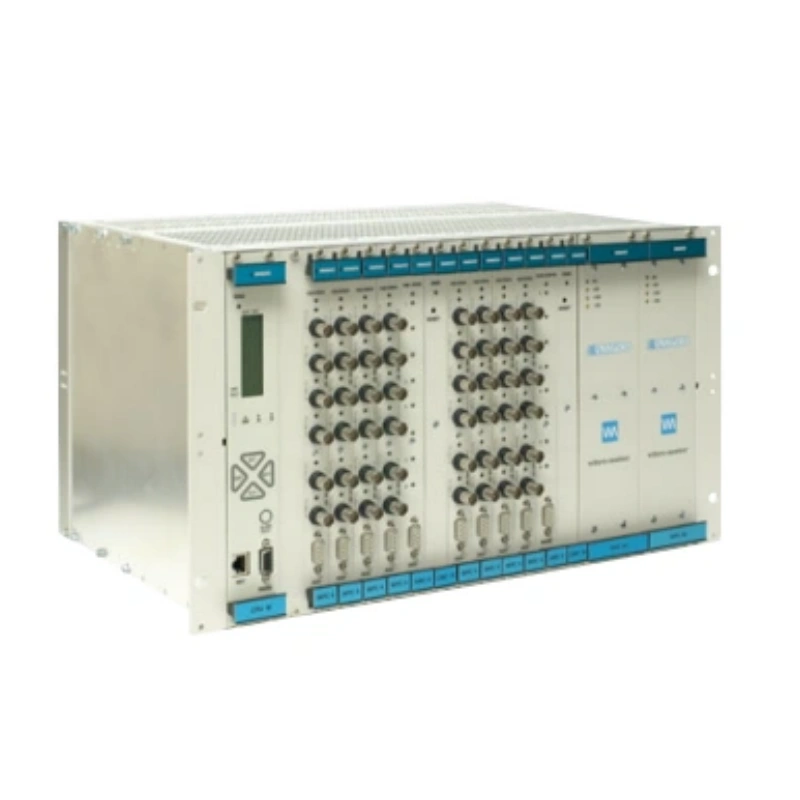

The VM600 system is based on a standard 19-inch industrial rack design, available in 6U full-size and 1U slim configurations. It can be flexibly expanded according to on-site monitoring requirements, with a minimum configuration of only rack, power supply and one set of processor/monitoring cards.

The complete system is divided into four functional layers:

• Central processing layer: Represented by the CPUM module, responsible for full-rack data aggregation, configuration management and upper-level network communication
• Signal protection layer: Represented by the MPC4 card, executing real-time signal acquisition, analysis and safety threshold logic
• Power supply layer: Rack power supply module supporting single or dual redundant backup modes
• Field interface layer: I/O cards, relay output cards and sensor connection terminals

This layered modular design supports on-demand expansion. Users can add temperature monitoring cards, combustion dynamic analysis cards and other functional units according to project requirements, without replacing the existing rack architecture.

2. Core Module Deep Technical Analysis

2.1 CPUM 200-595-041-113 Main Processor Module

The CPUM module is the central computing and communication hub of the VM600 rack. Built around a 32-bit industrial-grade microcontroller core, it undertakes full-rack data summarization, protection logic operation, device configuration management and multi-protocol network conversion.

Key Technical Features

• Redundant communication interfaces: Equipped with 4 independent 100MB Ethernet ports with dual redundant channel design, supporting Modbus RTU, Modbus TCP and PROFINET standard industrial protocols, realizing seamless data docking with DCS, PLC and SCADA systems. It also integrates RS-232 and RS-485 serial ports for local on-site debugging.
• Configuration and storage: With removable CompactFlash memory card slot, supporting one-click backup and migration of system configuration files; supports centralized one-shot card configuration function, enabling batch parameter management of all modules in the rack.
• Industrial environmental adaptability: Hot-swappable modular rack mounting structure, operating temperature range from -20°C to +60°C, 0% to 90% non-condensing ambient humidity, certified by CE and RoHS industrial standards, adapting to harsh on-site workshop environments.

For full technical specifications, dimensional data and stock availability of the CPUM main processor module, visit our official product page:VIBRO-METER CPUM 200-595-041-113 VM600 Main Processor Module

2.2 MPC4 200-510-076-114 Machinery Protection Card

The MPC4 is the core signal processing and protection execution unit of the VM600 system. Based on a high-speed DSP processing core, it completes real-time acquisition, filtering, analysis and safety threshold triggering of vibration, displacement and speed signals, which is the core guarantee for rotating equipment safety operation.

Key Technical Features

• Multi-channel signal configuration: 4 independent programmable dynamic input channels and 2 dedicated tachometer speed input channels, compatible with IEPE piezoelectric accelerometers, eddy current proximity probes and magnetoelectric velocity sensors, covering mainstream industrial monitoring sensor types.
• High-precision measurement performance: 24-bit high-resolution digital signal conversion, over 90dB full-scale dynamic range, 0.1Hz to 10kHz flat frequency response; configurable filter slope from 6dB/octave to 60dB/octave, out-of-band attenuation greater than 50dB, ±1% full-scale amplitude accuracy.
• Intelligent protection logic: Dual-level (alert/hazard) programmable safety thresholds, supporting simultaneous amplitude and phase tracking; built-in line fault detection function, automatically identifying open circuit and short circuit faults; front-panel BNC connectors provide raw signal output for on-site debugging and waveform analysis.
• On-site maintainability: 6U standard rack hot-swappable design, operating temperature range from -20°C to +70°C, passing industrial EMC certification, supporting online replacement without system shutdown.

View detailed parameters, certification documents and inventory information for the MPC4 machinery protection card here:VIBRO-METER MPC4 200-510-076-114 VM600 Machinery Protection Card

3. Core Industrial Application Scenarios

The VM600 system is positioned for safety protection of high-value key rotating equipment, and has formed standard application schemes in multiple heavy industries:

1. Power generation industry: TSI (Turbine Supervisory Instrumentation) systems for steam turbines, gas turbines and hydroelectric generators, monitoring vibration, axial displacement, differential expansion and rotational speed in real time, triggering interlock protection to avoid catastrophic equipment damage.
2. Oil & gas and petrochemical industry: Condition monitoring and protection for centrifugal compressors, pump units and blowers, adapting to explosion-proof requirements and harsh environmental conditions in refineries and offshore platforms.
3. Mining and metallurgy industry: Vibration monitoring and fault early warning for large motors, crushers and rolling mills, adapting to heavy load and strong impact industrial environments.
4. Water treatment industry: Operation protection for large water pumps and blowers, supporting long-term unattended stable operation.

4. On-site Maintenance & Replacement Best Practices

4.1 Standard Hot-swap Replacement Procedure

All VM600 series modules support hot-swappable replacement. There is no need to cut off the power supply of the whole rack when replacing faulty modules. Record the original module address and configuration parameters before disassembly, import the configuration file after replacement, and verify channel signals and alarm logic one by one.

4.2 Regular Inspection and Calibration

• Regularly check rack wiring terminals and module operation indicator lights
• Perform channel calibration every 12 months to ensure measurement accuracy meets API 670 industrial standards
• Clean dust inside the rack regularly to avoid poor contact caused by industrial dust and humidity

4.3 Common Fault Troubleshooting

• Signal drift: Check sensor wiring and grounding, confirm MPC4 channel configuration parameters
• Communication interruption: Check CPUM Ethernet link status, confirm protocol and address configuration
• False alarm: Verify threshold settings, troubleshoot on-site electromagnetic interference and sensor faults

5. Frequently Asked Questions (FAQ)

Q1: Can the CPUM and MPC4 modules be replaced without shutting down the entire VM600 system? A1: Yes. All VM600 series modules adopt a hot-swappable design. Replacing a single module will not affect the operation of other monitoring channels, greatly reducing equipment maintenance downtime.

Q2: What types of sensors are compatible with the MPC4 protection card? A2: The MPC4 card is compatible with IEPE piezoelectric accelerometers, eddy current proximity probes and magnetoelectric velocity sensors, covering mainstream industrial vibration and displacement monitoring sensor types.

Q3: Does the VM600 system integrate with existing DCS and SCADA systems? A3: Yes. The CPUM main processor supports standard industrial protocols including Modbus RTU, Modbus TCP and PROFINET, enabling seamless data interaction with mainstream DCS, PLC and SCADA systems.
