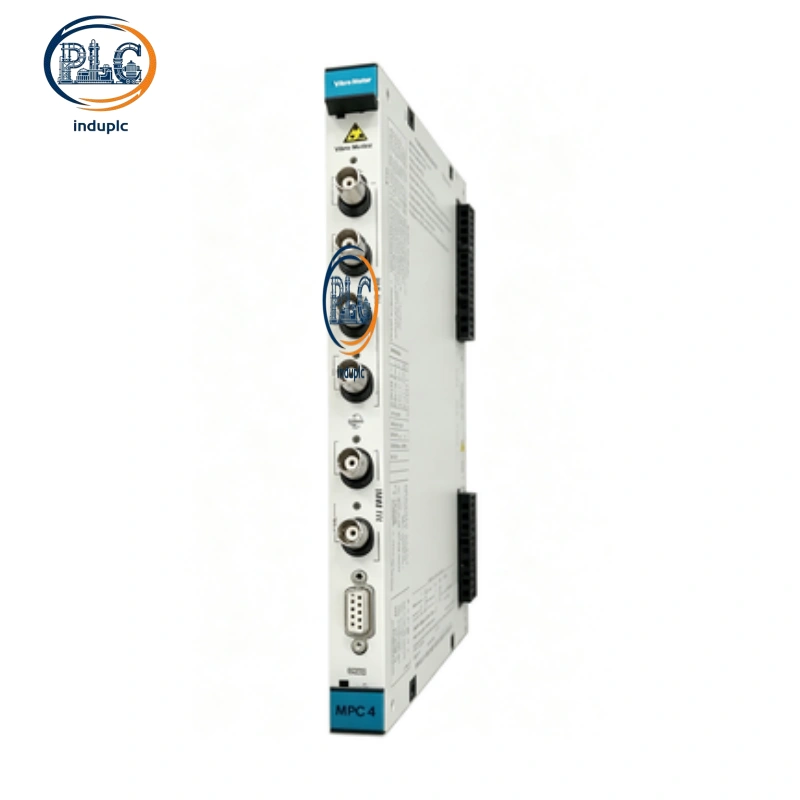

VIBRO-METER MPC4 200-510-076-114 VM600 Machinery Protection Card

VIBRO-METER MPC4 200-510-076-114 Protection Card

VIBRO-METER MPC4 200-510-076-114 delivers digital machinery protection for VM600 racks.

This DSP-based card processes vibration and speed data for rotating equipment.

VIBRO-METER MPC4 200-510-076-114 ensures reliable turbomachinery safety control.

Full Datasheet Technical Parameters

Channel & Signal Specifications

Dynamic Input Channels: 4 independent programmable signal input channels

Tachometer Speed Channels: 2 dedicated RPM monitoring input channels

Signal Resolution: 24-bit high precision digital signal conversion

Dynamic Measuring Range: Over 90 dB full scale signal coverage

Frequency Response: 0.1 Hz to 10 kHz flat operational bandwidth

Filter Slope Range: 6 dB/octave to 60 dB/octave configurable gradient

Out-of-Band Attenuation: Greater than 50 dB signal noise suppression

Amplitude Accuracy: ±1% full scale stable measurement precision

Linearity Error: Less than ±1% across entire measuring range

Electrical & Interface Specifications

Operating Supply Voltage: 24 V DC industrial standard power input

Signal Input Types: IEPE, proximity probe, velocity sensor compatible

Front Interface: BNC connector for raw signal inspection and analysis

Processing Core: High-speed DSP real-time data calculation unit

Alarm Thresholds: Dual upper and lower configurable safety levels

Mechanical & Environmental Specifications

Mounting Type: Hot-swappable 6U VM600 rack installation design

Module Weight: 0.32 kg lightweight industrial card structure

Operating Temperature: -20°C to +70°C continuous working range

Ambient Humidity: 0% to 90% non-condensing environmental rating

Certification Compliance: CE and industrial EMC standard approval

Core Functional Features

Multi-Functional Digital Signal Processing

Integrated DSP core executes real-time vibration and speed analysis tasks.

Programmable filters adapt to diverse industrial mechanical frequencies.

Simultaneous amplitude and phase tracking enhances fault detection.

Intelligent Protection & Diagnosis

Dual threshold alarms deliver graded equipment safety protection logic.

Built-in line fault detection identifies open and short circuit issues.

Enhanced self-test function ensures long-term operational reliability.

Flexible Industrial Compatibility

Multi-sensor compatibility matches common industrial monitoring probes.

Hot-swap design supports maintenance without system shutdown.

BNC front port simplifies on-site signal debugging and verification.

Industrial Monitoring Applications

Turbomachinery Safety Protection

The protection card monitors vibration for steam and gas turbine units.

The module tracks rotating speed and phase for generator equipment.

The unit triggers alarms to prevent mechanical overload failures.

Process Industry Predictive Maintenance

The card collects real-time data for industrial compressor systems.

The module analyzes mechanical oscillation for high-speed rotating assets.

The unit supports system integration with DCS and PLC platforms.
