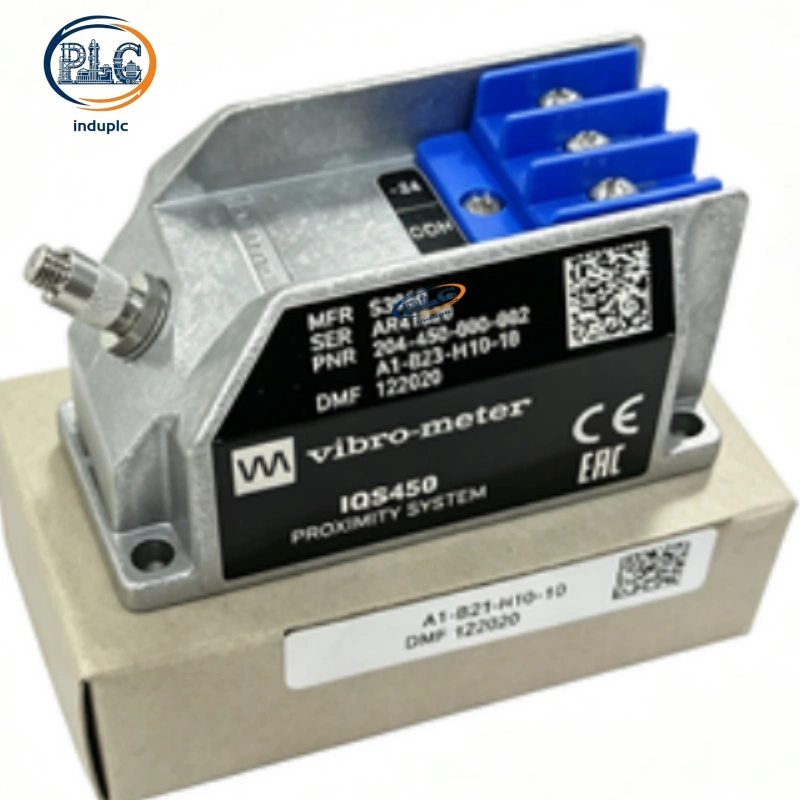

VIBRO-METER IQS450 204-450-000-002 A1-B21-H10-I0 Signal Conditioner

VIBRO-METER IQS450 204-450-000-002 Signal Conditioner

VIBRO-METER IQS450 204-450-000-002 processes eddy current sensor measurement signals.

This industrial signal conditioner outputs temperature-compensated displacement signals.

VIBRO-METER IQS450 204-450-000-002 matches standard proximity probe systems.

Full Datasheet Technical Parameters

Electrical & Performance Specifications

Supply Voltage: -20 V DC to -32 V DC industrial power input range

Dynamic Signal Range: 16 V full-scale linear signal processing range

Frequency Response: DC to 20 kHz flat bandwidth at -3 dB tolerance

Compatible Probe Range: 4 mm standard probe displacement measurement scale

Signal Output Mode: Configurable voltage and current dual signal output

Alarm Delay Range: 0 second to 255 seconds adjustable alarm trigger delay

Response Time: 0.1 second fast signal response for fault detection

Protection Design: Built-in short-circuit protection for output terminals

Temperature Calibration: Integrated automatic thermal compensation circuit

Mechanical & Environmental Specifications

Operating Temperature Range: -35°C to +85°C continuous working range

Certification Standard: IECEx and CE hazardous area compliance certificates

Applicable Equipment: Industrial eddy current proximity measurement systems

Core Functional Features

Precision Signal Calibration Performance

Automatic thermal compensation eliminates temperature-induced signal drift.

Full 20 kHz bandwidth captures dynamic mechanical vibration variations.

Adjustable alarm parameters adapt to diverse on-site protection logic.

Stable Industrial Circuit Structure

Short-circuit protection avoids circuit damage during signal faults.

Dual output modes support connection with various control systems.

Qualified explosion-proof design enables safe hazardous zone operation.

Industrial Monitoring Applications

Turbomachinery Condition Monitoring

The signal conditioner processes shaft displacement data from turbine probes.

The module converts high-speed rotor vibration signals in real time.

The unit supports threshold alarm for power generation machinery sets.

Process Industry Fault Prevention

The conditioner maintains stable signals in explosive industrial zones.

The module optimizes signal quality for long-distance field transmission.

The unit supports early fault warning for rotating process equipment.
