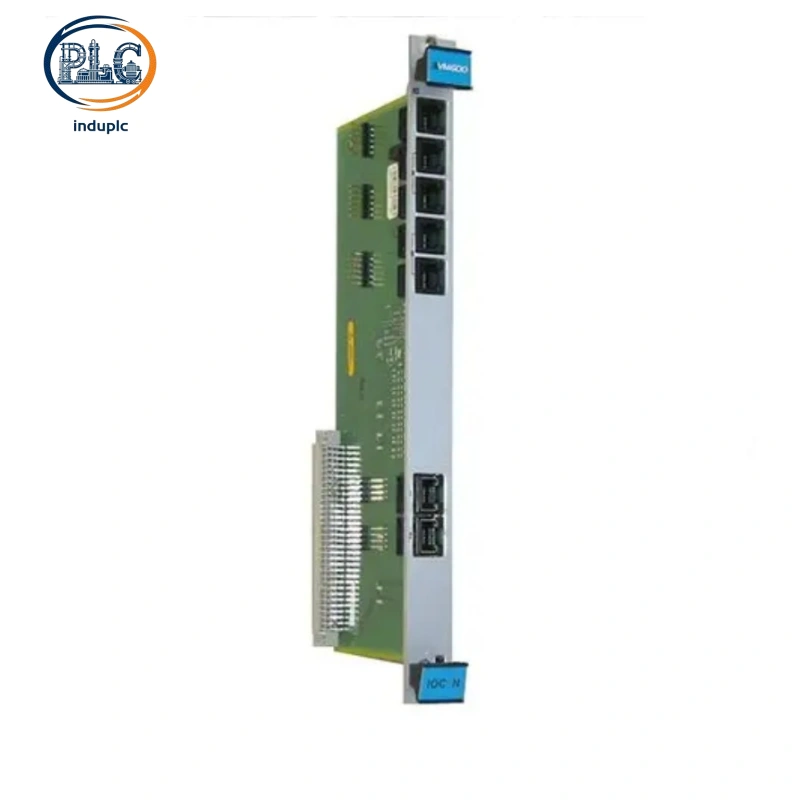

VIBRO-METER IOC16T 200-565-000-013 VM600 I/O Interface Card

VIBRO-METER IOC16T 200-565-000-013 I/O Interface Card

VIBRO-METER IOC16T 200-565-000-013 handles high-density industrial signal transmission tasks.

This multi-channel I/O card supports analog and digital signal conversion work.

VIBRO-METER IOC16T 200-565-000-013 matches standard VM600 rack systems.

Full Datasheet Technical Parameters

Channel & Signal Specifications

Total Channel Count: 16 independently configurable signal channels

Input Signal Type: Software selectable analog and digital signals

Analog Resolution: 12-bit high-precision signal conversion accuracy

Maximum Sampling Rate: 100 kHz fast signal collection frequency

Frequency Response: 10 Hz to 20 kHz flat signal bandwidth range

Signal Output Mode: Relay switching, 4-20 mA and digital output

Electrical Specifications

Operating Voltage: 24 V DC industrial standard power supply

Working Current: 150 mA rated continuous operating current

Communication Interfaces: Ethernet and RS485 dual signal ports

Data Transfer Rate: Up to 10 Mbps stable data transmission speed

Dielectric Isolation Voltage: 4000 V AC circuit isolation rating

Mechanical & Environmental Specifications

Module Dimensions: 165mm × 51mm standard rack card size

Module Weight: 0.1kg lightweight compact structural design

Operating Temperature: -20°C to +70°C continuous working range

Storage Temperature: -40°C to +85°C equipment storage tolerance

Certification Compliance: CE industrial electromagnetic compatibility

Core Functional Features

High-Density Multi-Channel Signal Processing

Sixteen independent channels support multi-point signal acquisition.

Software-configurable modes adapt to various field signal types.

High sampling rate captures fast dynamic mechanical signal changes.

Stable Industrial Circuit Performance

Dual communication ports ensure flexible industrial network access.

High dielectric isolation prevents external circuit interference.

Compact structure fits limited rack installation space conditions.

Industrial Monitoring Applications

VM600 Machinery Protection System Matching

The I/O card collects signals from turbine vibration sensors.

The module processes data from proximity probes and accelerometers.

The unit supports signal switching for equipment protection logic.

Process Industry System Integration

The card transmits field data to DCS and PLC control systems.

The module enables long-term multi-point equipment status monitoring.

The unit assists real-time fault diagnosis for rotating machinery.
