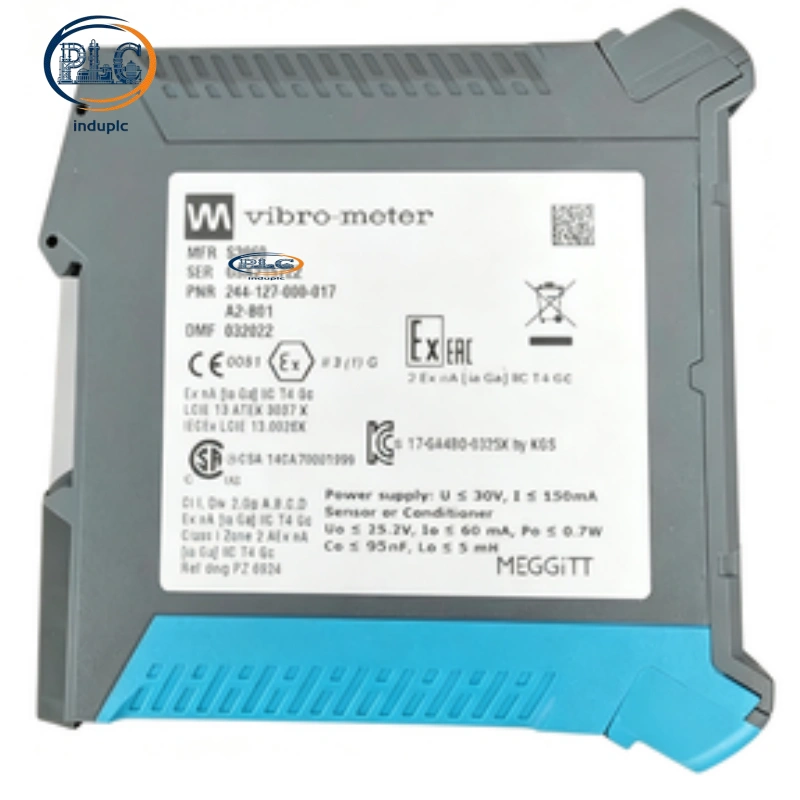

VIBRO-METER GAI127 244-127-000-017 A2-B01 Galvanic Isolation Unit

VIBRO-METER GAI127 244-127-000-017 Galvanic Isolation Unit

VIBRO-METER GAI127 244-127-000-017 isolates industrial sensor signal circuits.

This isolation unit stabilizes transmission for vibration measurement signals.

VIBRO-METER GAI127 244-127-000-017 matches hazardous area monitoring setups.

Core Functional Features

High-Isolation Circuit Protection Design

Built-in isolation structure blocks cross-circuit signal interference.

4kV isolation rating secures sensor and monitor side circuit paths.

Floating output eliminates ground loop induced signal errors.

Intrinsic Safety Adaptability

Certified structure supports Ex Zone 0 and Ex Zone 2 deployment.

Module design removes extra Zener barrier installation requirements.

Standard circuit layout fits vibration measurement chain systems.

Full Datasheet Technical Parameters

Electrical Specifications

Input Voltage Range: 18 V DC to 30 V DC industrial power supply

Sensor Side Isolation: 4000 V RMS dielectric isolation capacity

Output Side Isolation: 50 V RMS floating signal isolation level

Signal Bandwidth: 0.1 Hz to 2000 Hz stable transmission range

Operating Current: Low consumption steady current operation mode

Mechanical Specifications

Mounting Type: Standard 35mm DIN rail modular installation

Module Dimensions: 22mm × 115mm × 118mm overall size

Unit Weight: 0.15kg lightweight compact module structure

Environmental Specifications

Operating Temperature: -20°C to +60°C continuous working range

Ambient Humidity: 0% to 90% non-condensing environmental level

Hazardous Certification: Ex nA Zone 2 intrinsic safety approval

Industrial Monitoring Applications

Vibration Measurement Chain Configuration

The isolation unit conditions signals from piezoelectric sensors.

The module stabilizes output for eddy current probe assemblies.

The unit matches signal conditioner and charge amplifier hardware.

Process Industry Hazardous Zone Operation

The device protects monitoring circuits in chemical production zones.

The assembly ensures safe signal transmission for gas industry assets.

The module supports continuous turbomachinery protection system runs.
