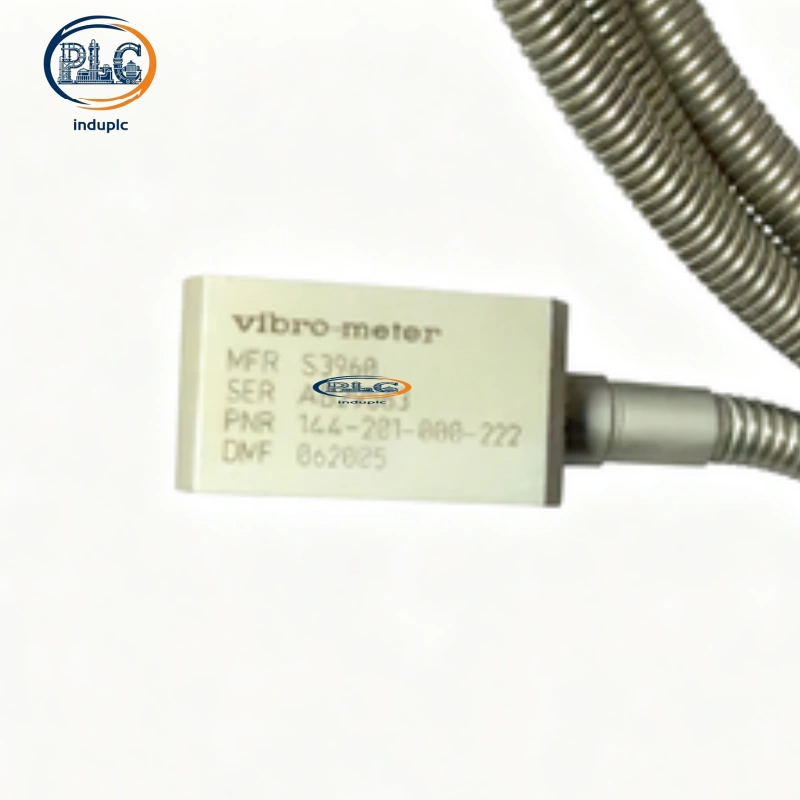

VIBRO-METER CA201 144-201-000-222 Piezoelectric Accelerometer Vibration Sensor

VIBRO-METER CA201 144-201-000-222 Piezoelectric Accelerometer

VIBRO-METER CA201 144-201-000-222 captures precise industrial vibration data.

This piezoelectric accelerometer supports continuous mechanical vibration testing.

VIBRO-METER CA201 144-201-000-222 fits heavy-duty industrial monitoring systems.

Full Datasheet Technical Parameters

Electrical & Performance Specifications

Nominal Sensitivity: 100 pC/g ±5% at 120 Hz

Resonant Frequency: 11 kHz nominal mounted frequency

Transverse Sensitivity: ≤5% standard industrial tolerance

Mechanical & Environmental Specifications

Overload Capacity: 250 g peak transient shock resistance

Shock Survival: 1000 g peak at 1 millisecond duration

Operating Temperature: -54°C to +260°C continuous working range

Base Strain Effect: 0.15 × 10⁻³ g/µε standard rating

Signal Stability: ±0.5% deviation per annual operation cycle

Industrial Monitoring Applications

Rotating Machinery Vibration Testing

The accelerometer records vibration data for industrial turbine units.

The device tracks mechanical oscillation for large compressor assemblies.

The sensor captures vibration signals for industrial generator equipment.

Industrial Predictive Maintenance Operations

The unit supports real-time condition tracking for production machinery.

The transducer detects abnormal vibration for early fault diagnosis.

The module enables long-term health monitoring for factory assets.

Core Functional Features

High Precision Measurement Output

Symmetrical shear mode element ensures stable signal acquisition.

Wide frequency coverage meets diverse industrial testing demands.

Low linearity error maintains accuracy across full measurement range.

Harsh Environment Adaptability

Stainless steel housing enhances mechanical structural durability.

Extended temperature range supports extreme onsite working conditions.

High shock resistance withstands sudden mechanical impact loads.
