1. Core Technical Parameters

Backplane Supply：24 VDC

Bus Protocol：PROFIBUS DP Class 1 Master

Max Slave Devices：126 units

Transfer Rate：9.6 kbps ~ 12 Mbps

Interface Option：RS-485 electrical / FOVIS fiber

Operating Temp：0℃ ~ +50℃

Feature Support：Hardware redundancy & hot swap

2. Compatibility & Expandability

Same-brand Compatibility

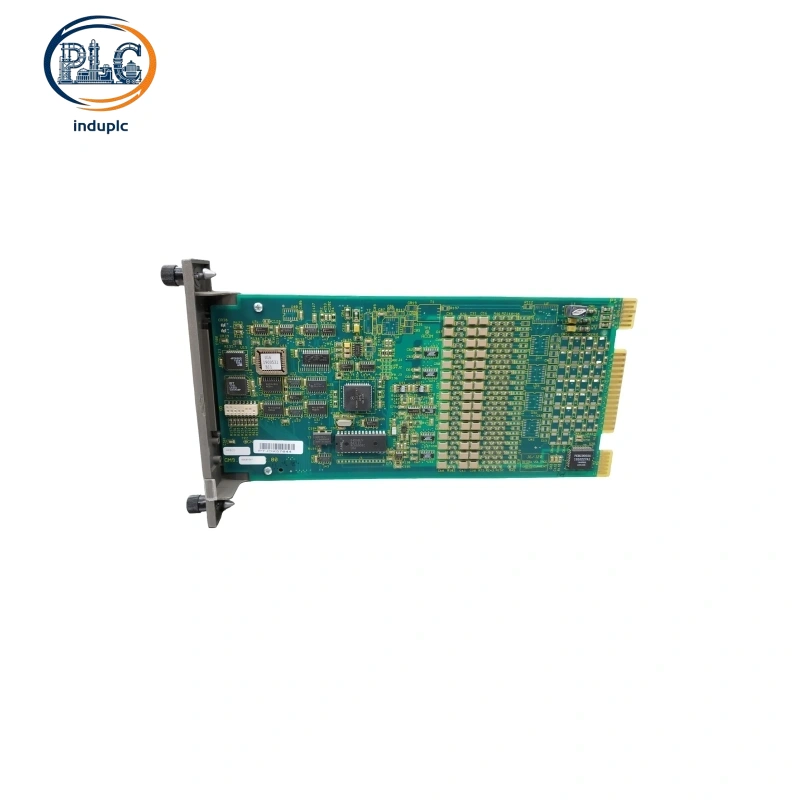

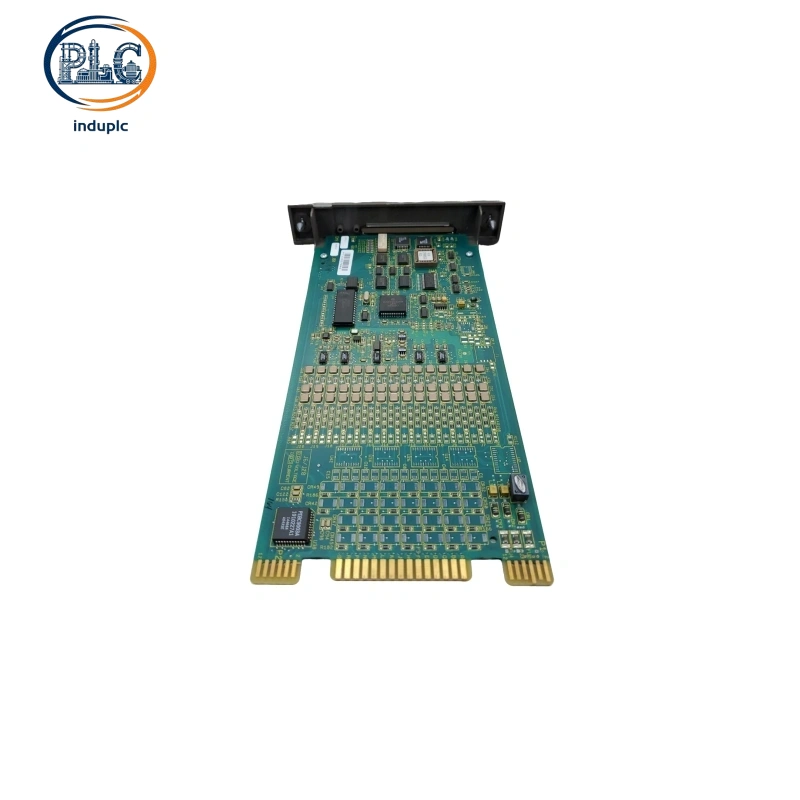

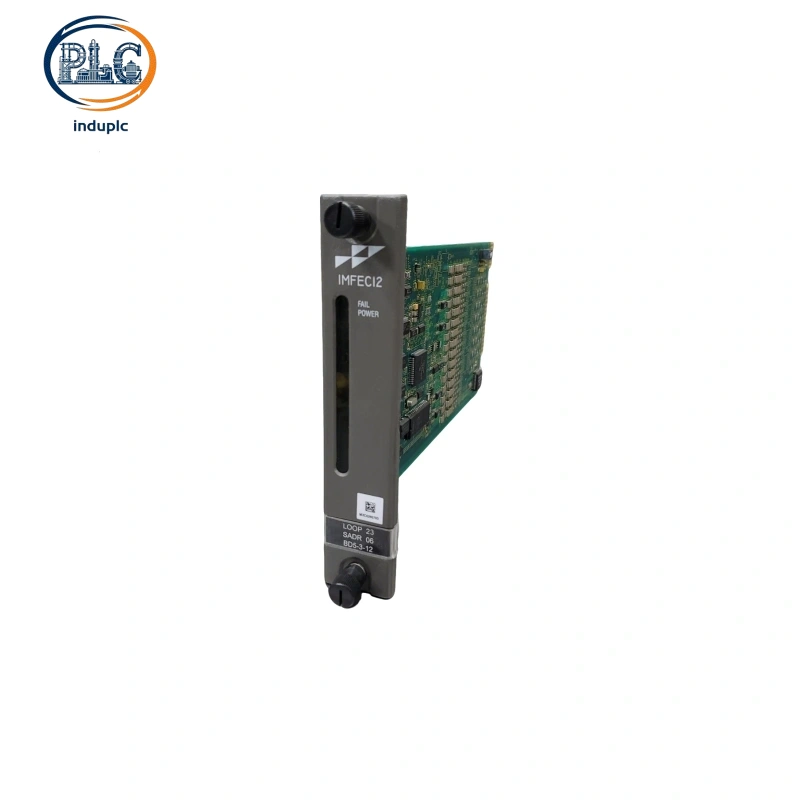

ABB IMFEC12 serves as core PROFIBUS master card matched with ABB AC800M DCS rack platform. Process automation technicians install multiple ABB IMFEC12 on rack backplanes to construct redundant bus loops for uninterrupted chemical and power production lines. ABB IMFEC12 inserts dedicated AC800M card slots and transmits deterministic process data with ABB PM8xx CPU modules and full S800 I/O series without extra signal conversion terminal boards. Front-panel address coding settings help ABB IMFEC12 maintain stable data exchange with factory-installed ABB transmitters and variable frequency drives.

Cross-brand Compatibility

Exclusive AC800M internal backplane communication protocol blocks direct data linkage of ABB IMFEC12 to non-ABB main control hardware. Separate protocol conversion gateways become mandatory to build communication channels connecting ABB IMFEC12 with Siemens or Schneider PLC hosts. Standardized PROFIBUS DP international specifications allow ABB IMFEC12 to read measurement feedback from most third-party field instruments, no internal circuit rework required.

3. Lifecycle Cost Analysis

Service cycle of ABB IMFEC12 is fixed at 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost accounting

Annual routine maintenance cost: Bus line signal inspection and internal dust clearance for ABB IMFEC12 costs 38 USD per year, total 10-year maintenance expense: 380 USD

Spare part replacement cost: Main communication chip failure of ABB IMFEC12 generally takes place once every 7 years, single spare module price: 475 USD, total replacement expense within 10 years: 475 USD

Retrofit expense saving: Original cabinet wiring layout fully fits ABB IMFEC12 during system modernization, saving 302 USD extra construction labor cost compared with incompatible substitute PROFIBUS master adapters

Total cumulative running cost for single ABB IMFEC12 across ten service years: 553 USD
