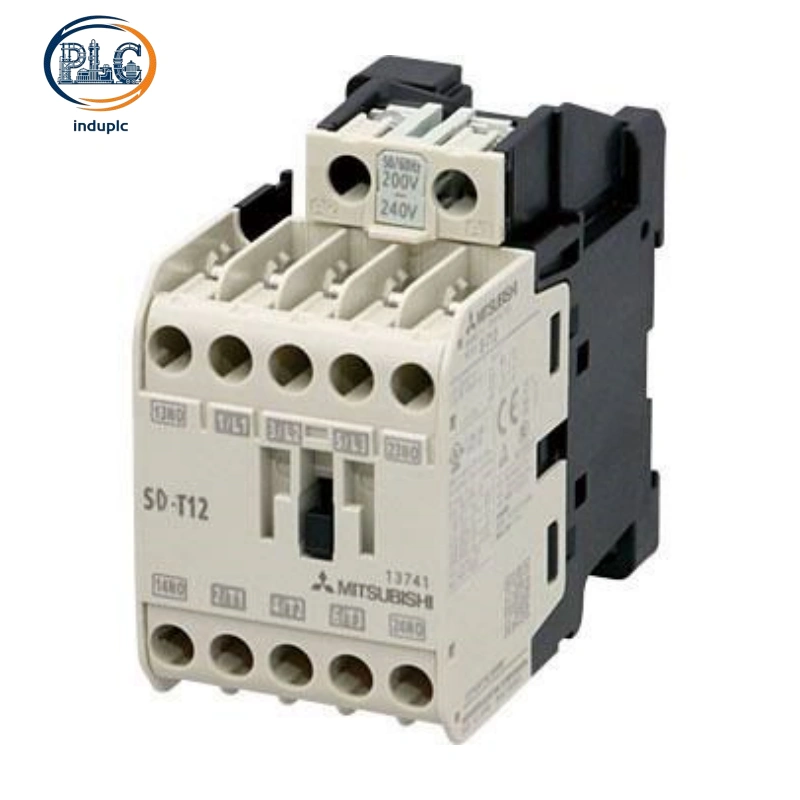

Mitsubishi SD-T12DC 24V DC Contactor, 3Pole 12A 690V DIN Rail Magnetic Switch

Mitsubishi SD-T12DC 24V DC Contactor

Mitsubishi SD-T12DC 24V is a compact dc coil contactor for industrial motor control systems.

This Mitsubishi SD-T12DC 24V magnetic contactor ensures stable cabinet circuit switching.

This Mitsubishi SD-T12DC 24V magnetic contactor ensures stable circuit switching.

Reasons to Pick Mitsubishi SD-T12DC 24V

DC coil structure eliminates hum noise from traditional industrial contactor models.

Slim 45mm housing saves valuable space in compact automation panel layouts.

Standard din rail mounting speeds up panel assembly and component replacement.

Low coil power consumption optimizes 24V DC industrial power switching loops.

Slim 45mm housing saves valuable space in compact automation panel component layouts.

Standard din rail mounting speeds up panel assembly and part replacement work.

Low coil power consumption optimizes 24V DC industrial power switching relay loops.

Core Technical Specifications

Electrical Ratings

Coil voltage: 24V DC

Rated operational current: 12A

Main poles: 3-pole

Rated operational voltage: 690V AC

Insulation voltage: 690V

AC-3 power rating: 5.5kW at 400V

Mechanical & Physical Data

Mounting type: DIN rail mounting

Mechanical endurance: 10,000,000 operations

Operating temperature range: -25°C to +60°C

Width: 45mm

Weight: 230g

Primary Application Scenarios

Mitsubishi SD-T12DC 24V delivers reliable motor switching contactor performance.

This Mitsubishi SD-T12DC 24V unit acts as a precise motor control switch in PLC cabinets.

It supports stable load switching for packaging and material handling machinery systems.

This Mitsubishi SD-T12DC 24V unit acts as a precise motor control switch in PLC cabinets.

It supports stable load switching for packaging and material handling machinery systems.

Compatible Accessories & Replacement Notes

Auxiliary contact blocks fit the standard footprint of Mitsubishi SD-T series units.

Surge suppressors protect coils from transient industrial voltage spikes.

Confirm coil voltage before replacement to avoid permanent component damage.

Pair Mitsubishi SD-T12DC 24V with thermal relays for comprehensive motor overload protection.
