1. Core Technical Parameters

Supply Voltage：24 VDC

Digital I/O Layout：16DI + 16DO

Input Signal Spec：24VDC sink/source

Output Load Capacity：0.5A per channel

Galvanic Isolation：500 VAC group isolation

Operating Ambient Temp：-20℃ ~ +60℃

Mounting Standard：DIN rail TS35

2. Compatibility & Expandability

Same-brand Compatibility

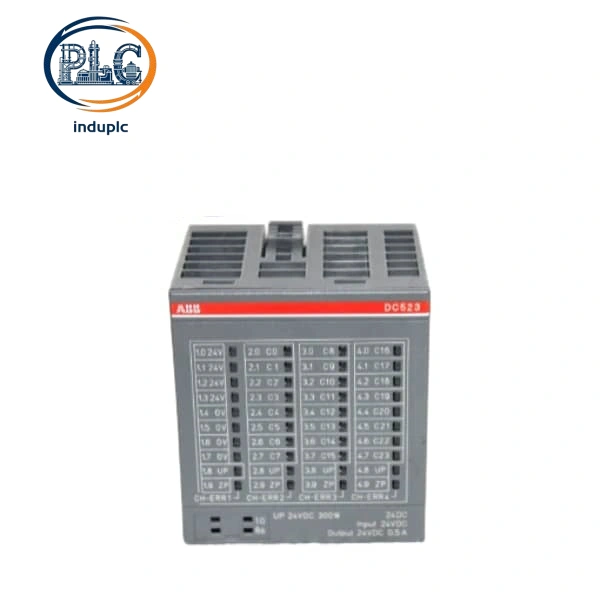

ABB DC523 belongs to ABB AC500 PLC modular hardware series. Workshop automation fitters mount multiple ABB DC523 onto CPU base racks to expand digital signal terminals for packaging and logistics automation lines. ABB DC523 snaps straight onto AC500 rack backplanes and conducts signal interaction with ABB PM5xx series CPU units without extra terminal transfer adapters. Hardware address coding on module front covers allows ABB DC523 to coordinate stable signal transmission with ABB local push-button stations and contactor actuators.

Cross-brand Compatibility

Proprietary AC500 internal rack bus restricts direct hardware linkage of ABB DC523 with third-party main controllers. External protocol conversion modules become essential to build data channels connecting ABB DC523 to Siemens and Schneider PLC hosts. Standard 24V digital signal norms support ABB DC523 to receive and output signals for most aftermarket proximity sensors and external relays, no internal circuit modification required.

3. Lifecycle Cost Analysis

Service cycle of ABB DC523 is fixed at 10 years, exchange rate:1USD=7.2CNY, purchase and installation charges are excluded from all accounting calculations

Annual routine maintenance cost: Channel continuity test and internal dust clearance for ABB DC523 costs 25 USD per year, total 10-year maintenance cost: 250 USD

Spare part replacement cost: Channel drive circuit damage of ABB DC523 generally emerges once every 8 years, single spare module price: 345 USD, total replacement expense within 10 years: 345 USD

Retrofit expense saving: Existing field wiring harness fully fits ABB DC523 during cabinet renovation works, saving 192 USD extra construction labor cost compared with mismatched alternative I/O modules

Total cumulative operating cost for single ABB DC523 over its 10-year service lifespan: 403 USD
