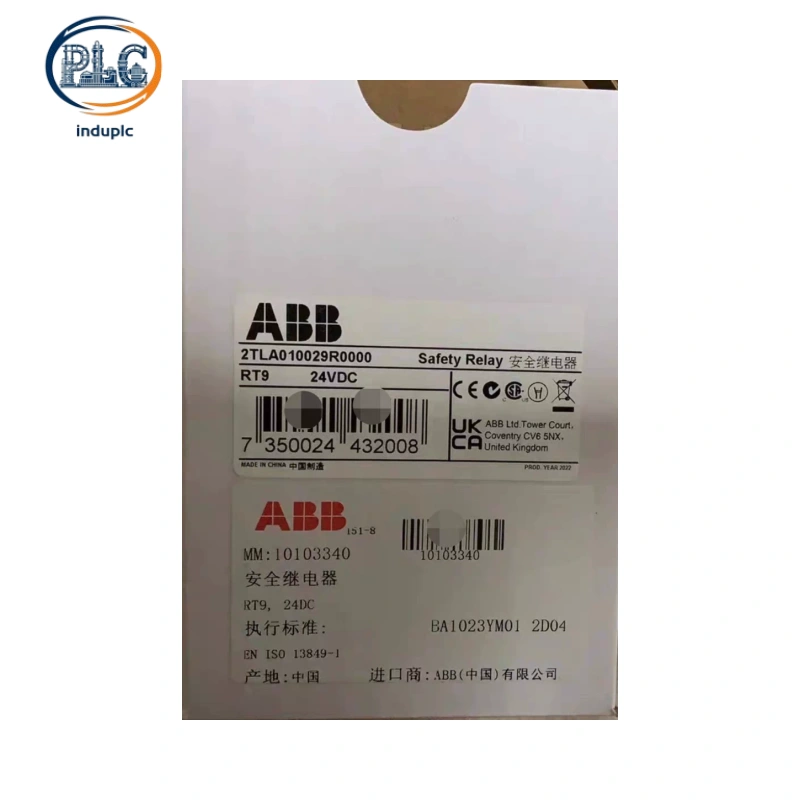

ABB RT9 2TLA010029R0000 Safety Relay, 24VDC 2NO PL e SIL3

1. Product Overview

The ABB RT9 2TLA010029R0000 is a high-performance compact safety relay developed by ABB Jokab Safety, specially designed for industrial machinery safety control systems. Featuring a slim 22.5mm narrow-body housing, this modular safety control unit integrates reliable signal detection and safety output functions, complying with global mainstream machinery safety regulations. With a standard 24VDC power supply, dual-channel safety signal monitoring and 2 normally open safety outputs, the module delivers excellent safety integrity, reaching PL e, Category 4 and SIL3 safety levels. It is widely applicable to various mechanical equipment safety protection scenarios in manufacturing, petrochemical, power and automation industries, providing stable and reliable safety interlock protection for automated production equipment.

2. Complete Technical Specifications

2.1 Electrical Performance Parameters

This ABB RT9 safety relay adopts DC 24V rated working voltage with a rated power consumption of only 2W, featuring low energy consumption and energy-saving operation. It is equipped with two completely independent safety NO output contacts, with a maximum rated load current of 6A under 250VAC working conditions, which can meet the driving requirements of most industrial contactors and electromagnetic valves. The product supports dual-channel safety signal input, with accurate signal acquisition and fast response speed. With a mechanical service life of more than 10 million switching cycles and electrical service life of millions of times, it can adapt to long-term uninterrupted industrial operation and effectively reduce equipment failure rate.

2.2 Safety Standard Certification

The ABB RT9 2TLA010029R0000 safety relay has passed authoritative international safety certification. It fully complies with ISO 13849-1 machinery safety standards, reaching the highest performance level PL e and safety category Category 4. In addition, it meets IEC 61508 functional safety standards and achieves SIL3 safety integrity level. All safety indexes are strictly tested and verified, which can effectively eliminate potential safety hazards such as equipment malfunction and accidental startup, and is suitable for high-standard safety protection occasions of key industrial equipment.

2.3 Mechanical and Environmental Parameters

The module adopts standard 35mm DIN rail mounting design, which is convenient for rapid installation and layout in industrial control cabinets, saving cabinet space and optimizing wiring layout. The front panel is designed with IP40 protection grade, which can effectively resist dust and slight splash interference in conventional industrial environments. The applicable working temperature range is -10°C to +55°C, adapting to most indoor industrial production environments. Equipped with detachable screw terminal ports, the wiring process is simple and standardized, which greatly improves on-site construction efficiency and later equipment maintenance and replacement speed.

3. Core Product Features and Advantages

3.1 Ultra-Wide Compatibility with Safety Devices

The ABB RT9 safety relay supports access to almost all mainstream industrial safety field devices, with extremely strong equipment compatibility. It can be perfectly matched with emergency stop push buttons, safety door interlock switches, safety light curtains, safety protection mats and safety edge strips to form a complete machinery safety protection system. The built-in high-precision dual-channel detection mechanism can automatically monitor line open circuit, short circuit and abnormal signal faults in real time. Once line failure or signal abnormality is detected, the relay will quickly cut off the output signal to lock the equipment operation state, thoroughly avoid accidental startup of mechanical equipment and ensure on-site personnel and equipment safety.

3.2 Flexible and Diversified Working Modes

This safety relay supports two optional reset modes: automatic reset and supervised manual reset. Users can freely switch the working mode through simple terminal wiring adjustment to meet the safety control requirements of different types of mechanical equipment. The front panel is equipped with high-brightness LED indicator lights, which respectively display power supply status, safety input signal status and relay output working status. The working state is clear at a glance, which is convenient for on-site staff to quickly judge equipment operation faults and realize rapid troubleshooting. The diversified configuration design unifies the safety control standards of multiple equipment, reduces the types of spare parts for system integration, and effectively reduces enterprise inventory cost and equipment maintenance cost.

3.3 High Stability and Low Failure Rate

Adopting industrial-grade original chips and high-quality insulating materials, the product has strong anti-electromagnetic interference ability and can resist complex electromagnetic interference in industrial sites. The internal circuit structure is optimized and upgraded, with stable signal transmission and no delay or distortion of safety signals. The compact integrated structure effectively avoids equipment failure caused by loose parts and circuit aging. It can maintain stable and consistent safety performance during long-term continuous operation, greatly improving the overall operation reliability of the automation system.

4. Industrial Application Scenarios

The ABB RT9 2TLA010029R0000 safety relay is widely used in various industrial automation machinery safety protection fields. It is suitable for safety interlock control of automated production lines, stamping equipment, cutting machinery, conveying equipment and packaging equipment in manufacturing industry. In petrochemical, new energy and power industries, it is used for safety monitoring and protection of large rotating machinery and automated control equipment. At the same time, it is also applicable to safety system transformation and safety function upgrading of old industrial equipment, helping enterprises meet international machinery safety production standards and realize standardized and safe production operation.
