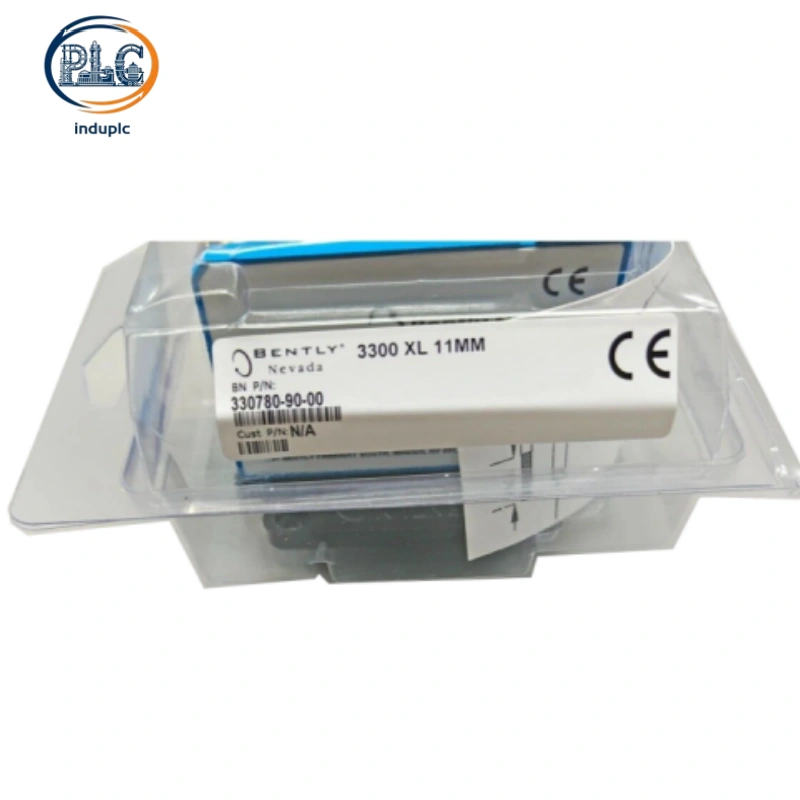

Bently Nevada 330780-90-00 3300 XL Proximitor Sensor, 9m Panel Mount 11mm

Bently Nevada 330780-90-00 3300 XL 11mm Proximitor Sensor

Order Code Interpretation

330780

Base 3300 XL series proximitor sensor, compatible with 11mm eddy-current probe systems for industrial non-contact vibration and position measurement.

90

Defines 9-meter full system length and standard panel mount structure, designed for long-distance fixed cabinet installation layouts.

00

Standard factory configuration without custom modifications, delivering universal performance for standard machinery monitoring systems.

Datasheet Core Technical Parameters

Bently Nevada 330780-90-00 features 3.94 V/mm fixed sensitivity with 0.5mm to 4.5mm linear measurement range. The sensor accepts -17.5 Vdc to -26 Vdc power input with 12mA maximum operating current. It supports 0Hz to 10kHz frequency response and operates stably within -35°C to +85°C temperature range, meeting API 670 industrial monitoring standards.

Core Selection Advantages

Integrated 9m System Length Ensures Signal Integrity

Bently Nevada 330780-90-00 adopts factory integrated 9-meter cable structure. No on-site cable splicing is required, effectively avoiding high-frequency signal attenuation and distortion. Stable signal transmission supports remote cabinet monitoring in large industrial plants.

Reliable Panel Mount Structure for Fixed Installation

Bently Nevada 330780-90-00 uses professional panel mounting design. The compact structure fits standard control cabinet installation, resists long-term workshop vibration and temperature fluctuation, and reduces daily equipment maintenance frequency.

Industrial Application Scenarios

Turbine Vibration and Thrust Monitoring

Bently Nevada 330780-90-00 performs non-contact detection for steam turbine radial vibration and thrust position changes. Accurate real-time data provides reliable basis for equipment alarm and protection trip control.

Reciprocating Compressor Condition Monitoring

This sensor supports compressor rod drop measurement and keyphasor signal collection. Continuous monitoring captures early mechanical wear, effectively avoiding unplanned shutdowns in petrochemical and power production lines.
