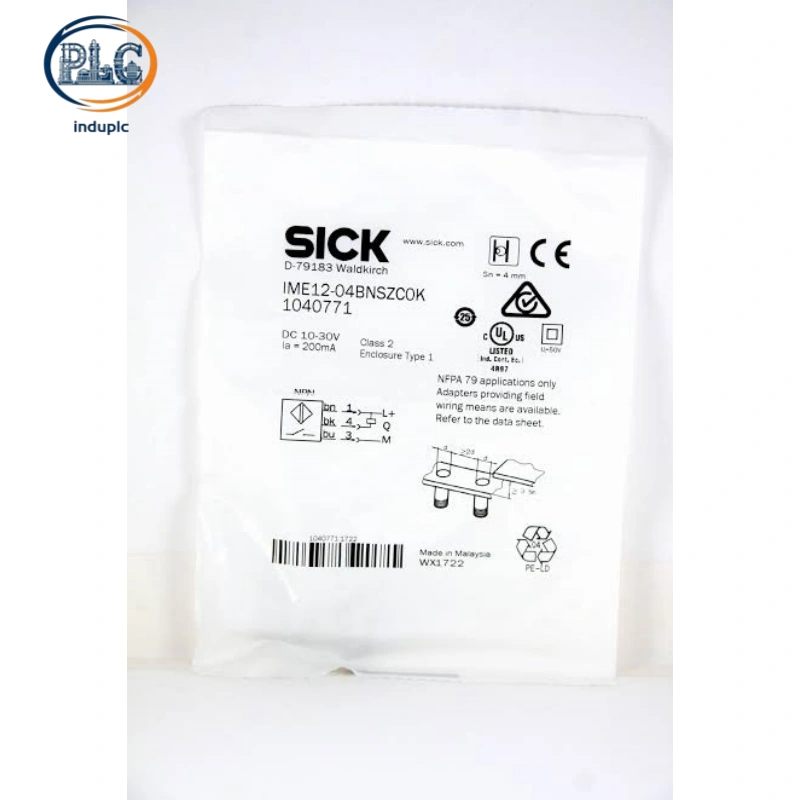

SICK IME12‑04BNSZCOK Inductive Proximity Sensor, M12 Thread 4 mm Flush Range NPN NC M12 Connector IP67 2kHz Industrial Metal Sensor

SICK IME12‑04BNSZCOK M12 Flush-Mount NPN NC Inductive Proximity Sensor for Industrial Position Monitoring

Flush Sensing Design & Detection Accuracy

4 mm Standard Flush Mount Sensing Range

SICK IME12‑04BNSZCOK supports 4 mm nominal flush-mount detection distance, enabling fully embedded installation into metal surfaces. The flush layout eliminates protruding sensor exposure, avoiding mechanical collision and abrasion in compact machinery. Optimized inductive coil structure maintains consistent detection accuracy even when surrounded by metal components.

Stable Metal Target Exclusive Detection

This SICK IME12‑04BNSZCOK inductive sensor only triggers on metallic objects, ignoring non-metallic dust, plastic parts and packaging residues. Target-specific detection removes false signal interference in complex workshop environments. High detection repeatability ensures reliable position feedback for precision mechanical motion control.

Unique Electrical Logic & Operational Stability

NPN Normally Closed Output Characteristic

SICK IME12‑04BNSZCOK adopts NPN normally closed switching logic, keeping signal conduction under standby status and cutting off when detecting metal targets. This fail-safe output mode fits safety interlock and protection monitoring circuits. Standard 200 mA load capacity matches common industrial NPN-type PLC input modules and control terminals.

2kHz Switching Frequency & Complete Circuit Protection

With 2kHz rated switching frequency, SICK IME12‑04BNSZCOK adapts to medium-speed mechanical cyclic detection demands. Built-in short-circuit protection, reverse polarity protection and power-up pulse suppression safeguard internal circuits. Reliable electrical design prevents signal distortion and equipment damage caused by on-site wiring errors or voltage fluctuations.

Universal DC Power Compatibility

SICK IME12‑04BNSZCOK operates steadily on 10 V to 30 V DC industrial power supply. Low no-load current consumption reduces long-term power load for automation systems. Fixed electrical parameters ensure seamless matching with standard factory power distribution and control loop configurations.

Connector-Type Mechanical Structure & Installation Benefits

M12 4-Pin Plug Connection Layout

Different from cable-type sensors, SICK IME12‑04BNSZCOK adopts M12 4-pin male connector design. Plug-and-play connection simplifies on-site wiring and accelerates sensor replacement during maintenance. The connector structure avoids cable aging and breakage caused by long-term mechanical bending and friction.

Durable Nickel-Plated Brass Housing

SICK IME12‑04BNSZCOK features M12×1 threaded cylindrical housing made of premium nickel-plated brass. The rigid metal body resists surface corrosion and mechanical wear, while PA66 plastic sensing face ensures stable inductive signal transmission. Standard thread size and matched mounting nuts support universal industrial fixture installation.

Harsh Environment Adaptability & Structural Durability

IP67 Industrial Ingress Protection

Fully sealed housing endows SICK IME12‑04BNSZCOK with reliable IP67 dustproof and waterproof performance. The sensor resists workshop dust accumulation, debris intrusion and accidental water splashes, adapting to indoor factory and semi-outdoor mechanical equipment operation scenarios. Sealed internal structure extends overall service life.

Wide Temperature & Vibration Resistance

SICK IME12‑04BNSZCOK works stably within -25 °C to +75 °C wide ambient temperature range, tolerating seasonal temperature changes and equipment heat radiation. Reinforced internal structure withstands 30g impact force and continuous mechanical vibration, maintaining stable detection performance in long-cycle production operations.

Procurement Value & Spare Part Standardization

Fail-Safe Circuit Matching Advantage

The NC output logic of SICK IME12‑04BNSZCOK fills specialized safety monitoring circuit demands. It serves as a dedicated replacement model for normally closed inductive sensors in safety interlock systems. Unified IME series specifications reduce spare-part model types and simplify factory inventory management.

Low-Maintenance Industrial Grade Solution

Rugged mechanical structure, stable electrical performance and strong anti-interference capability enable SICK IME12‑04BNSZCOK to support long-term continuous operation. Zero routine calibration requirements lower on-site maintenance workload. Cost-effective durability makes it ideal for large-scale deployment in standardized industrial automation lines.

Specialized Industrial Application Scenarios

Mechanical Safety Interlock Monitoring

Equipment door safety detection, mechanical limit protection and emergency interlock control are core applications for SICK IME12‑04BNSZCOK. NC fail-safe logic ensures system alarm and protection activation once sensor failure or target abnormality occurs, improving overall equipment operational safety.

Medium-Speed Automation Position Control

Automated machinery stroke confirmation, tool reset detection and conveyor metal part presence monitoring fully utilize this sensor’s stable performance. Flush mounting design adapts to compact mechanical structures, suitable for packaging machinery, assembly equipment and industrial auxiliary automation systems.
