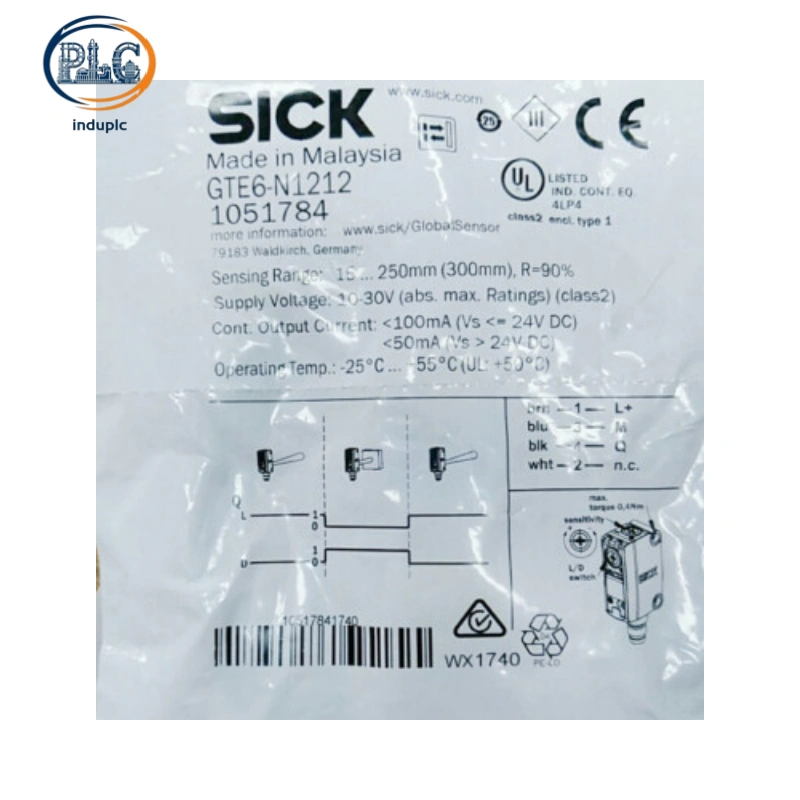

SICK GTE6‑N1212 Energetic Diffuse Photoelectric Sensor, NPN Output 250 mm Adjustable Range IP67 2m Cable G6 Industrial Sensor

SICK GTE6‑N1212 Adjustable Energetic Diffuse Sensor for Standard Industrial Automation

Field Compatibility & Spare Part Procurement Benefits

Universal G6 Series Standardized Specifications

SICK GTE6‑N1212 adheres to unified dimensional and electrical standards of the SICK G6 sensor lineup. Standard mounting spacing and 3-wire cable layout enable direct drop-in replacement for outdated miniature diffuse sensors. Consistent factory calibration eliminates on-site parameter resetting, cutting maintenance downtime and simplifying factory spare part inventory management.

Flexible Logic Adaptability for Diverse Processes

Equipped with physical light/dark switching selector, SICK GTE6‑N1212 adapts to varied on-site trigger requirements. The dual-mode design removes the need to stock separate light-on and dark-on sensor models. Project integrators deploy this single SICK GTE6‑N1212 unit across multiple production stations to unify equipment specifications and reduce procurement costs.

Optical Sensing Performance & Detection Characteristics

Energetic Diffuse Sensing Principle

SICK GTE6‑N1212 adopts classic energetic diffuse detection technology, integrating transmitter and receiver within one compact housing. The sensor detects target objects by receiving reflected light from object surfaces, requiring no reflector or paired receiver. This standalone structure delivers flexible installation for unstructured detection scenarios compared with through-beam sensor sets.

Precision Adjustable Sensing Range & Visible Alignment

A 5-turn mechanical spindle supports manual range tuning for SICK GTE6‑N1212, covering a maximum 250 mm sensing distance. Built-in red PinPoint LED generates a clear 7mm light spot at 90mm distance, enabling intuitive visual alignment during installation. Accurate range calibration avoids over-sensing and ensures targeted object detection for medium-short distance automation tasks.

Electrical Parameters & Operational Stability

DC Power & NPN Switching Output

SICK GTE6‑N1212 operates on universal 10 V to 30 V DC industrial voltage, matching standard factory power systems. The NPN open-collector output provides stable switching signals with 100 mA maximum load current, compatible with mainstream PLC input modules. Steady electrical output guarantees reliable signal transmission during continuous operational cycles.

Fast Switching Response & Multi-Layer Circuit Protection

SICK GTE6‑N1212 supports 500 Hz switching frequency and rapid response speed, adapting to medium-speed automated production lines. Integrated short-circuit protection, reverse polarity protection and overload prevention shield internal circuits from wiring errors and voltage fluctuations. Robust circuit design maintains stable performance under daily industrial power variations.

Mechanical Structure & Environmental Durability

Durable Compact Housing & Fixed Cable Layout

Constructed with high-strength ABS/PC composite material, SICK GTE6‑N1212 features a lightweight rectangular housing suitable for narrow machine mounting spaces. The 2-meter fixed 3-core PVC cable enables fast wiring without extra adapters. Matched stainless steel mounting bracket enhances installation firmness against long-term equipment vibration.

IP67 Protection & Wide Temperature Adaptation

IP67 full sealing rating protects SICK GTE6‑N1212 from industrial dust, debris and accidental water splashes. The sensor operates stably within -25 °C to +55 °C ambient temperature range, adapting to fluctuating indoor workshop environments. Vibration-resistant structural design supports 24/7 long-term continuous production operation.

Core Industrial Application Scenarios

Conveyor & Logistics Automation Monitoring

SICK GTE6‑N1212 excels at conveyor line object presence detection, product counting and logistics sorting station gap monitoring. The adjustable sensing range fits different product sizes and installation distances. Stable diffuse detection performance ensures reliable identification of regular-shaped industrial products and packaging materials.

Assembly & Packaging Machinery Detection

Automated assembly station part confirmation, packaging machine material feeding monitoring and equipment position verification are core application scenarios for SICK GTE6‑N1212. Compact housing adapts to dense mechanical layouts, and flexible switching logic meets diverse process trigger standards for light industrial automation production.
