1. Core Technical Parameters

Supply Voltage：24 VDC

Communication Channel：Dual redundant PROFIBUS-DP

Supported Station Quantity：125 max

Isolation Withstand Voltage：2500 VAC

Operation Ambient Temp：-20℃ ~ +70℃

Mounting Carrier：S800 series rack backplane

Shell Protection Class：IP20

2. Compatibility & Expandability

Same-brand Compatibility

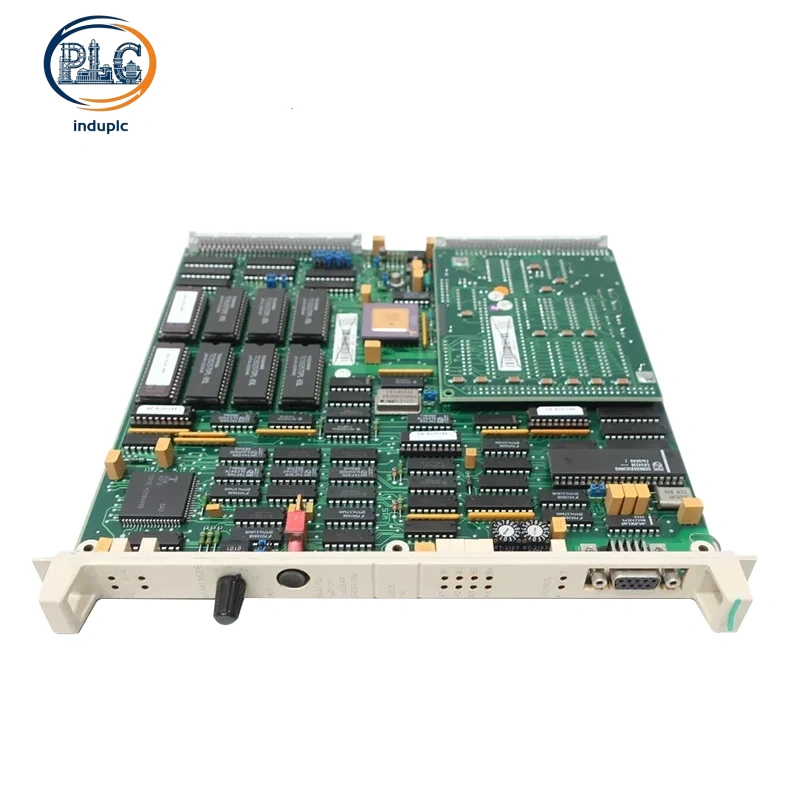

ABB DSCS140 is a redundant bus adapter designed exclusively for ABB S800 distributed I/O rack series. On-site automation engineers mount multiple ABB DSCS140 on DSBB backplane bases to build backup communication loops for critical industrial control loops. ABB DSCS140 slides into standard rack card slots and delivers bidirectional data transmission with ABB AC800M main CPU and all S800 analog, digital I/O modules without auxiliary conversion circuit boards. Rotational dial switches on module front panels complete address setup to keep ABB DSCS140 exchanging stable process data with factory-installed ABB transmitters and actuators.

Cross-brand Compatibility

Proprietary backplane signal protocol prevents direct data interconnection of ABB DSCS140 to third-party main controllers. Standalone protocol conversion gateways are required to set up data links connecting ABB DSCS140 with PLC equipment manufactured by Siemens or Schneider. Universal PROFIBUS-DP industry standard allows ABB DSCS140 to collect measurement signals from most third-party field sensors, no internal circuit rework needed.

3. Lifecycle Cost Analysis

Service lifespan of ABB DSCS140 is defined as 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Bus channel signal testing and internal dust clearance for ABB DSCS140 costs 35 USD per year, total 10-year maintenance expense: 350 USD

Spare part replacement cost: Core communication circuit breakdown of ABB DSCS140 generally emerges once every 7 years, single spare component price: 450 USD, total replacement expense within 10 years: 450 USD

Retrofit expense saving: Original cabinet wiring layout fits ABB DSCS140 perfectly during control system renovation, saving 282 USD extra construction expenditure versus incompatible substitute bus adapters

Total cumulative running cost for single ABB DSCS140 over its 10-year service period: 518 USD
