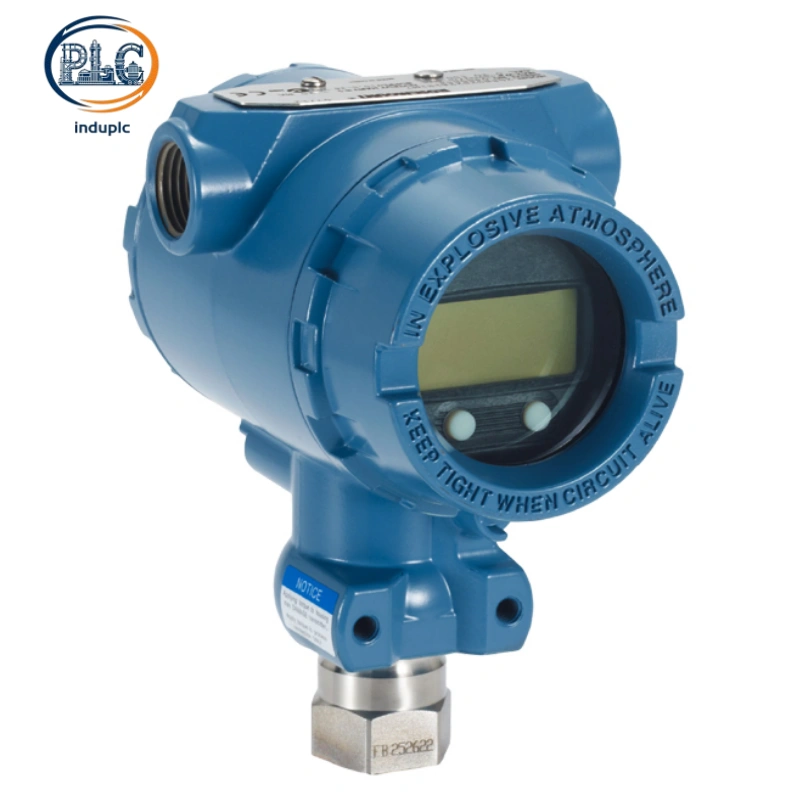

Rosemount 2051TG2A2B21AB4M5 Gauge Pressure Transmitter, 4-20mA HART 7 SIL2 High-Precision 316L SS Industrial Gauge Pressure Sensor

Rosemount 2051TG2A2B21AB4M5 High-Precision SIL2-Rated Gauge Pressure Transmitter with HART 7 Protocol

Industrial Application Values & Core Selection Advantages

Versatile Process Industry Deployment

Rosemount 2051TG2A2B21AB4M5 fits general and safety-related pressure monitoring across diverse process industries. The gauge pressure design tracks real-time pipeline pressure, vessel internal pressure and equipment operating pressure for petrochemical plants, thermal power stations, manufacturing facilities and water treatment systems. Flexible range coverage adapts to most standard industrial pressure loop requirements.

Integrated Functional Advantages for Plant Operation

Facilities prioritize Rosemount 2051TG2A2B21AB4M5 for its balanced safety certification, material durability and smart communication functions. SIL2 compliance supports safety instrumented system integration, while premium 316L stainless steel wetted parts extend service life in moderate corrosive media environments. HART 7 remote diagnostic capabilities reduce routine inspection workload and lower long-term operational costs.

Full Datasheet Model Code Breakdown for Rosemount 2051TG2A2B21AB4M5

Suffix-by-Suffix Factory Configuration Definition

Every character combination of Rosemount 2051TG2A2B21AB4M5 represents fixed factory preset specifications, with no field modification required for standard commissioning. Each suffix defines measurement type, range grade, communication mode, mechanical structure, material grade and safety rating for precise engineering selection and equipment replacement.

• 2051: Modern smart pressure transmitter platform with upgraded precision, low drift and industrial-grade durability

• TG: Gauge pressure measurement type, measuring process pressure relative to atmospheric pressure

• 2: Standard industrial pressure range grade, covering mainstream general process pressure monitoring spans

• A: 4-20mA analog output with superimposed HART 7 digital communication protocol

• 2B: 1/2-inch NPT standard process thread connection for universal field piping installation

• 21: Premium 316L stainless steel wetted components for enhanced corrosion resistance

• A: Rugged coated aluminum housing with excellent environmental shielding performance

• B4: Standard 1/2-inch NPT conduit port and industrial terminal assembly configuration

• M5: SIL2 safety integrity certification compliant with IEC 61508 international safety standards

Precision Gauge Pressure Measurement & Long-Term Stability

High-Accuracy Process Pressure Detection

Rosemount 2051TG2A2B21AB4M5 delivers reference accuracy up to ±0.075% of calibrated span, capturing subtle pressure fluctuations in continuous process loops. Advanced piezoresistive sensing technology ensures fully linear signal output throughout the entire measurement range, providing reliable data support for process pressure regulation and equipment condition monitoring.

Ultra-Low Long-Term Drift Performance

Structural and circuit optimization enables Rosemount 2051TG2A2B21AB4M5 to maintain stable measurement performance with minimal drift over years of continuous operation. Built-in temperature compensation offsets ambient and process temperature variations, while anti-vibration structural design resists mechanical interference in complex workshop environments to sustain consistent reading accuracy.

Premium Material Structure & Harsh Environment Adaptability

316L Stainless Steel Wetted Part Performance

Rosemount 2051TG2A2B21AB4M5 adopts high-grade 316L stainless steel for all wetted components, featuring superior anti-oxidation and anti-corrosion properties compared to standard stainless steel materials. The premium material adapts to industrial gas, clean liquid and slightly corrosive process media, effectively preventing medium erosion and extending long-term operational lifespan.

Rugged Industrial Environmental Resistance

Aluminum alloy housing with protective coating provides reliable shielding against dust, moisture and electromagnetic interference. The transmitter supports wide ambient temperature tolerance and 5%–95% non-condensing humidity operation, adapting to outdoor field installation, ventilated workshop and dense cabinet deployment scenarios for 24/7 uninterrupted operation.

HART 7 Communication & SIL2 Safety Operational Features

Dual Analog and Digital Signal Transmission

Rosemount 2051TG2A2B21AB4M5 outputs standard linear 4-20mA analog signals for real-time pressure data transmission to DCS and PLC systems. Superimposed HART 7 digital protocol supports remote parameter configuration, calibration record query, device status diagnosis and fault log viewing, simplifying intelligent plant asset management workflows.

Safety-Certified Loop Protection Mechanism

SIL2 safety certification qualifies Rosemount 2051TG2A2B21AB4M5 for safety-critical process monitoring loops. Real-time hardware self-diagnosis functions detect sensor anomalies, circuit failures and power abnormalities instantly. Automatic safe output locking avoids incorrect process control actions, effectively reducing unplanned production downtime and improving plant operational safety.

Standard Mechanical Connection & Field Installation Convenience

Universal NPT Threaded Interface

Equipped with 1/2-inch NPT standard process thread and conduit port, Rosemount 2051TG2A2B21AB4M5 matches global industrial piping and wiring specifications. Standard interface design eliminates customized adapter requirements, speeding up on-site installation, wiring and commissioning procedures for new projects and system retrofits.

Simplified On-Site Maintenance

Integrated compact structure minimizes mechanical failure points, while standardized component layout simplifies routine inspection and part replacement. Remote HART diagnostic access reduces on-site manual operation frequency, lowering overall maintenance labor and time costs for long-term project operation.
