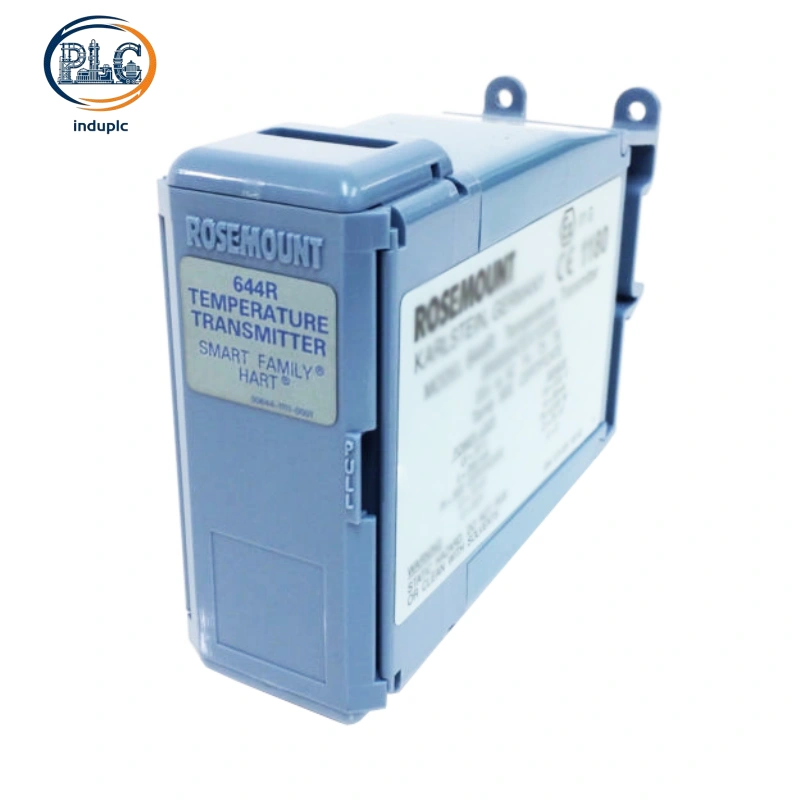

Rosemount 644RANA1K5M5 DIN Rail Mount Temperature Transmitter, SIL2 Certified HART 7 4-20mA Universal RTD/Thermocouple Transmitter with 5-Year Stability

Rosemount 644RANA1K5M5 Cabinet DIN Rail Mount Universal Temperature Transmitter with SIL2 Safety Rating

Centralized DIN Rail Mount Design & Cabinet Integration Benefits

Space-Saving Industrial Cabinet Layout

Rosemount 644RANA1K5M5 adopts standard DIN rail mounting structure, optimized exclusively for indoor control cabinet installation. This rail-mounted layout differs from field-mounted transmitters, enabling centralized arrangement of multiple temperature measurement points inside electrical cabinets. Compact form factors maximize cabinet space utilization and support dense I/O configuration for large-scale process automation systems.

Simplified Centralized Maintenance Workflow

Cabinet-integrated installation of Rosemount 644RANA1K5M5 concentrates all temperature signal conversion points in one accessible location. Maintenance teams complete routine inspection, calibration and troubleshooting without traveling to scattered field sensors. Unified wiring routing reduces field cable length and minimizes signal interference risks across measurement loops.

Full Model Code Suffix Decoding for Rosemount 644RANA1K5M5

Factory Preset Configuration Parameters

Every suffix character on Rosemount 644RANA1K5M5 corresponds to fixed factory configurations, with all functional and structural parameters preset before delivery. No field hardware modification is required, ensuring consistent performance and accurate model matching for engineering design and equipment replacement.

• 644: Premium universal temperature transmitter platform with intelligent diagnostics and high-precision signal processing

• R: DIN rail mount form factor, dedicated for standard industrial cabinet rail installation

• A: Universal multi-input support for RTD, thermocouple, resistance and millivolt sensor signals

• N: No local LCD display, streamlining cabinet installation and reducing overall module footprint

• A: 4-20mA analog output with built-in HART 7 digital communication protocol

• 1: Standard general-purpose industrial grade for non-hazardous indoor cabinet environments

• K5: Enhanced stability calibration grade, supporting 5-year ultra-low drift measurement retention

• M5: SIL2 safety integrity certification compliant with IEC 61508 international safety standards

5-Year Enhanced Stability & Precision Measurement Performance

Ultra-Long-Term Drift Control

The K5 stability upgrade equips Rosemount 644RANA1K5M5 with industry-leading long-term accuracy retention. The unit maintains measurement drift below ±0.18% of full span across five years of continuous operation, far exceeding standard industrial transmitter stability levels. Low drift performance extends calibration cycles and cuts recurring plant maintenance expenses significantly.

High-Precision Linearized Signal Output

Rosemount 644RANA1K5M5 utilizes 24-bit input signal resolution and professional linearization algorithms to correct non-linear sensor characteristics. Standardized 4-20mA linear output ensures precise data recognition by PLC and DCS control systems. Ambient temperature compensation eliminates reading deviation caused by cabinet temperature fluctuation.

SIL2 Safety Compliance & Intelligent Diagnostic Functions

Safety-Certified Loop Protection

Rosemount 644RANA1K5M5 holds official SIL2 safety certification, suitable for safety-related process monitoring and auxiliary interlock loops. Built-in hardware fault detection circuits monitor signal anomalies, circuit failures and power abnormalities in real time. Automatic fault alarming and safe output locking prevent incorrect temperature data from triggering abnormal process actions.

Comprehensive Transmitter Self-Diagnostics

Advanced diagnostic logic detects sensor open circuits, short circuits and signal deviation issues instantly. HART 7 remote access allows technicians to retrieve device status logs, calibration records and fault histories without physical cabinet access. Intelligent monitoring reduces unplanned downtime and improves system operational transparency.

HART 7 Communication & Industrial Electrical Adaptability

Dual Analog and Digital Signal Networking

Rosemount 644RANA1K5M5 operates on a two-wire loop, carrying 4-20mA real-time analog values and superimposed HART 7 digital data simultaneously. Analog signals sustain stable basic process control, while digital signals support remote parameter adjustment, multi-drop networking and asset management system integration.

Wide-Range Loop Power and Isolation Performance

The transmitter supports 12V DC to 42.2V DC loop power supply, adapting to diverse industrial cabinet power distribution specifications. 600Vrms input-output galvanic isolation effectively suppresses ground loop noise and electromagnetic crosstalk, guaranteeing stable signal transmission in high-interference cabinet environments with dense electrical modules.

Target Applications & Core Selection Advantages

Best-Fit Industrial Scenarios

Rosemount 644RANA1K5M5 serves centralized automation rooms, power plant auxiliary control cabinets, chemical process control systems and manufacturing process temperature monitoring. It excels in projects requiring unified cabinet layout, long-term stable measurement and safety-grade signal acquisition.

Key Reasons for Model Selection

Plant engineers prefer Rosemount 644RANA1K5M5 for its unique combination of rail-mounted convenience, 5-year stability and SIL2 safety certification. Centralized cabinet installation standardizes system layout and simplifies daily management. Universal sensor compatibility reduces spare part types, while HART 7 smart functions improve overall plant automation and maintenance efficiency.
