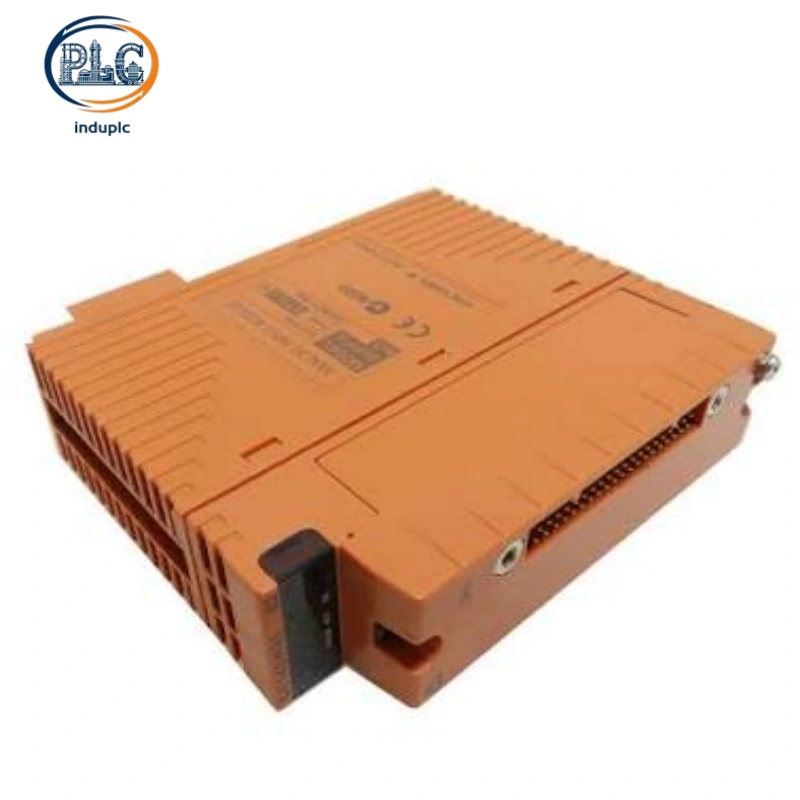

Yokogawa SAI143‑H53 Analog Input Module, 16-Channel Isolated 4-20mA HART SIL3 G3 Grade FIO Card for CENTUM VP & ProSafe-RS SIS

Yokogawa SAI143‑H53 16-Channel Isolated HART Analog Input Module with SIL3 & G3 High-Grade Protection

1. High-Density 16-Channel Isolated Analog Acquisition

The SAI143‑H53 is a high-density industrial analog input module featuring 16 fully isolated channels in a single FIO slot. Designed exclusively for standard 4–20mA DC current signals, it supports flexible configuration for both 2-wire and 3-wire field transmitters, covering conventional pressure, flow, temperature and level process instrumentation. The module-level isolation structure provides 1500V AC one-minute dielectric withstand voltage, effectively isolating field electrical noise and preventing cross-channel signal crosstalk.

Equipped with high-precision 16-bit A/D conversion, it achieves outstanding measurement accuracy of ±0.1% full scale and stable low-drift performance. The standard 40ms update cycle ensures real-time process data refresh, fully meeting high-frequency monitoring requirements for continuous process control loops.

2. Full HART Protocol Compatibility & Intelligent Diagnostics

Supporting complete HART 5, 6 and 7 protocol stacks, SAI143‑H53 enables bidirectional intelligent communication with HART-capable field instruments. Beyond basic 4-20mA analog value collection, it accesses device status, diagnostic information, tag data and process parameters, realizing intelligent instrument management and remote parameter configuration. This eliminates the need for on-site handheld debugging and improves daily operational efficiency.

Built-in comprehensive channel diagnostics detect wire breakage, short circuit and abnormal transmitter status in real time. Timely fault alarming and log recording allow engineers to quickly locate loop anomalies, reducing unplanned downtime and improving system maintainability.

3. SIL3 Safety Certification for SIS & Critical Loops

As a core upgraded feature of the H53 variant, the module passes strict SIL3 safety integrity certification per IEC 61508 standard in redundant configurations. It is fully adaptable to ProSafe-RS safety instrumented systems, supporting safety-related process monitoring, trip condition detection and emergency interlock loop signal acquisition.

The reliable safety architecture ensures zero-deviation signal acquisition for critical production loops, meeting stringent safety requirements in petrochemical, energy and chemical industries. It serves as a unified solution for conventional DCS monitoring and safety-grade SIS signal collection.

4. G3 Anti-Corrosion & Extreme Environmental Adaptability

Featuring professional ISA G3 anti-corrosion protection, SAI143‑H53 resists corrosive industrial gases including H₂S, SO₂, NO₂ and Cl₂. This enhanced anti-aging design prevents circuit oxidation and performance degradation in humid, corrosive and polluted workshop environments, greatly extending module service life compared with standard industrial modules.

It supports an ultra-wide industrial temperature range of -20°C to +70°C and 5%–95% non-condensing humidity. With excellent temperature drift control and vibration resistance, it maintains stable precision under extreme temperature fluctuations and long-term 24/7 unattended operation.

5. System Compatibility & Core Application Advantages

Application Scenarios: Widely deployed in safety-critical and harsh industrial scenarios such as petrochemical plants, thermal power stations and chemical processing lines. Suitable for high-precision analog signal monitoring, safety instrumented system signal acquisition and intelligent HART instrument centralized management.

Core Competitive Advantages: 16-channel high-density isolation optimizes cabinet space utilization; full HART multi-version compatibility enables intelligent field device management; SIL3 certification supports safety loop deployment; G3 corrosion protection adapts to harsh industrial environments; ultra-wide temperature design ensures stable long-term precision monitoring with excellent cost-performance.
