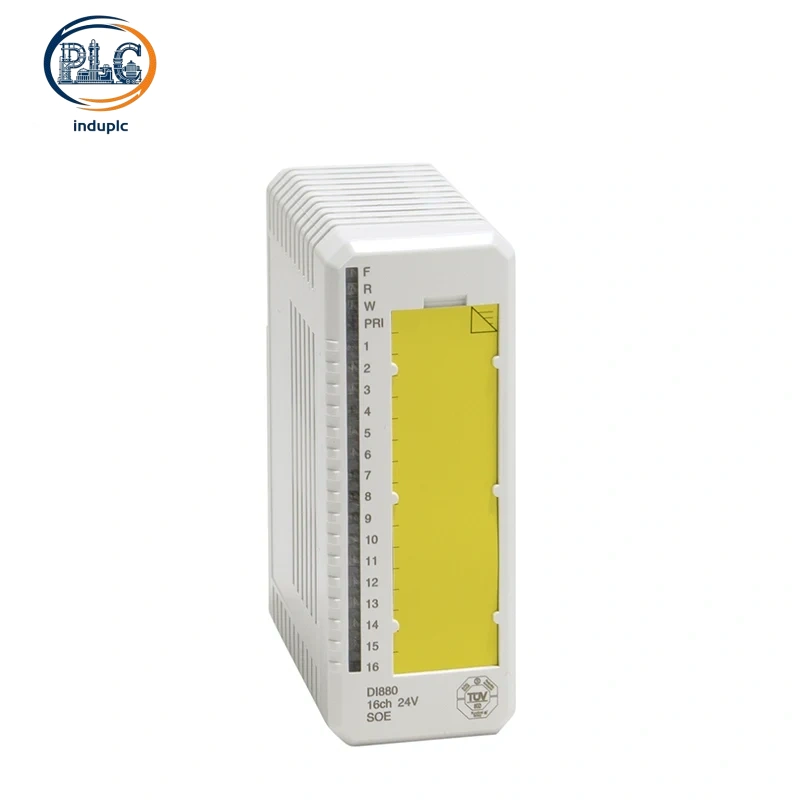

1. Core Technical Parameters

Supply Voltage：24 VDC

Digital Input：16 channels

Input Rated：24VDC dry contact

Isolation Voltage：2500 VAC

Working Temperature：-20℃ ~ +70℃

Mount Mode：DIN rail

Internal Bus：AC800M backplane bus

2. Compatibility & Expandability

Same-brand Compatibility

ABB DI880 is tailored for ABB AC800M DCS rack platform. Field automation staff install multiple ABB DI880 onto rack backboard to expand digital signal collection capacity during production line upgrade. ABB DI880 snaps into standard rack slots and connects ABB main controller and base terminal modules without extra transition fittings. Manual address dial on module panel enables ABB DI880 to match original ABB site proximity switches and limit sensors.

Cross-brand Compatibility

Exclusive proprietary backplane bus prevents direct wiring linkage of ABB DI880 with non-ABB control hardware. Extra protocol conversion module is required to link ABB DI880 with PLC devices from Siemens and Schneider. Universal 24V digital input specifications allow ABB DI880 to receive signals from various third-party field switches without inner circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DI880 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation costs are excluded from cost calculation

Annual routine maintenance cost: Periodic signal calibration and dust clearance for ABB DI880 costs 26 USD per year, total 10-year maintenance cost: 260 USD

Spare part replacement cost: Core component damage of ABB DI880 occurs around once every 8 years, single spare part price:352 USD, total replacement expense within 10 years:352 USD

Retrofit expense saving: Original field wiring can be reused for ABB DI880 during cabinet transformation, saving 199 USD extra construction cost against mismatched alternative modules

Total cumulative running cost for single ABB DI880 over 10 service years:413 USD
