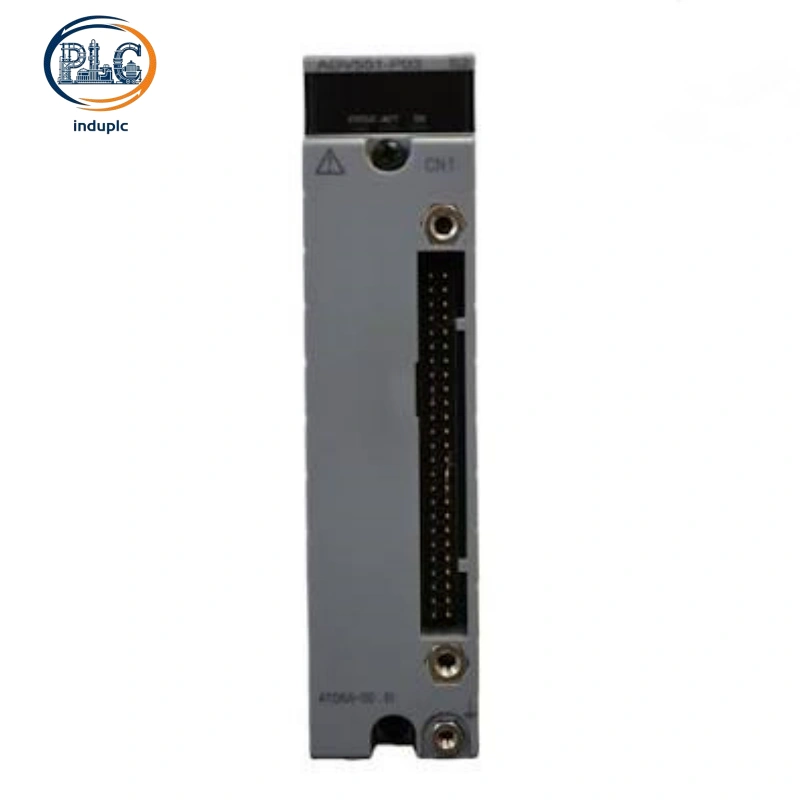

Yokogawa ADV551‑P03 Digital Output Module, 32-Channel Isolated 24V DC Sink-Type Transistor FIO Card for CENTUM ST3/VP DCS Discrete Actuation

Yokogawa ADV551‑P03 32-Channel Sink-Type Isolated 24V DC Digital Output FIO Module for CENTUM ST3/VP Standard Discrete Control

1. 32-Channel Sink-Type Output Architecture

High-Density Single-Slot DO Deployment

Yokogawa ADV551‑P03 integrates 32 independent digital output channels in one standard FIO slot, providing ultra-high-density discrete actuation capacity for DCS systems. Adopting fixed current-sink output mode, it matches mainstream common-positive field wiring standards, perfectly driving 24V DC auxiliary relays, indicator lamps and small valve positioners. The compact layout effectively reduces cabinet occupancy and overall hardware costs for large-scale multi-point output projects.

Standard 24V DC Electrical Specifications

The module operates on 20.4V–26.4V DC external power supply with rated 24V DC working voltage. Each channel supports stable 0.5A maximum output current, with built-in per-channel overcurrent protection to prevent burnout from field short circuits and load surges. Strict industrial parameter calibration ensures consistent and safe long-term low-power load driving performance.

2. 3ms High-Speed Switching Performance

Fast Response Actuation Capability

Designed for high-efficiency discrete control, ADV551‑P03 achieves ≤3ms ultra-fast ON/OFF switching response, far exceeding standard-speed DCS output modules. The rapid actuation speed eliminates logic execution lag, supporting precise sequence control, fast interlock reset and intermittent batch process switching. It ensures synchronous and timely response to DCS control commands.

Stable Anti-Jitter Output Logic

Optimized internal drive circuitry filters transient signal jitter and power fluctuation interference. The module maintains stable on/off status without frequent flicker, delivering consistent output state for continuous 24/7 process operation and improving overall control loop stability.

3. Per-Channel Isolation & Anti-Interference Design

Independent Channel Galvanic Isolation

All 32 channels adopt individual electrical isolation structure, realizing complete separation between field load loops and DCS internal circuits. With 500V DC isolation withstand capacity, it effectively blocks ground loop coupling and cross-channel interference. Single-channel electrical faults are fully confined locally, avoiding module-level failure or system circuit impact.

Industrial EMC & Fault Protection

Compliant with standard industrial EMC specifications, the module resists electrostatic discharge and electromagnetic radiation noise in complex factory environments. Built-in overcurrent and short-circuit protection further enhances field fault tolerance, ensuring long-term reliable operation under variable load conditions.

4. Standard FIO Integration & Wiring Compatibility

Space-Saving High-Density Layout

As a 32-channel high-density output module, it doubles the channel capacity of conventional 16-channel FIO cards. It simplifies system I/O configuration, reduces total module quantity, and optimizes cabinet wiring neatness for large-scale automation projects.

Unified FIO Accessory Matching

Fully compatible with Yokogawa standard FIO field cables and terminal boards, the module features fixed pin definitions and standardized wiring logic. It minimizes on-site connection errors, shortens commissioning time and lowers spare part management pressure.

5. Industrial-Grade Environmental Reliability

Wide Temperature & Humidity Adaptability

It operates stably within 0°C to +55°C working temperature range, with storage temperature covering -20°C to +70°C. It withstands 5%–95% non-condensing industrial humidity, adapting to long-term indoor cabinet operation and ambient temperature fluctuations.

Vibration & Aging Resistance

Reinforced internal structure and high-quality screened components resist mechanical vibration and long-term operational aging. Low-power heat generation reduces component fatigue, maintaining ultra-low failure rates for long-cycle industrial deployment.

6. Full CENTUM ST3/VP System Compatibility

Dual-Platform Native Adaptation

Optimized for CENTUM ST3 architecture with full backward compatibility for CENTUM VP systems, the module achieves zero protocol mismatch and stable bus docking. It suits new project construction, I/O expansion and legacy system renovation without additional firmware modification.

Plug-and-Play FIO Deployment

Standard FIO interface supports direct plug-in installation, automatic system identification and fast ESB bus handshake. It simplifies on-site deployment and accelerates system upgrade and expansion progress.

7. Industrial Application Scenarios

ADV551‑P03 is widely deployed in chemical, petrochemical and power industries for standard discrete output control. It drives field indicator lights, auxiliary relays and small actuators, supporting sequence batch control, alarm loop output and interlock reset logic. It serves as a cost-effective high-density DO expansion solution for CENTUM ST3/VP new builds and system upgrades.

8. Core Competitive Advantages

• 3ms Ultra-Fast Response: High-speed switching performance ensures precise and timely execution of sequence and interlock control logic.

• Per-Channel Isolation Protection: Independent channel isolation prevents fault spread and cross-interference, improving system stability.

• High-Density 32-Channel Design: Single-slot high-capacity output saves cabinet resources and reduces overall project costs.

• Dual ST3/VP Compatibility: Universal platform adaptation supports cross-version system deployment and renovation.
