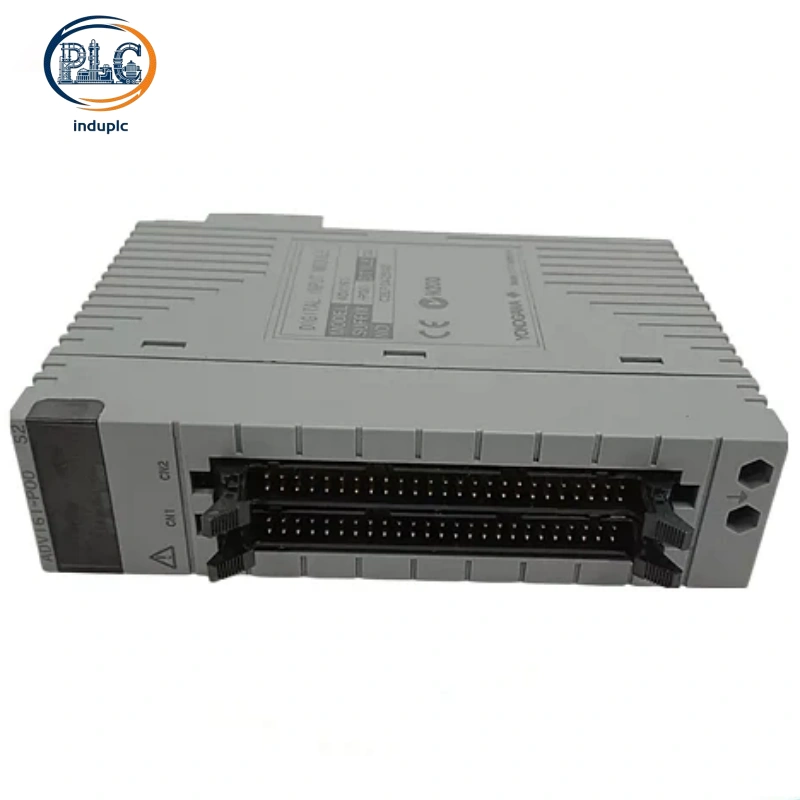

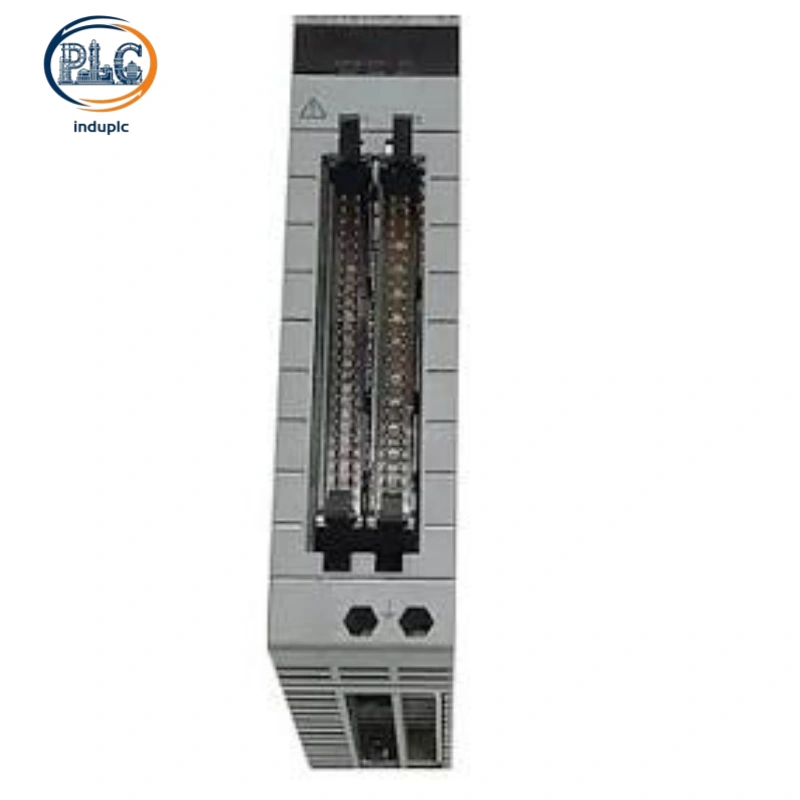

Yokogawa ADV161‑P00 Digital Input Module, 32-Channel Isolated 24V DC Sink/Source Universal FIO Card for CENTUM ST3/VP DCS Discrete Monitoring

Yokogawa ADV161‑P00 32-Channel Sink/Source Universal Isolated 24V DC Digital Input FIO Module for CENTUM ST3/VP Standard Discrete Control

1. Universal Sink/Source Input Design

Dual-Polarity Signal Compatibility

Yokogawa ADV161‑P00 supports both common-positive source-type and common-negative sink-type 24V DC discrete signals in one unified module. Eliminating polarity restrictions, it adapts to mixed-logic field wiring and covers standard dry contact devices including limit switches, relay feedback contacts and manual pushbuttons. This universal design simplifies on-site wiring and standardizes I/O configuration for diverse industrial loop types.

Precision 24V DC Threshold Calibration

Factory-calibrated voltage thresholds ensure stable and accurate status judgment, with valid ON-state detection at 18–26.4V DC and OFF-state confirmation below 5.0V DC. Each channel operates at a consistent 4.1mA rated current with a maximum withstand voltage of 30V DC. Strict parameter control prevents misjudgment caused by field voltage drift and minor line interference.

2. Standard High-Speed Sampling Performance

Balanced Full-Channel Update Cycle

Optimized for mainstream industrial discrete monitoring, the module delivers steady full-channel synchronous sampling speed, perfectly matching medium-speed switch state changes and general interlock loop response requirements. Built-in anti-jitter filtering suppresses contact bounce and transient noise, ensuring flicker-free, stable status output without excessive system resource overhead.

Reliable Pushbutton Detection Function

Retaining P-suffix dedicated manual signal detection, the module accurately captures local pushbutton triggers, reset commands and manual confirmation signals. With fixed minimum ON-duration validation and anti-bounce logic, it guarantees stable human-machine signal interaction for on-site operational workflows.

3. Per-Channel Optical Isolation & Anti-Interference

Independent Channel Galvanic Isolation

All 32 channels feature individual optical isolation, achieving complete electrical separation between field loops and DCS internal circuits. Different from grouped isolation designs, this structure eliminates cross-channel crosstalk and ground loop coupling. Single-channel faults including short circuits and voltage surges are fully contained locally to avoid module-wide or system-level impact.

Industrial EMC & Fault Tolerance

Complying with standard industrial EMC specifications, the module resists static discharge, electromagnetic radiation and power fluctuation interference. The isolated barrier protects sensitive DCS backplane and bus circuits from field electrical anomalies, ensuring long-term stable operation in complex industrial electromagnetic environments.

4. 32-Channel High-Density FIO Integration

Space-Saving Mass Signal Acquisition

Integrating 32 discrete input points in a single standard FIO slot, ADV161‑P00 doubles the channel density of traditional 16-channel modules. It reduces cabinet rack occupancy, total hardware quantity and project investment, enabling compact, standardized large-scale discrete signal monitoring system layout.

Standard FIO Accessory Compatibility

The module matches Yokogawa unified FIO wiring standards, supporting dedicated field cables and terminal boards. Fixed pin definitions minimize wiring errors, simplify commissioning and lower on-site spare part management pressure.

5. Industrial-Grade Environmental Reliability

Stable Temperature & Humidity Resistance

It operates stably in standard industrial cabinet environments, withstanding 5%–95% non-condensing relative humidity and routine ambient temperature fluctuations. Reliable environmental adaptability supports 24/7 unattended continuous production operation.

Vibration & Aging Resistant Structure

Reinforced internal fixation and strictly screened components resist mechanical vibration and long-term operational aging, maintaining ultra-low failure rates for long-cycle industrial control deployment.

6. Full CENTUM ST3/VP System Compatibility

Dual-Architecture System Adaptation

Purpose-built for CENTUM ST3 systems with full backward compatibility for CENTUM VP platforms, the module ensures seamless protocol and mechanical docking across system versions. It eliminates mismatch risks and reduces secondary debugging workload for new builds and renovations.

Plug-and-Play FIO Deployment

Standard FIO interface supports direct plug-in installation, automatic system identification and fast ESB bus handshake. No external adapters or firmware edits are required, accelerating project deployment and system expansion progress.

7. Industrial Application Scenarios

ADV161‑P00 is widely used for general equipment status monitoring in chemical, petrochemical and power plants, collecting pump, fan and valve auxiliary contact signals. It supports standard alarm and medium-speed interlock loop monitoring, and serves as an efficient high-density I/O expansion solution for new ST3/VP projects and legacy system upgrades.

8. Core Competitive Advantages

• Universal Sink/Source Flexibility: Dual-polarity design adapts to all mainstream 24V DC field wiring modes, simplifying engineering design for mixed-logic loops.

• Dual ST3/VP Compatibility: Optimized for ST3 architecture with full VP backward compatibility, delivering reliable cross-version system matching.

• High Cost-Performance: Balanced standard sampling performance meets most general discrete monitoring needs without redundant high-speed overhead.

• High-Density Isolated Layout: 32-channel per-slot integration saves cabinet resources, while per-channel isolation improves system stability and fault tolerance.
