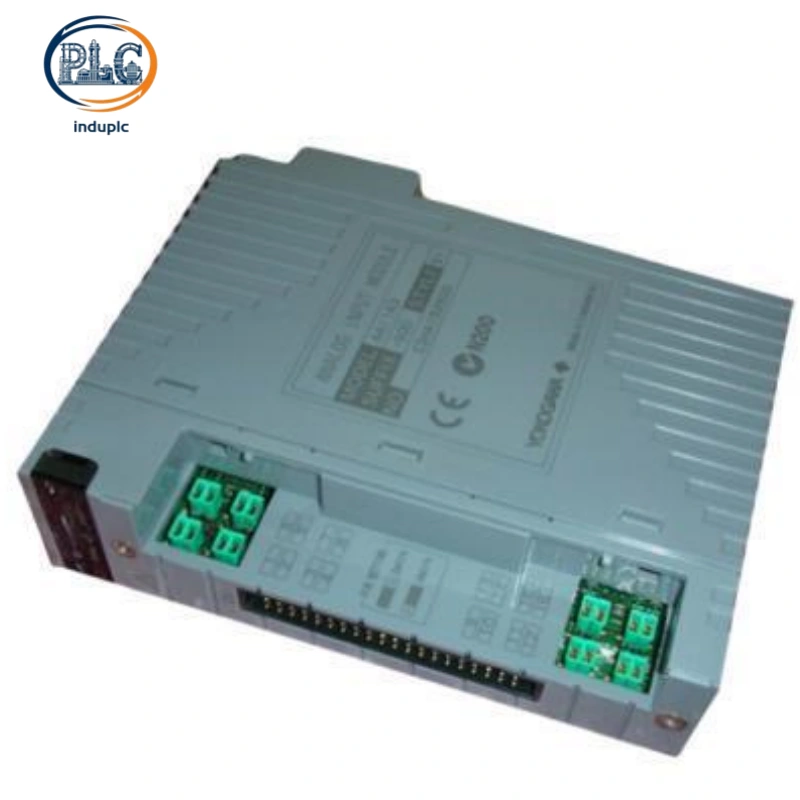

Yokogawa ADV141‑S00 Digital Input Module, 16-Channel Isolated 100/120V AC FIO Card for CENTUM VP DCS Industrial AC Discrete Signal Monitoring

Yokogawa ADV141‑S00 16-Channel Isolated 100/120V AC Digital Input FIO Module for CENTUM VP Industrial Discrete Status Monitoring

1. Dedicated 100/120V AC Discrete Input Design

Industrial Standard AC Voltage Adaptation

Yokogawa ADV141‑S00 is purpose-built for global 100–120V AC, 50/60Hz industrial discrete control standards, perfectly matching mainstream factory AC switchgear and auxiliary equipment signal specifications. It features precise threshold judgment with peak ON voltage of 80V AC and peak OFF voltage below 20V AC, effectively identifying valid AC status signals while filtering low-voltage interference. Dedicated AC input circuitry eliminates signal misjudgment caused by voltage fluctuation in industrial AC power loops.

Stable Per-Channel Current Characteristics

Each channel maintains a typical input current of 4.7mA at 120V/60Hz, with a maximum limit of 7mA per channel. The constant-current sampling design ensures stable signal triggering without excessive power consumption or heat generation. Balanced current parameters prevent channel burnout and guarantee long-term consistent status detection for continuous AC loop operation.

2. Graded Reinforced Isolation Protection Performance

Dual-Layer System & Field Insulation

Yokogawa ADV141‑S00 integrates high-grade isolation barriers between field AC circuits and DCS system internal circuits, supporting 2000V AC one-minute dielectric withstand voltage. Robust insulation structure effectively blocks AC surge voltage, power grid noise and ground loop interference. The reinforced isolation design protects sensitive DCS backplane circuits from high-voltage AC impact, improving overall system operational safety.

Grouped Anti-Crosstalk Isolation Structure

The module adopts grouped isolation design with common-minus configuration for every 8 channels, forming independent protection units. This segmented isolation architecture suppresses cross-channel signal crosstalk in dense AC wiring environments. Localized fault containment ensures single-channel anomalies do not spread to adjacent channels or affect overall module operation.

3. Precision Sampling & Response Specifications

Controllable Signal Response Speed

Yokogawa ADV141‑S00 delivers a maximum response time of 160ms, matching the slow-variation characteristics of industrial AC switch status. The minimum ON detection time is set to 200ms, with a maximum ON/OFF switching cycle of 2.5Hz. Reasonable delay filtering effectively eliminates instantaneous jitter and bounce interference of AC contacts, ensuring stable and accurate status output.

Intelligent Anti-Jitter Filtering Logic

Built-in hardware and software dual filtering mechanism screens abnormal pulse interference from unstable AC power supply and contact chatter. The module only outputs valid and stable switch status after continuous signal confirmation, avoiding frequent data flicker and false alarms in DCS monitoring screens. Optimized sampling logic improves the reliability of interlock and alarm logic execution.

4. High-Density Single-Slot Integration & Wiring Standardization

16-Channel High-Capacity AC Signal Acquisition

Integrating 16 independent AC digital input channels in one standard FIO slot, Yokogawa ADV141‑S00 achieves superior I/O density for AC discrete monitoring projects. High-density single-card integration greatly reduces module quantity and cabinet rack occupancy compared with low-channel AC input modules. Compact layout optimizes large-scale multi-point AC signal centralized monitoring system configuration.

Standardized FIO Accessory Compatibility

The module supports matching with dedicated FIO field cables and terminal boards, conforming to Yokogawa unified industrial wiring standards. Fixed pin definitions and standardized wiring logic reduce on-site connection errors and simplify engineering construction processes. Unified accessory specifications lower spare part management pressure for industrial sites.

5. Industrial-Grade Environmental & Structural Reliability

Wide Temperature & Humidity Tolerance

Yokogawa ADV141‑S00 operates stably within standard industrial temperature range, adapting to cabinet heat accumulation and ambient temperature fluctuation in factory environments. It withstands 5%–95% non-condensing relative humidity, preventing internal circuit dampening, oxidation and poor contact faults. Broad environmental adaptability supports 24/7 long-term unattended operation.

Vibration & Electromagnetic Compatibility

Reinforced internal circuit fixation structure resists minor mechanical vibration and equipment impact during on-site operation. Complying with industrial EMC standards, the module maintains stable signal recognition accuracy under complex electromagnetic interference environments such as power frequency radiation and electrostatic disturbance, ensuring long-term low-failure operation.

6. Native CENTUM VP System Seamless Compatibility

Plug-and-Play FIO Bus Integration

Fully compliant with Yokogawa CENTUM VP series FIO backplane and ESB bus protocols, Yokogawa ADV141‑S00 supports direct plug-in installation. The DCS system automatically identifies the module and completes fast communication handshake without external adapters or firmware modification. Native system compatibility suits new project deployment and legacy system renovation scenarios.

Stable Low-Power Operation

Optimized circuit design achieves low power consumption during full-load 16-channel operation, reducing cabinet heat accumulation. Low thermal output avoids temperature interference with adjacent modules and extends hardware service life. Stable power operating characteristics ensure consistent system communication and sampling accuracy.

7. Professional Industrial Application Scenarios

AC Equipment Status Centralized Monitoring

Power plants, petrochemical and manufacturing factories widely deploy Yokogawa ADV141‑S00 for 100/120V AC field equipment status collection. It accurately captures AC relay feedback, AC switch state, auxiliary equipment operation status and power distribution cabinet signal changes, providing real-time discrete data for DCS system equipment management.

AC Safety Interlock & Alarm Loop Acquisition

The module undertakes signal collection for industrial AC safety protection loops. It stably acquires AC emergency stop switches, fault alarm contacts and interlock protection status, supporting reliable trigger of system safety logic. High-isolation design effectively isolates AC power grid interference, ensuring safety loop stability.

AC Discrete I/O Expansion & System Retrofit

For DCS project reconstruction and function expansion requiring AC signal monitoring, this high-density AC input module supplements system discrete acquisition capacity. Standard FIO specifications ensure seamless docking with existing cabinet systems, minimizing project transformation workload and downtime.

8. Core Competitive Advantages of Yokogawa ADV141‑S00

Exclusive AC Voltage Design Fills Technical Gap

Different from conventional 24V DC discrete input modules, the dedicated 100–120V AC design adapts to international AC control standards, solving the problem of incompatible DC modules in AC loop projects. Professional AC threshold judgment and anti-interference design ensure higher accuracy and stability in AC signal monitoring scenarios.

High-Isolation Structure Improves System Safety

2kV high-withstand-voltage isolation effectively isolates field AC high-voltage surge and power grid noise, protecting DCS core control system. Grouped channel isolation prevents fault spread, greatly reducing system failure risks caused by field AC loop abnormalities.

High-Density & Cost-Effective Mass Deployment

16-channel single-slot high-density integration optimizes cabinet space utilization and reduces overall hardware investment. Stable industrial-grade performance and low failure rate lower long-term maintenance costs. It is the preferred cost-effective solution for large-scale industrial AC discrete signal monitoring projects.
