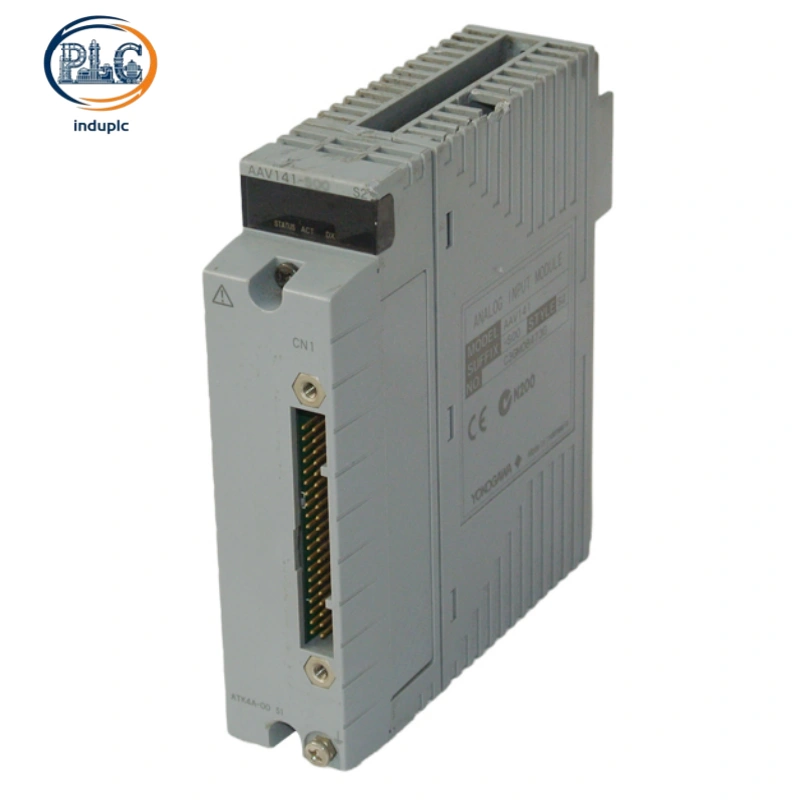

Yokogawa AAV141‑S50 Analog Input Module, 16-Channel Non-Isolated 1-5V DC High-Speed FIO Card for CENTUM VP DCS Voltage Signal Acquisition

Yokogawa AAV141‑S50 16-Channel Non-Isolated 1-5V DC Analog Input FIO Module for CENTUM VP Standard Voltage Process Monitoring

1. Exclusive 1-5V DC Voltage Signal Specialization

Single-Range Precision Voltage Acquisition

Yokogawa AAV141‑S50 is purpose-built for standard 1-5V DC industrial voltage signal collection, matching mainstream voltage-type field transmitters and process sensors. Unlike multi-signal universal modules, this unit focuses purely on voltage sampling to deliver optimized circuit stability and dedicated signal processing performance. Fixed 1-5V signal range eliminates configuration errors and ensures consistent data matching for standardized voltage monitoring loops.

Common Ground Non-Isolated Circuit Design

Adopting reliable common-reference non-isolated architecture, Yokogawa AAV141‑S50 features simplified internal circuitry tailored for stable voltage signal transmission. The unified ground structure suits dense multi-channel voltage signal deployment in general industrial environments with standardized grounding systems. Streamlined circuit layout reduces hardware complexity and improves long-term operational stability for routine process monitoring tasks.

2. High-Resolution & Fast Response Sampling Performance

16-Bit Ultra-Fine Signal Conversion

Equipped with industrial-grade 16-bit ADC conversion chips, Yokogawa AAV141‑S50 achieves ultra-fine voltage signal identification with full-scale resolution up to 65,536 discrete levels. The module maintains consistent measurement accuracy of ±0.1% full scale under standard operating conditions, capturing subtle voltage fluctuations that affect process stability. Strict factory calibration minimizes long-term signal deviation and ensures repeatable sampling results.

10ms High-Speed Full-Channel Update

Yokogawa AAV141‑S50 completes full 16-channel data refresh within 10ms, delivering fast real-time response for dynamic voltage-based process parameters. The rapid update cycle synchronizes perfectly with CENTUM VP DCS logic operation, eliminating monitoring lag for continuously varying industrial voltage signals. Timely data feedback supports accurate trend tracking and stable closed-loop process regulation.

3. High-Density Compact Hardware Layout & Wiring

16-Channel Single-Slot Integration

This FIO module integrates 16 independent voltage input channels into one standard FIO slot, providing exceptional I/O density for voltage signal monitoring projects. High-density single-card design drastically reduces total module quantity and cabinet rack occupancy compared to low-density modules. Compact layout simplifies cabinet wiring arrangement and optimizes overall DCS system hardware configuration.

Standard MIL 40-Pin Interface Wiring

Yokogawa AAV141‑S50 adopts professional MIL 40-pin connector specification for field wiring, with standardized positive and negative signal pin definitions for each channel. Unified wiring standards adapt to conventional industrial construction workflows and dedicated FIO cable systems. Clear pin allocation reduces on-site wiring errors and accelerates system commissioning progress.

4. Industrial-Grade Environmental Adaptability

Stable Wide Temperature Operation

Yokogawa AAV141‑S50 operates reliably within standard industrial temperature ranges, resisting performance drift caused by cabinet heat accumulation and ambient temperature fluctuations. Carefully screened industrial components maintain stable sampling accuracy during long-term full-load operation. The module supports 24/7 unattended continuous operation for year-round industrial production scenarios.

Durable Mechanical & Humidity Resistance

With compact dimensions of 107.5 × 130 × 32.8 mm and lightweight 0.2kg structure, the module adapts to dense cabinet deployment requirements. Reinforced internal circuit fixation withstands minor mechanical vibration from on-site production equipment. It tolerates standard non-condensing industrial humidity levels, preventing circuit dampening and signal distortion during long-cycle operation.

5. Native CENTUM VP System Compatibility

Plug-and-Play FIO Bus Integration

Yokogawa AAV141‑S50 fully complies with exclusive FIO backplane and ESB bus protocols of Yokogawa CENTUM VP DCS platforms. Standard physical and electrical interfaces enable direct plug-in installation with automatic system recognition and fast bus handshake. No external adapters or firmware modifications are required for seamless system docking and rapid commissioning.

Low Power Consumption Stable Operation

Optimized low-power circuit design minimizes heat generation during full-load multi-channel operation. Low thermal output avoids temperature interference with adjacent cabinet modules and reduces overall system energy consumption. Efficient power operation extends hardware service life and lowers long-term operational costs.

6. Targeted Industrial Application Scenarios

Standard Voltage Process Loop Monitoring

Chemical, petrochemical, power and general manufacturing plants deploy Yokogawa AAV141‑S50 for 1-5V voltage-type sensor monitoring. It stably collects voltage signals from pressure, flow, liquid level and temperature transmitters equipped with standard voltage output interfaces, supporting real-time process data display and trend analysis.

Large-Scale General I/O Expansion Projects

Medium and large-scale DCS system expansion projects widely adopt this module for mass voltage signal acquisition. High-density channel design meets centralized multi-point monitoring demands with minimal cabinet space occupation. Cost-effective performance perfectly matches standardized large-scale automation deployment requirements.

Legacy & New DCS System Matching

Yokogawa AAV141‑S50 serves both new CENTUM VP project construction and old system renovation scenarios. Standard FIO specifications ensure compatibility with new and existing rack systems. Fast replacement and installation minimize project downtime and reduce on-site debugging workload.

7. Core Advantages of Yokogawa AAV141‑S50

Professional Voltage-Specific Design Ensures Stability

Dedicated 1-5V voltage signal processing circuitry delivers more targeted and stable sampling performance than universal multi-signal modules. Optimized voltage range calibration eliminates signal mismatch risks and improves data consistency for standard voltage loops. Single-function specialization reduces unnecessary circuit loss and potential fault points.

High Cost-Performance for Mass Deployment

Non-isolated streamlined structure balances reliable industrial performance with economical procurement costs. High-density 16-channel integration reduces total hardware investment and cabinet layout costs. Stable low-failure operation cuts long-term maintenance workload and spare part inventory pressure.

Simplified Engineering & Maintenance Workflow

Fixed single signal range and standardized wiring specifications simplify engineering design and on-site configuration. No complex range switching or parameter debugging is required for standard voltage loops. Unified module specifications reduce technical thresholds for daily inspection and fault troubleshooting.
