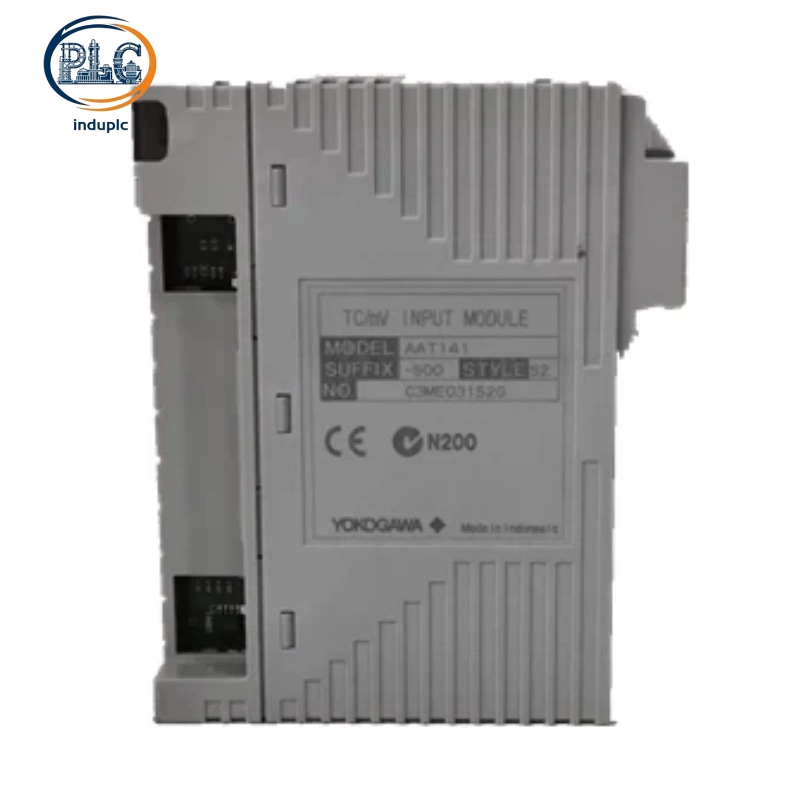

Yokogawa AAT141‑S00 TC/mV/RTD Input Module, 16-Channel Isolated High-Precision FIO Card for CENTUM VP DCS Thermal and Micro-Voltage Monitoring

Yokogawa AAT141‑S00 16-Channel Multi-Type TC/mV/RTD Isolated FIO Input Module for CENTUM VP High-Precision Process Monitoring

1. Multi-Parameter Universal Sensing Compatibility

Dual Thermal Signal Acquisition Support

Yokogawa AAT141‑S00 integrates dual thermal sensing functions to cover mainstream industrial temperature detection demands. The module supports standard thermocouple TC signal collection and RTD resistance-based temperature measurement in one compact unit. Unified thermal sensing design eliminates separate module deployment for mixed temperature sensing layouts on industrial sites.

High-Sensitive Micro-Voltage Signal Detection

Yokogawa AAT141‑S00 specializes in low-amplitude mV signal acquisition that ordinary analog modules cannot capture accurately. The module processes micro-voltage ranges from -100mV to 150mV with strict error control. Professional weak signal processing structure guarantees authentic data restoration for precision industrial detection scenarios.

2. μV-Level Ultra-High Measurement Precision

Strict Calibrated Signal Accuracy

Yokogawa AAT141‑S00 maintains industry-leading precision across all sensing channels under standard operating conditions. TC measurement error stays within ±30μV, while narrow-range mV detection achieves ±30μV accuracy and wide-range mV detection reaches ±80μV. RTD sensing error controls below ±120mΩ to ensure consistent temperature reading reliability.

Accurate Reference Junction Compensation

This FIO module embeds high-precision reference junction compensation technology for thermocouple sampling. Built-in temperature correction algorithms offset cold-junction temperature deviation automatically. Compensation accuracy within ±1°C eliminates manual calibration workload and improves long-term thermal measurement stability.

3. Robust Isolation & Anti-Interference Design

1000Vrms Industrial Isolation Protection

Yokogawa AAT141‑S00 features 1000Vrms reinforced isolation between field sensing circuits and DCS system internal circuitry. High-grade insulation barriers block industrial surge voltage and electromagnetic radiation interference. Enhanced electrical protection prevents weak micro-signal distortion and module damage in complex plant environments.

High Input Resistance Signal Stability

Yokogawa AAT141‑S00 adopts ultra-high 2MΩ minimum input resistance for all sensing channels. Stable high-resistance design minimizes signal attenuation during long-distance field transmission. Consistent input impedance ensures reliable data collection even with extended wiring layouts and complex loop configurations.

4. Flexible Field Wiring & On-Site Adaptability

Wide Wiring Resistance Tolerance

Yokogawa AAT141‑S00 supports up to 1000Ω total wiring resistance for TC and mV signal loops, adapting to long-range sensor deployment. RTD channels allow 40Ω maximum resistance per single wire to fit standard field cable specifications. Flexible resistance tolerance reduces site wiring restriction requirements.

Multi-Mode Sensor Connection Compatibility

The module matches 2-wire, 3-wire and 4-wire RTD sensor wiring modes and mainstream thermocouple installation standards. Versatile connection modes adapt to diverse legacy and new project field layouts. Unified terminal specifications simplify on-site wiring arrangement and engineering debugging.

5. Reliable Industrial Environmental Adaptability

Wide Temperature Operating Range

Yokogawa AAT141‑S00 operates steadily across -20°C to +60°C industrial temperature range. Premium screened components resist performance drift under cabinet heat accumulation and ambient temperature fluctuation. Broad thermal tolerance supports year-round continuous unattended operation.

Durable Compact Industrial Structure

Weighing only 250g with standard FIO dimensions, the module fits dense cabinet rack deployment requirements. Reinforced internal circuit fixation withstands minor mechanical vibration from production equipment. IP20 industrial enclosure protects internal circuitry from dust and minor environmental erosion.

6. Seamless CENTUM VP System Integration

Native FIO Bus & Backplane Matching

Yokogawa AAT141‑S00 complies with exclusive FIO backplane and ESB bus protocols for Yokogawa CENTUM VP DCS platforms. Plug-and-play installation enables automatic system identification and fast communication handshake. No auxiliary adapters or firmware modifications support one-step system docking.

Stable Low-Load Operational Performance

Optimized circuit design achieves low power consumption during full-load multi-channel operation. Efficient power operation reduces cabinet heat accumulation and avoids thermal interference with adjacent modules. Stable operational parameters extend hardware service life for long-cycle industrial deployment.

7. Practical Industrial Application Scenarios

Precision Thermal Process Monitoring

Chemical, petrochemical and energy plants deploy Yokogawa AAT141‑S00 for reactor, pipeline and furnace temperature monitoring. Dual TC and RTD sensing covers high and low-temperature process scenarios. Accurate thermal data supports process trend analysis and safety interlock triggering.

Micro-Voltage Precision Parameter Detection

Precision manufacturing and testing industries utilize this module for weak voltage signal collection. High-sensitivity mV-level acquisition captures subtle equipment operating parameters and tiny process variations. Reliable micro-signal detection guarantees refined production quality control.

Multi-Function DCS System Upgrade

CENTUM VP system renovation and expansion projects adopt Yokogawa AAT141‑S00 to integrate temperature and micro-voltage monitoring functions. Standard FIO form factor ensures seamless compatibility with existing cabinet systems. Fast deployment minimizes project downtime and debugging costs.

8. Core Advantages of Choosing Yokogawa AAT141‑S00

Triple-Signal Integration Simplifies Hardware Layout

Combined TC, mV and RTD sensing functions replace three sets of single-purpose monitoring modules. Integrated multi-function design reduces spare part categories and cabinet rack occupancy. Unified hardware configuration simplifies project design and on-site maintenance workflows.

μV-Level Precision Improves Process Control Accuracy

Ultra-fine measurement accuracy captures minor process parameter changes ignored by conventional modules. Built-in temperature compensation eliminates thermal measurement errors. High-precision data output provides reliable support for refined industrial process regulation.

High Anti-Interference Performance Ensures Operational Stability

Reinforced isolation and high input resistance design effectively resist complex industrial electromagnetic noise. Stable weak signal transmission avoids data jitter and monitoring anomalies. Rugged industrial performance adapts to demanding factory operating environments.
