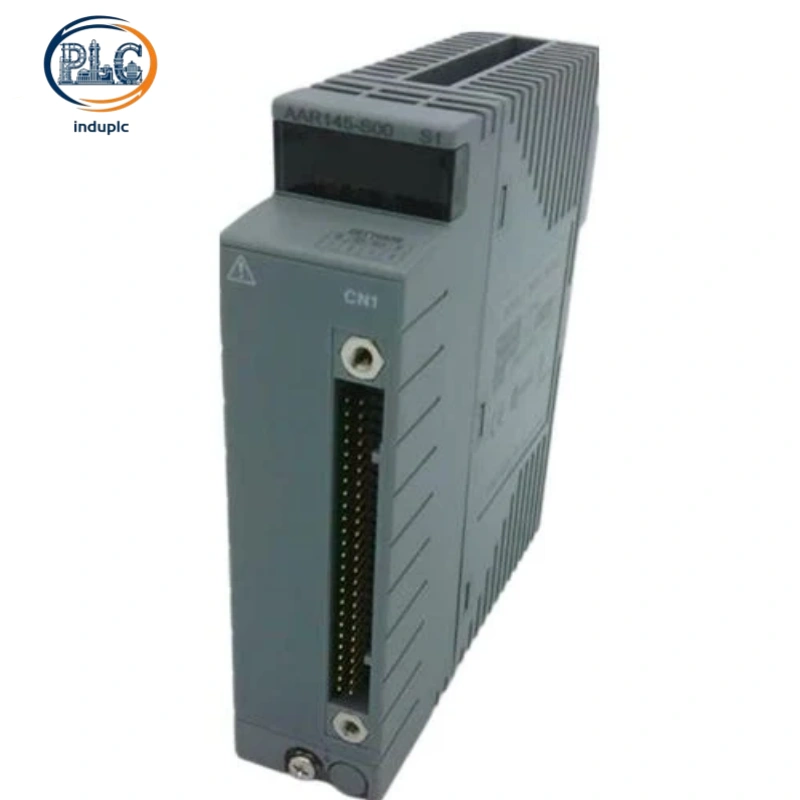

Yokogawa AAR145‑S00 RTD/POT Input Module, 16-Channel Fully Isolated High-Precision FIO Card for CENTUM VP DCS Temperature and Position Monitoring

Yokogawa AAR145‑S00 16-Channel Fully Isolated RTD/POT Input FIO Module for CENTUM VP Precision Industrial Sensing

1. Specialized Dual Signal Sensing Functionality

High-Precision RTD Temperature Acquisition

Yokogawa AAR145‑S00 supports standard Pt100 RTD sensor compatibility for accurate industrial temperature measurement. The module adopts fixed 1mA measurement current to ensure stable thermal signal sampling across long wiring distances. Optimized circuit design limits temperature drift to ±0.3Ω per 10°C, maintaining consistent thermal data accuracy in fluctuating cabinet environments.

Versatile POT Position Signal Detection

Yokogawa AAR145‑S00 processes potentiometer resistance signals ranging from 100Ω to 10kΩ for mechanical position feedback. The module tolerates total wiring resistance up to 1000Ω for flexible field layout adaptation. Precision resistance conversion delivers reliable position data for valve stroke, actuator displacement and mechanical travel monitoring.

2. Multi-Level Full Isolation Electrical Protection

Channel-to-Channel Independent Isolation

Every sensing channel of Yokogawa AAR145‑S00 features standalone galvanic isolation structure. 200V AC inter-channel isolation blocks cross-channel signal crosstalk caused by dense field wiring. Independent channel barriers contain localized faults and prevent single-point anomalies from affecting overall module operation.

Field-to-System High-Voltage Insulation

Yokogawa AAR145‑S00 integrates 500V AC continuous isolation and 1500V AC one-minute dielectric withstand insulation between field circuits and DCS system backplanes. Robust electrical barriers resist industrial surge voltage and electromagnetic interference. Enhanced insulation design protects system hardware and preserves sensing signal purity.

3. High-Density Channel Design & Wiring Flexibility

16-Channel Single-Slot Compact Integration

Yokogawa AAR145‑S00 packs 16 isolated sensing channels into one standard FIO slot, maximizing I/O density for temperature and position monitoring. High-density layout reduces total module quantity and cabinet rack occupancy for large-scale multi-point sensing projects. Compact form factor standardizes DCS cabinet hardware arrangement.

Multi-Mode Sensor Wiring Support

Yokogawa AAR145‑S00 adapts to 2-wire, 3-wire and 4-wire RTD sensor connections to match diverse field wiring standards. Flexible wiring configuration eliminates dedicated hardware adjustments for mixed sensor layouts. Compatible terminal design works with standard KS8 and AKB335 dedicated field cables for simplified installation.

4. Consistent Long-Term Measurement Stability

Ultra-Low Temperature Drift Performance

Precision-calibrated circuitry minimizes measurement deviation under varying ambient temperatures. RTD signal drift maintains ±0.3Ω per 10°C while POT signal drift stays within ±0.4% per 10°C. Strict factory calibration ensures reliable long-cycle operation without frequent on-site recalibration.

Optimized Wiring Resistance Tolerance

Yokogawa AAR145‑S00 supports maximum 150Ω per-wire wiring resistance for RTD loops, adapting to long-distance field sensor deployment. Built-in resistance compensation offsets signal attenuation from extended cable runs. Adaptive tolerance design guarantees accurate readings for remotely installed sensing devices.

5. Native CENTUM VP System Compatibility

Standard FIO Backplane and Bus Matching

Yokogawa AAR145‑S00 complies with exclusive FIO backplane and ESB bus specifications for CENTUM VP DCS platforms. Plug-and-play installation enables automatic system recognition and fast bus handshake. No external adapters or firmware modifications are required for full system integration.

Low Power Consumption Operational Design

The module operates with 350mA maximum current draw under 5V DC power supply, ensuring low heat generation during 24/7 continuous operation. Efficient power circuit design avoids thermal interference with adjacent cabinet modules. Stable power consumption supports long-term unattended industrial operation.

6. Core Industrial Application Scenarios

Multi-Point Industrial Temperature Monitoring

Chemical, petrochemical and power generation facilities deploy Yokogawa AAR145‑S00 for boiler, pipeline and reactor temperature tracking. High-density RTD sensing captures distributed thermal data for process trend analysis and over-temperature alarm interlocks. Accurate thermal measurement sustains safe production loop operation.

Mechanical Position and Displacement Feedback

Processing and automation plants utilize Yokogawa AAR145‑S00 for potentiometer-based position monitoring. The module collects displacement signals from valve actuators, dampers and mechanical travel components. Real-time position data supports precise stroke adjustment and equipment status verification.

DCS System Sensing Function Expansion

Existing CENTUM VP system upgrade projects adopt Yokogawa AAR145‑S00 for temperature and position monitoring expansion. Standard FIO dimensional and protocol compatibility ensures seamless retrofit integration. Fast module deployment minimizes project downtime and debugging workload.

7. Key Reasons to Adopt Yokogawa AAR145‑S00

Dual Sensing Function Reduces Hardware Types

Combined RTD temperature and POT position acquisition replaces two independent single-function modules. Integrated dual-purpose design simplifies spare part inventory classification and reduces procurement costs. Unified hardware standardizes field sensing loop configuration.

Full Isolation Eliminates Field Interference Risks

Multi-layer isolation structure shields weak resistance-based sensing signals from industrial electromagnetic noise. Cross-channel fault isolation prevents widespread data anomalies during field wiring faults. Reliable anti-interference performance ensures consistent measurement accuracy in complex plant environments.

High-Density Layout Optimizes Project Costs

16-channel high-capacity sensing minimizes rack space occupation for multi-point monitoring systems. Compact single-slot design cuts cabinet expansion and wiring expenses. Low maintenance requirements reduce long-term operational and inspection workloads.
