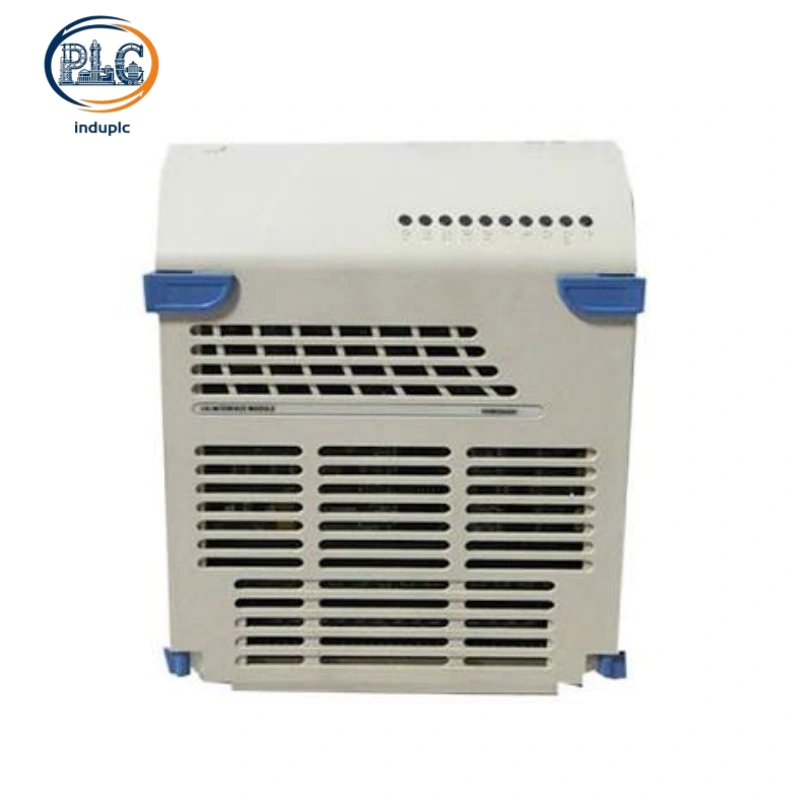

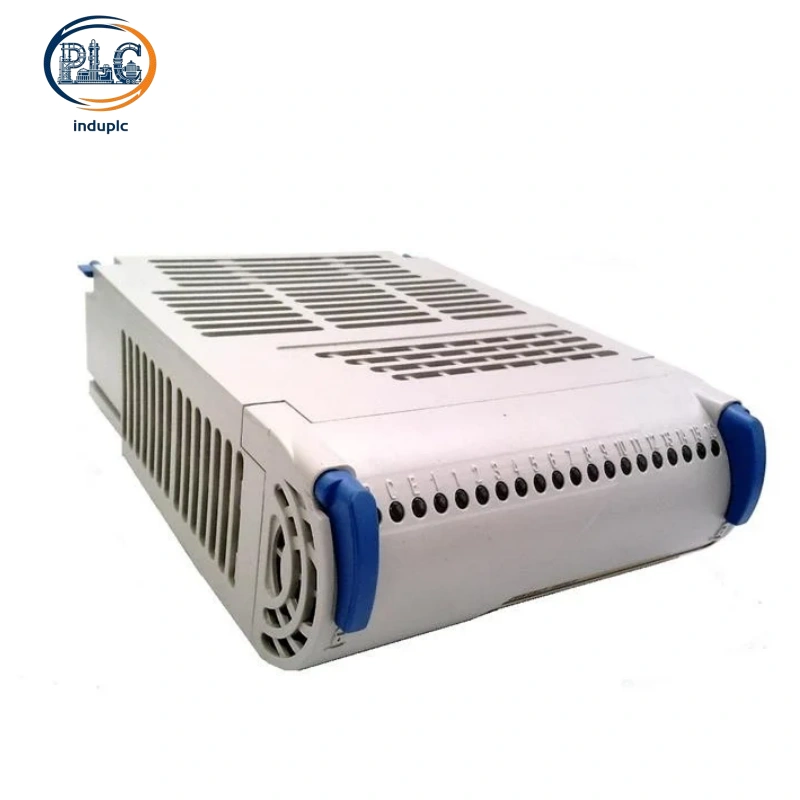

Westinghouse 1C31234G01 16-Channel Contact Input Module, 48VDC Opto-Isolated Hot-Swappable Ovation DCS Field Status Unit

Westinghouse 1C31234G01 16-Channel 48VDC Opto-Isolated Contact Input Module for Ovation DCS Field Status Monitoring

Westinghouse 1C31234G01 undertakes high-efficiency dry contact signal collection for Ovation distributed control systems. The module acquires real-time on-off states from field relays, limit switches and interlock devices. Westinghouse 1C31234G01 maintains precise low-latency signal recognition for continuous industrial control loop operation.

1. Hot-Swappable Field Maintenance Advantages

Non-Stop Module Replacement Design

Westinghouse 1C31234G01 supports full hot-swap operation during active DCS system runtime. Field teams replace faulty or aging modules without system shutdown or control logic suspension. Live maintenance capability eliminates production downtime caused by routine hardware upkeep and module iteration.

Grouped Channel Diagnostic Feedback

Built-in grouped diagnosis circuits monitor 4×8 channel subgroups for targeted anomaly detection. Onboard LED indicators display channel activation status and group-level faults for rapid on-site screening. Partitioned status monitoring simplifies fault localization compared with conventional unified I/O modules.

2. 48VDC Industrial Signal Acquisition Performance

Stable 48VDC Nominal Voltage Adaptation

Westinghouse 1C31234G01 features dedicated 30–60VDC wide input range centered on 48VDC industrial standards. Broad voltage tolerance adapts to fluctuating field loop voltage in power plant and chemical workshop environments. Standard voltage matching fits universal 48V dry contact field device specifications.

10ms Ultra-Fast Signal Response

Optimized signal processing circuits deliver ≤10ms response time for on/off state transitions. Fast signal capture records transient field contact changes without data omission. Low-latency performance ensures timely system response for critical interlock and protection control loops.

3. High-Safety Opto-Isolation Protection Mechanism

500Vrms Channel-to-Logic Isolation

Westinghouse 1C31234G01 integrates independent opto-isolators for every input channel. 500Vrms dielectric isolation separates field loop circuits from internal DCS logic systems. Optical isolation blocks ground loop current, surge voltage and electromagnetic noise to prevent core system circuit damage.

Dry Contact & Solid-State Signal Compatibility

The module supports dual signal types including mechanical dry contacts and 48VDC solid-state output devices. Flexible signal adaptation covers diverse field monitoring equipment without auxiliary conversion hardware. Universal signal compatibility reduces on-site configuration complexity and spare part types.

4. Compact High-Density Hardware Layout

16-Channel Single-Slot Integration

Westinghouse 1C31234G01 integrates 16 independent input channels within one standard Ovation chassis slot. High-density channel layout maximizes cabinet space utilization for large-scale status monitoring projects. Compact structural design cuts overall cabinet deployment volume for dense I/O configurations.

Optimized Low-Power Circuit Design

Each channel operates at 4mA typical closed-loop current to reduce long-term power consumption. Low-power circuit layout minimizes module heat accumulation during 24/7 continuous operation. Stable power operation slows component aging and extends overall module service life.

5. Native Ovation DCS System Compatibility

Plug-and-Play Chassis Integration

Westinghouse 1C31234G01 adopts standard Ovation form factor for direct backplane installation. Factory-calibrated firmware enables automatic bus identification and data handshake after insertion. Zero manual programming shortens system debugging and equipment replacement cycles.

Consistent System Data Synchronization

The module maintains precise clock synchronization with Ovation main controllers and auxiliary I/O modules. Unified data uploading timing guarantees consistent field status feedback across the entire control system. Coordinated system operation stabilizes interlock logic judgment and equipment linkage accuracy.

6. Harsh Environment Adaptability & Industrial Application

Westinghouse 1C31234G01 withstands standard industrial temperature fluctuation, dust deposition and mild mechanical vibration. Rugged industrial-grade structure supports long-term unattended operation in power generation stations, petrochemical plants and process control workshops. The module focuses on equipment status feedback, interlock condition monitoring and safety loop signal acquisition for core Ovation DCS control systems.
