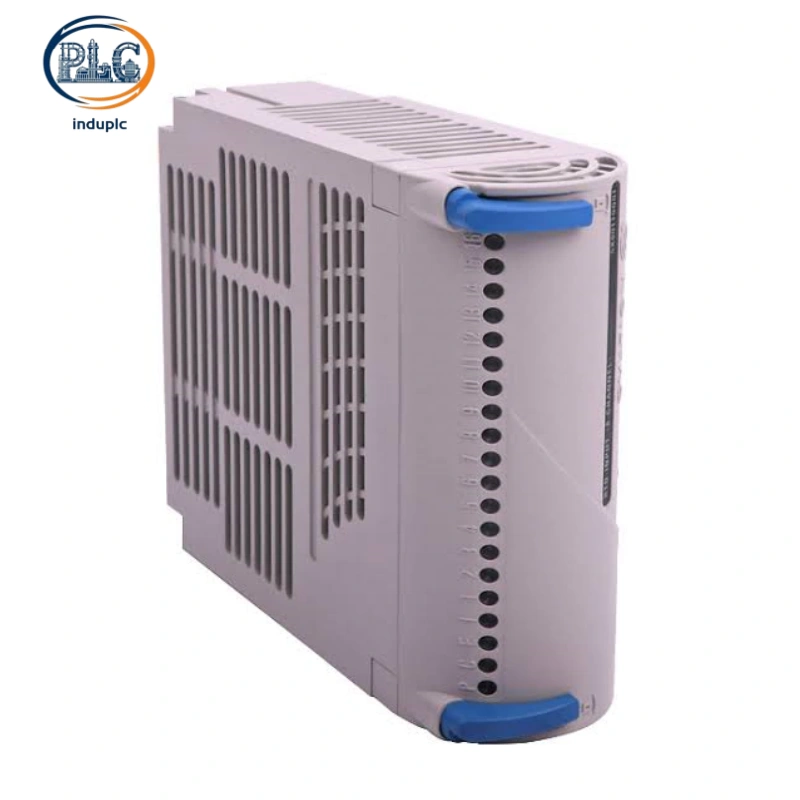

Westinghouse 1C31230G01 Digital Input Module, Wetting Voltage Enabled 24VDC Ovation DCS Field Signal Detection Unit

Westinghouse 1C31230G01 Wetting Voltage Supported 24VDC Digital Input Module for Ovation DCS Field Signal Detection

Westinghouse 1C31230G01 undertakes accurate discrete signal detection tasks for Ovation distributed control systems. The module acquires on-site switching state signals and filters invalid pulse interference to transmit validated data to core controllers. Westinghouse 1C31230G01 stabilizes field signal identification for long-cycle industrial safety monitoring operation.

1. Intelligent Signal Filtering & Wetting Voltage Function

Configurable Signal Filtering Logic

Westinghouse 1C31230G01 supports adjustable filtering parameters via standard Ovation system software. Customizable response time eliminates transient pulse noise and intermittent signal jitter common in industrial field loops. Targeted signal screening improves data validity and avoids false state judgment in process monitoring systems.

Integrated Wetting Voltage Detection

Built-in wetting voltage circuits enable automatic open-wire fault diagnosis for field signal loops. The module identifies circuit disconnection, loose wiring and sensor anomalies through voltage state feedback. Active fault detection simplifies hidden danger inspection for long-distance field signal wiring networks.

2. Optimized Backplane Power Operation & Hardware Layout

Chassis Backplane Powered Design

Westinghouse 1C31230G01 draws operating power directly from Ovation chassis backplane without external power terminals. Integrated power structure reduces on-site wiring complexity and eliminates auxiliary power accessory failure risks. Stable backplane power docking maintains continuous module operation under full chassis load conditions.

Compact Slide-In Modular Structure

Standard slide-in form factor matches conventional Ovation I/O chassis specifications for one-step installation and locking. Compact hardware layout improves cabinet space utilization for dense I/O configuration scenarios. Uniform mechanical dimensions support standardized spare part replacement and inventory management.

3. Reliable Industrial-Grade Operational Stability

Controlled Temperature Range Adaptation

Westinghouse 1C31230G01 maintains consistent detection performance within 0°C to 60°C industrial temperature ranges. Selected industrial components resist heat accumulation in enclosed cabinet environments and ambient temperature fluctuations. Stable electrical properties prevent signal sampling deviation under variable working conditions.

Multi-Dimensional Circuit Protection

Internal overvoltage and surge suppression circuits shield signal channels from field transient voltage impact. Built-in electromagnetic shielding weakens on-site power frequency interference and radiation noise. Comprehensive protection mechanism ensures stable signal acquisition in complex industrial electromagnetic environments.

4. Intuitive Group Diagnostics & On-Site Maintenance

Visual Group Fault Indication

Embedded LED status indicators display real-time module operating state, channel activation status and group fault alarms. Centralized visual feedback allows rapid anomaly positioning during daily equipment inspections. Clear state display reduces time consumption for field troubleshooting and system debugging.

Hot-Swap Compatible Structure

Westinghouse 1C31230G01 supports non-stop module replacement during system normal operation. Hot-swap compatible design avoids overall system shutdown and logic suspension for single-module maintenance. On-site maintenance efficiency improves while industrial production continuity remains guaranteed.

5. Native Ovation DCS Compatibility & Industrial Application

Full System Firmware Adaptation

Westinghouse 1C31230G01 features factory-calibrated firmware matching Ovation DCS system protocols. Automatic system identification and bus handshake take effect immediately after installation. Zero auxiliary configuration realizes fast integration for system upgrades and equipment renovation projects.

Wide Process Industry Applicability

Westinghouse 1C31230G01 applies to thermal power generation, petrochemical processing and energy automation control sites. The module provides reliable discrete signal detection for equipment start-stop status feedback, interlock condition monitoring and safety alarm loop signal acquisition.
