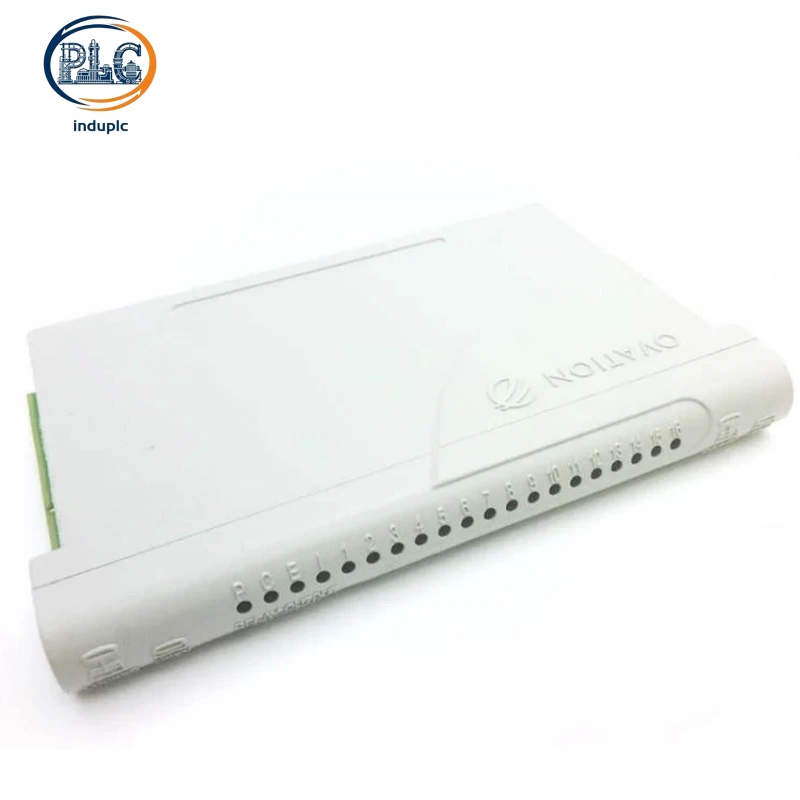

Westinghouse 1C31219G01 Relay Digital Output Module, 16-Channel Form C 5A 250VAC Ovation DCS Switch Control Unit

Westinghouse 1C31219G01 16-Channel Form C Relay Digital Output Module for Ovation DCS Field Switch Actuation

Westinghouse 1C31219G01 provides high-capacity relay switching output for Ovation distributed control systems. The module converts internal control logic signals into physical contact switching actions for field equipment. Westinghouse 1C31219G01 ensures stable load driving and safe loop operation for industrial interlock and protection systems.

1. Industrial-Grade Relay Contact Load Capacity

Standard Form C SPDT Channel Design

Westinghouse 1C31219G01 adopts universal Form C single-pole double-throw relay structure for all 16 independent channels. Each channel supports flexible normally open and normally closed signal switching to match diverse field control logic. Standard relay contact configuration fits mainstream industrial actuator and protection device docking requirements.

High-Reliability Voltage and Current Rating

The module delivers 5A continuous resistive load capacity under 250VAC and 120VDC operating conditions. Stable contact current bearing capacity avoids overload burnout during frequent switching cycles. Strict factory load testing guarantees consistent output performance under rated industrial working conditions.

2. Full Channel Isolation & Operational Safety Mechanism

Per-Channel Electrical Isolation Protection

Westinghouse 1C31219G01 equips every output channel with independent electrical isolation barriers. Isolated circuit design blocks cross-channel interference and external surge current penetration. Independent channel protection prevents single-point fault diffusion and protects core DCS system circuits from field electrical anomalies.

Anti-Arcing & Switching Stability Optimization

Built-in arc suppression structures reduce electric spark generation during high-frequency switching actions. Optimized relay contact materials extend mechanical service life under long-term cyclic operation. Enhanced switching stability lowers equipment misoperation risks in critical process control loops.

3. Wide Environmental Adaptability for Field Deployment

Extended Industrial Temperature Tolerance

Westinghouse 1C31219G01 operates steadily within -20°C to +70°C wide temperature ranges. Carefully screened industrial components resist temperature cycling and ambient humidity changes in equipment rooms and field cabinets. Consistent mechanical and electrical performance supports 24/7 unattended industrial operation.

Rugged Anti-Dust & Anti-Vibration Structure

Sealed modular packaging prevents internal dust accumulation and humid air erosion. Reinforced mechanical structure withstands mild equipment vibration and industrial site impact. Durable physical design adapts to harsh working conditions of thermal power and petrochemical production workshops.

4. Native Ovation DCS System Integration Advantages

Plug-and-Play Chassis Compatibility

Westinghouse 1C31219G01 features standard Ovation chassis form factor for direct slot installation and locking. Factory pre-configured firmware achieves automatic system identification and bus handshake. No additional configuration tools shorten system debugging and module replacement downtime.

Synchronized System Logic Execution

The module maintains precise clock synchronization with Ovation main controllers and auxiliary I/O modules. Unified signal output timing ensures accurate execution of interlock protection and sequence control logic. Coordinated system operation stabilizes overall process control loop performance.

5. Low Maintenance & Practical Field Value

Visual Channel Status Diagnosis

Onboard LED indicators display real-time switching status of each relay channel. Intuitive visual feedback accelerates daily inspection and on-site fault location. Clear status indication reduces technical difficulty of routine equipment maintenance.

High-Density Space-Saving Layout

16-channel high-density integration optimizes cabinet space utilization for large-scale switching control projects. Centralized relay output design reduces redundant hardware deployment and simplifies on-site wiring layout. Compact modular structure lowers long-term spare part management costs.

6. Core Industrial Application Scenarios

Westinghouse 1C31219G01 serves critical switching control links in thermal power generation, chemical processing and energy industrial sites. The module undertakes equipment start-stop control, interlock protection action, alarm signal output and auxiliary system linkage tasks, providing reliable relay drive support for Ovation DCS automatic control systems.
