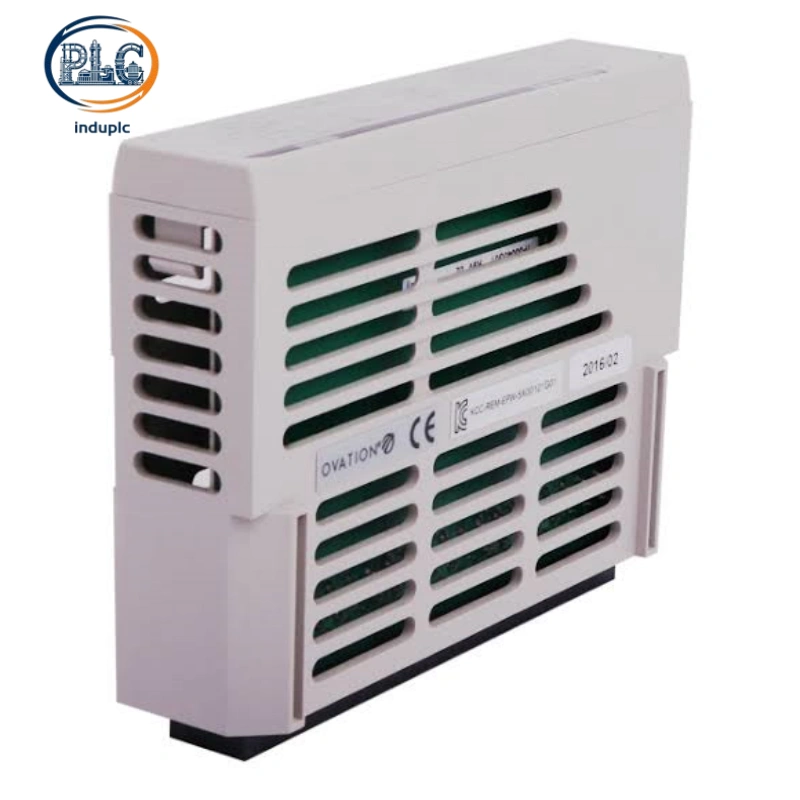

Westinghouse 1C31191G01 Contact Input Module, Isolated 125VDC Ovation DCS Field Status Monitoring Unit

Westinghouse 1C31191G01 125VDC Isolated Contact Input Module for Ovation DCS Interlock Status Monitoring

Westinghouse 1C31191G01 specializes in passive dry contact signal acquisition for Ovation distributed control systems. The module collects mechanical contact state changes from field protective devices and switching equipment. Westinghouse 1C31191G01 provides isolated signal transmission to secure core DCS control logic from field circuit interference.

1. Specialized Isolated Contact Signal Acquisition Design

125VDC Industrial Rated Input Capacity

Westinghouse 1C31191G01 supports 125VDC field loop voltage matching, fitting high-voltage contact circuits widely deployed in power generation facilities. Rated voltage tolerance adapts to standard protective relay contact output specifications. Precise voltage threshold design avoids false triggering caused by residual circuit voltage.

Full Galvanic Channel Isolation

Independent isolation barriers separate each signal channel from internal DCS logic circuits. Galvanic isolation blocks ground loop current and transient surge voltage from field equipment. Isolated channel structure eliminates cross-channel coupling and improves signal authenticity in complex wiring environments.

2. Streamlined Field Deployment & Compatibility Advantages

Universal Dry Contact Signal Adaptation

Westinghouse 1C31191G01 identifies passive on-off states from relays, circuit breakers, limit switches and interlock devices. No external signal conversion accessories are required for standard field equipment docking. Broad signal compatibility simplifies on-site peripheral hardware configuration.

Plug-and-Play Ovation Chassis Integration

Standard Ovation form factor enables direct insertion into dedicated system slots. Pre-calibrated firmware achieves immediate bus recognition after installation. Fast integration reduces system downtime during module replacement and project expansion operations.

3. Long-Term Operational Stability & Fault Resistance

Anti-Interference Industrial Circuit Layout

Optimized internal circuit layout suppresses industrial frequency noise and electromagnetic radiation interference. Hardware filtering eliminates transient pulse signals that trigger incorrect state judgments. Stable signal identification maintains accurate status feedback during full-time system operation.

Durable Mechanical & Environmental Resistance

Industrial-grade component assembly withstands long-term temperature fluctuation and ambient humidity changes. Sealed structural design prevents dust accumulation and corrosive gas erosion. Rigid hardware construction supports 24/7 unattended operation in critical industrial control rooms.

4. Intuitive Diagnostics & Low Maintenance Overhead

Channel-Specific Status Indication

Embedded LED indicators display real-time on-off status of each contact input channel. Visible working state feedback accelerates on-site inspection and anomaly screening. Direct visual judgment reduces reliance on backend system debugging tools.

Standard Modular Maintainability

Integrated modular structure supports independent single-module replacement without chassis modification. Uniform size specifications match conventional Ovation rack layouts. Standardized design optimizes spare part management for industrial automation teams.

5. Target Industrial Application Scenarios

Westinghouse 1C31191G01 serves core status monitoring links in thermal power stations, combined-cycle power plants and heavy process industrial sites. The module tracks interlock switch states, protective relay actions and circuit breaker positions to support safe system startup, emergency protection and process loop steady operation.
