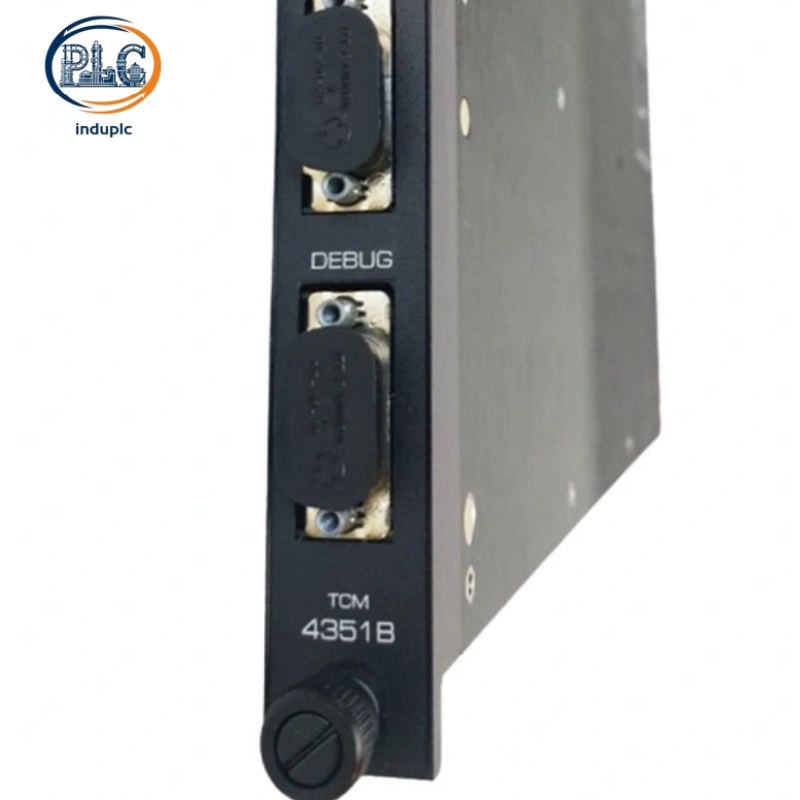

Triconex 4351B TCM Communication Module, Dual 10/100Mbps Ethernet & 4-Port RS232/RS485 Multi-Protocol TMR Fault-Tolerant SIS Interface Unit

Triconex 4351B Multi-Port TCM Communication Module for Hybrid Ethernet & Serial SIS System Interfacing

Triconex 4351B is a hybrid multi-interface TCM communication module in the Triconex 4300 series, functionally differentiated from pure Ethernet-based 4315B and high-end gigabit 4329A modules. Designed to unify industrial Ethernet and traditional serial communication, this module combines dual fast Ethernet networking and multi-channel serial transceiver functions, solving the compatibility challenges of mixed new and legacy field devices in SIS systems. Adhering to standard Tricon TMR fault-tolerant architecture and industrial isolation protection, Triconex 4351B provides stable, multi-functional data exchange capabilities for complex hierarchical industrial safety control networks.

1. Hybrid Dual Ethernet & Multi-Serial Port Architecture

Dual 10/100Mbps Auto-Sensing Ethernet Ports

Triconex 4351B features two independent RJ45 Ethernet ports with 10/100Mbps auto-adaptive transmission capability, supporting flexible redundant network deployment and automatic link switching during single-port or cable failure. The fast Ethernet design perfectly matches conventional industrial network bandwidth demands, delivering stable and low-latency data transmission for daily safety parameter interaction, system status reporting and remote debugging. Dual-port hot-standby backup effectively eliminates network single-point failures and ensures long-term communication continuity for unattended SIS operation.

4-Channel Configurable RS232/RS485 Serial Interface

Equipped with four universal configurable serial ports, the module supports switchable RS232 and RS485 communication modes, adapting to diverse legacy field transmitters, intelligent instruments and third-party serial devices. Each channel supports a maximum baud rate of 115.2kbps, covering mainstream industrial serial transmission speed standards. The integrated multi-serial design eliminates the need for additional independent serial communication modules, greatly simplifying on-site cabinet wiring and system I/O architecture layout for hybrid networking scenarios.

2. Industrial-Grade Isolation & Stable Hardware Performance

500VDC Reinforced Port-to-Chassis Isolation

All Ethernet and serial ports of Triconex 4351B adopt 500VDC industrial-grade dielectric isolation design, forming complete electrical separation between external field equipment and internal SIS core circuits. The high-strength isolation barrier effectively blocks ground loop current, common-mode interference and transient surge voltage in complex industrial environments, preventing external equipment faults from penetrating and affecting the normal operation of safety instrumented systems. Isolated channel design also avoids crosstalk between multi-channel serial and Ethernet signals, ensuring pure and accurate data transmission.

Embedded Stable Memory & Low-Power Operation

Built with 1MB RAM and 4MB flash memory, the module provides sufficient storage space for protocol operation, data caching and fault log recording, supporting stable long-term cyclic data processing and event storage. Optimized low-power circuit structure avoids excessive heat accumulation during full-load multi-channel concurrent operation, reducing component aging rate and improving overall module durability, fully adapting to long-cycle uninterrupted industrial operation requirements.

3. Full-Spectrum Industrial Protocol Compatibility

Modbus TCP/RTU Dual Protocol Support

Triconex 4351B natively supports Modbus TCP Ethernet protocol and Modbus RTU serial protocol, covering mainstream industrial automatic data interaction standards. It can seamlessly connect Tricon SIS systems with DCS monitoring platforms, SCADA remote control systems and field intelligent devices, realizing two-way reading and writing of process parameters, safety loop status and equipment operating data. Dual-protocol adaptation enables one module to docking both network-based and serial-based automation equipment.

TSAA, Peer-to-Peer & Extended Protocol Adaptation

In addition to universal Modbus protocols, the module supports dedicated TSAA (Triconex System Access Application) protocol for exclusive Tricon system configuration, program downloading and remote diagnosis. It also supports UDP/IP-based peer-to-peer communication and SNTP clock synchronization functions, realizing inter-device data transparent transmission and unified system time calibration. Rich protocol clusters meet multi-scenario communication demands of system maintenance, field data collection and cross-device linkage control.

4. Standard TMR Fault Tolerance & Intelligent Diagnostics

2oo3 Voting Triple Modular Redundant Architecture

Consistent with Tricon SIS core safety specifications, Triconex 4351B inherits complete TMR triple modular redundant processing mechanism. Three independent internal processing units perform parallel analysis and verification on all Ethernet and serial transmission data. The 2-out-of-3 intelligent voting mechanism automatically filters abnormal data packets, transmission errors and interference signals caused by single hardware failure or external electromagnetic disturbance, completely eliminating system communication single-point failure risks and meeting SIL3 safety operation standards.

Full-Coverage Link Status Monitoring

Continuous background diagnostic routines real-timely monitor Ethernet link status, serial channel signal quality, baud rate matching, data error rate and internal hardware operating status. Front panel LED indicators intuitively display port working status and fault alarm information for rapid on-site inspection and troubleshooting. All abnormal logs and operating data synchronize to TriStation software for centralized remote management and precise fault positioning, minimizing system communication maintenance downtime.

5. System Compatibility & Harsh Environment Adaptability

Wide System Version Adaptation

Triconex 4351B is fully compatible with Tricon system firmware V9.6 and above versions, supporting hot-swap online replacement without suspending SIS safety logic operation and field data interaction. It adapts to new project construction and legacy system renovation scenarios, providing efficient and compatible hybrid communication upgrade solutions for old SIS systems with a large number of serial field devices.

Rugged Industrial Environmental Durability

The module operates stably in standard industrial temperature range, resisting 5%–95% non-condensing humidity, industrial dust accumulation and mechanical vibration. Industrial-grade component packaging and anti-interference circuit design ensure stable multi-channel concurrent communication performance in harsh industrial scenarios such as petrochemical workshops, power plant equipment rooms and gas processing sites.

6. Safety Certification & Target Industrial Applications

Triconex 4351B complies with IEC 61508 functional safety standards and holds SIL3 safety integrity level certification, along with CE and UL industrial safety approvals. Widely applied in petrochemical refining, natural gas processing, thermal power generation and process manufacturing industries, the module is mainly used for hybrid networking of new network devices and legacy serial instruments, SIS-DCS cross-system data interconnection, remote system debugging and safety equipment status monitoring, supporting core safety systems such as ESD emergency shutdown and fire & gas monitoring systems.
