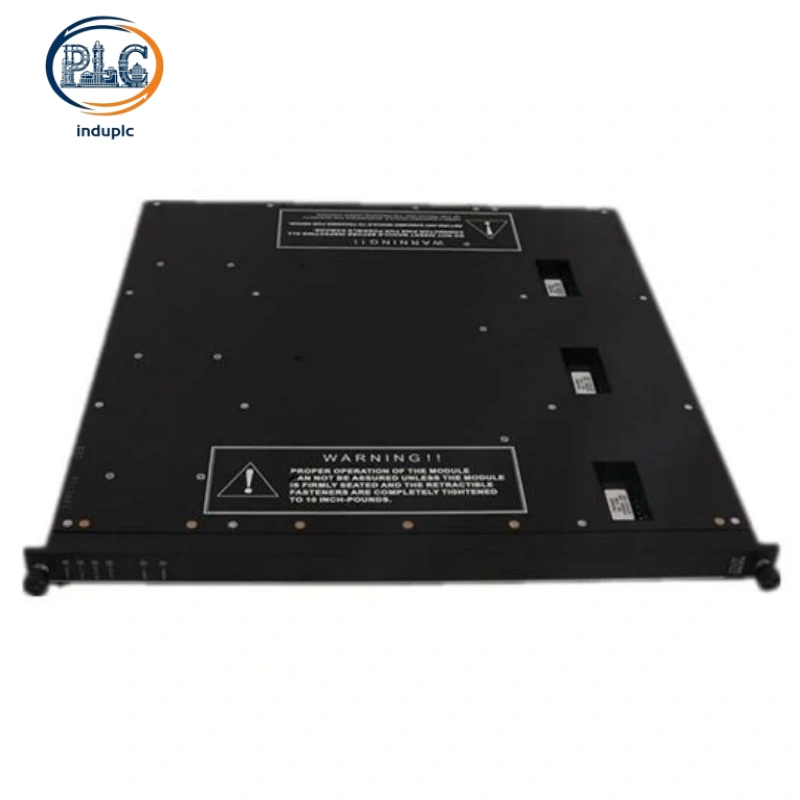

Triconex 3805E 8-Channel 12-Bit Analog Output Module, 4-20mA High-Load TMR Fault-Tolerant SIS Process Control Unit

Triconex 3805E High-Stability 8-Channel 4-20mA Analog Output Module for Tricon SIS Precision Regulation

Triconex 3805E is a dedicated analog output module in the Triconex 3800 series, designed exclusively for Tricon triple modular redundant safety instrumented systems. Optimized for universal industrial 4-20mA current loop control, Triconex 3805E focuses on steady actuator driving and process parameter regulation, differing from high-density digital I/O and high-bit precision analog modules. Triconex 3805E integrates reliable load adaptation and rapid fault response mechanisms to ensure uninterrupted safety control output. Triconex 3805E serves as a cost-effective and stable core control unit for conventional and medium-precision industrial safety loops.

1. Standard 4-20mA Loop Specification & High Load Adaptability

Industry Universal Current Output Range

Triconex 3805E supports standard 4-20mA analog current output, fully compatible with mainstream industrial regulating actuators including proportional valves, positioners and variable-speed control devices. The module reserves +6% factory-calibrated overrange tolerance, extending valid output up to 21.2mA to adapt transient process parameter surges and equipment startup fluctuations. Standard loop specifications ensure seamless matching with most field control devices in petrochemical, power and gas processing industries.

250Ω High Load Driving Capacity

With a maximum 250Ω resistive load driving capability, Triconex 3805E accommodates various long-distance field wiring and multi-device series connection scenarios. The enhanced load design avoids output attenuation or signal distortion caused by excessive loop impedance, maintaining stable current output accuracy under full-load operating conditions. Reliable load tolerance reduces on-site loop transformation requirements and simplifies field engineering deployment.

2. 12-Bit Precision & Strict Industrial Accuracy Performance

Stable 12-Bit Digital-to-Analog Conversion

Equipped with professional 12-bit resolution conversion chips, Triconex 3805E delivers graded and smooth current output adjustment for conventional process regulation scenarios. Balanced precision and response speed eliminate output jitter during dynamic parameter tuning, ensuring steady actuator operation. The fixed-resolution design features mature and stable circuit logic, lowering long-term failure rates and simplifying routine maintenance.

Ultra-Low Full-Scale Output Deviation

The module maintains excellent accuracy performance with full-scale error lower than 0.25% FSR within the standard 0°C to 60°C industrial temperature range. Built-in temperature drift compensation technology automatically offsets precision deviation caused by ambient temperature changes, ensuring consistent output accuracy throughout long-term operation. Strict factory calibration guarantees uniform control precision across all 8 channels without individual point discrepancy.

3. Fast Fault Response & Comprehensive Overvoltage Protection

10ms Rapid Fault Switching Mechanism

Triconex 3805E features a typical <10ms leg failure switching response, enabling extremely fast state switching and fault isolation during internal circuit anomalies or loop failures. This rapid response characteristic prevents continuous abnormal output from affecting process equipment, effectively avoiding safety risks caused by delayed fault disposal. Timely fault response ensures the continuity and safety of critical process control loops.

42.5VDC Continuous Overvoltage Resistance

Reinforced overvoltage protection circuitry withstands continuous 42.5VDC transient surge input, effectively shielding internal precision conversion components from field loop surge impact, static induction and wiring faults. The industrial-grade protection structure eliminates module burnout and signal failure risks under harsh electrical conditions, greatly improving equipment durability and on-site operational stability.

4. TMR Fault-Tolerant Architecture & Real-Time Loop Diagnostics

2oo3 Tribus Voting Redundant Logic

Adopting standard Tricon triple modular redundant safety framework, Triconex 3805E operates three independent internal processing channels for parallel output calculation and 2-out-of-3 voting verification. The intelligent voting mechanism filters abnormal output signals triggered by single-component aging, electromagnetic interference or local circuit faults. The redundant design completely eliminates system single-point failures and ensures zero misoperation of safety control commands.

Full-Coverage Loop Health Monitoring

Continuous background diagnostic programs monitor key loop status including load open circuit, overload abnormality, signal deviation and internal hardware faults in real time. Front panel LED indicators display module operating status and fault alarms for intuitive on-site inspection. All fault data synchronizes with TriStation software for centralized logging, remote diagnosis and precise fault positioning, minimizing safety loop maintenance downtime.

5. Environmental Durability & System Compatibility

Wide-Temperature Harsh Environment Adaptation

Triconex 3805E achieves full functional stability across -40°C to +70°C ultra-wide industrial temperature range, adapting to extreme temperature cycling in enclosed cabinets and outdoor industrial sites. It tolerates 5%–95% non-condensing humidity, mechanical vibration and industrial dust accumulation, complying with rigorous industrial environmental standards. Rugged component packaging ensures long-term stable regulation performance for unattended SIS system operation.

Hot-Swap Support & Seamless System Integration

The module adopts standard Tricon chassis backplane interface, fully compatible with mainstream Tricon SIS firmware versions. It supports hot-swap online replacement without suspending safety logic or interrupting production operations, effectively reducing unplanned industrial downtime. Compact 8-channel layout balances functional integrity and cabinet space utilization, suitable for medium-scale process safety regulation system deployment.

6. Safety Certification & Industrial Application Scenarios

Triconex 3805E complies strictly with IEC 61508 functional safety standards and obtains authoritative SIL3 safety integrity level certification, along with CE, UL and ATEX hazardous area approvals. Widely applied in petrochemical refining, natural gas processing and power generation facilities, the module undertakes analog closed-loop regulation of process temperature, pressure and flow parameters. It serves core safety systems such as ESD auxiliary regulation, burner management and process interlock control loops requiring stable 4-20mA analog output.
