1. Core Technical Parameters

Operating Voltage：24VDC / 48VDC

Analog Output：2 channels, 4~20mA / 0~10VDC

Digital Output：4 channels

Isolation Voltage：1500VAC between channels

Working Temperature：-30℃ ~ +70℃

Communication Bus：Modbus, PROFIBUS, Ethernet

Protection Class：IP20

2. Compatibility & Expandability

Same-brand Compatibility

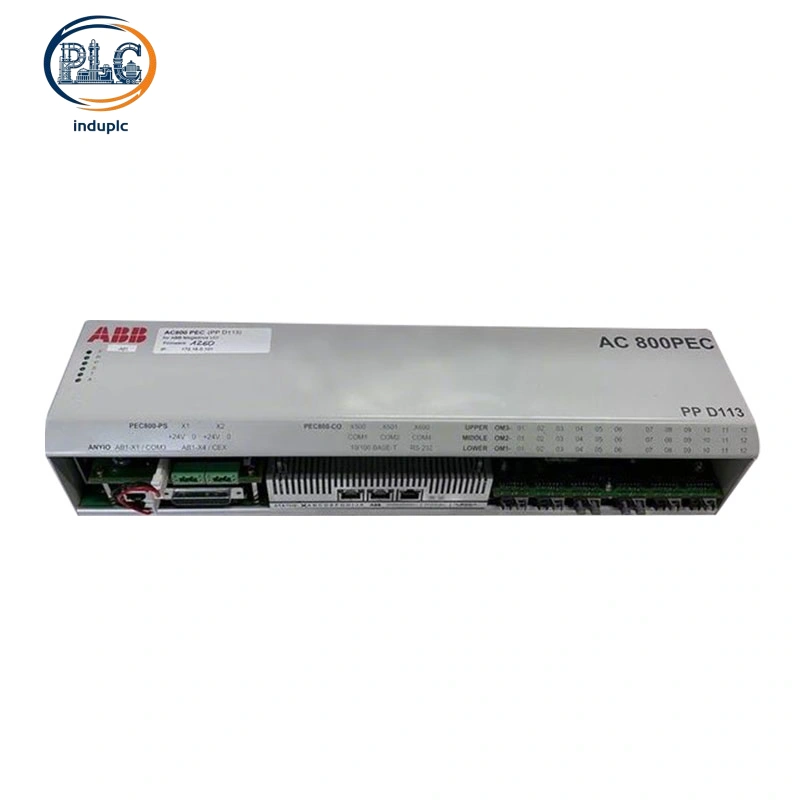

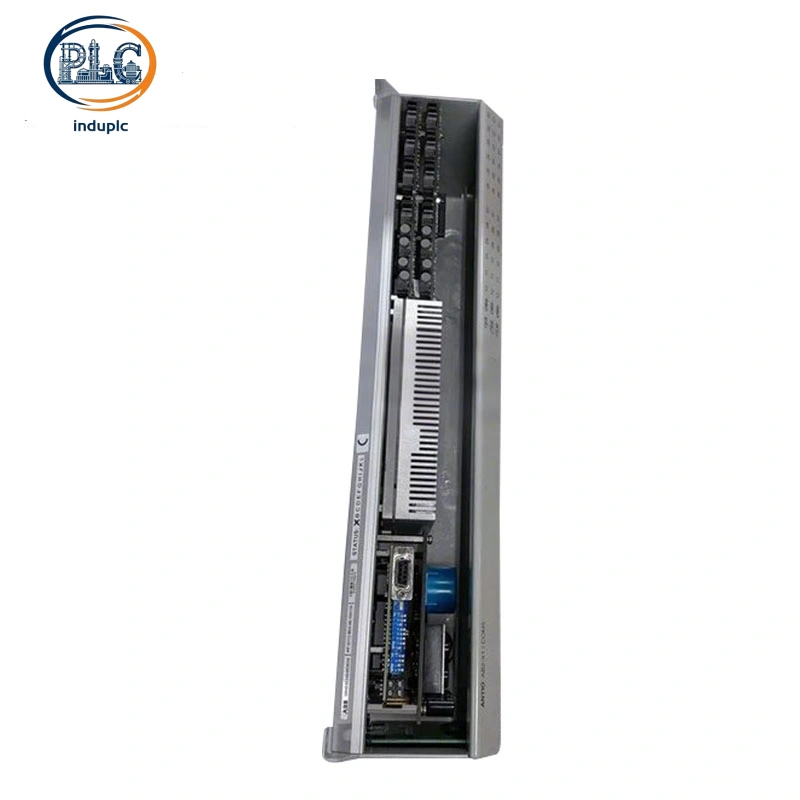

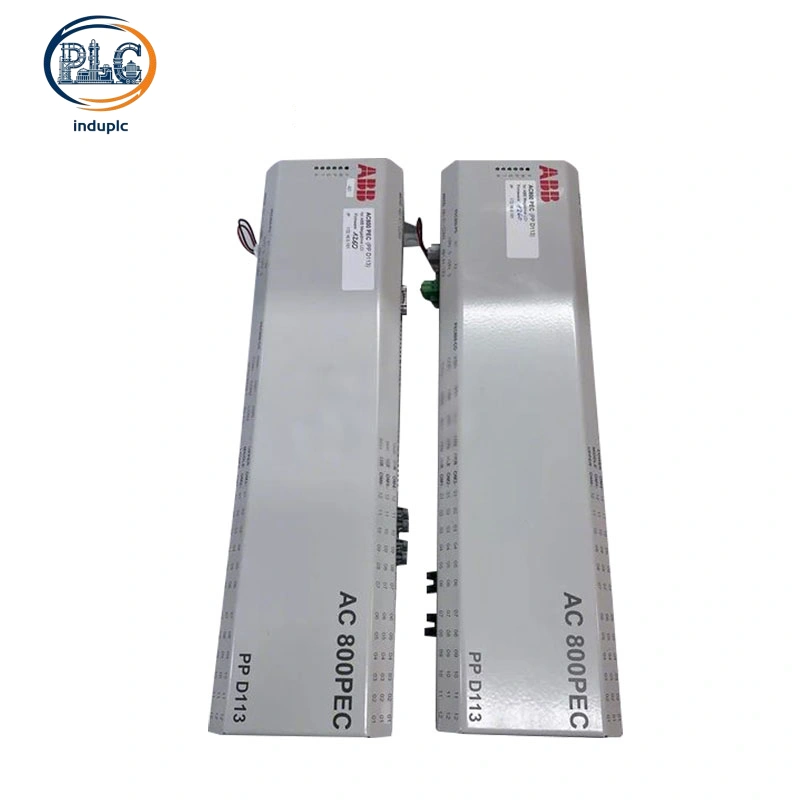

ABB PPD113B03 belongs to AC800PEC product series of ABB. Equipment assemblers mount multiple ABB PPD113B03 on standard rack backplane to increase available signal terminals during system upgrade. ABB PPD113B03 inserts into original cabinet slots and connects ABB ACS800 inverters without extra terminal adapters. Field technicians set address via onboard dial switches to realize stable data interaction between ABB PPD113B03 and ABB original field sensors.

Cross-brand Compatibility

Special backplane protocol stops direct signal linkage of ABB PPD113B03 with non-ABB main controllers. Extra protocol gateway becomes essential when matching ABB PPD113B03 with Siemens or Schneider PLC equipment. Standard industrial analog signals enable ABB PPD113B03 to connect most universal third-party transmitters without internal circuit modification.

3. Lifecycle Cost Analysis

Service life of ABB PPD113B03 lasts 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded

Annual routine maintenance cost: Regular calibration and dust clearance for ABB PPD113B03 costs 32 USD per year, total 10-year maintenance cost:320 USD

Spare part replacement cost: Core component replacement for ABB PPD113B03 happens once every 8 years, single spare part price:428 USD, total replacement cost within 10 years:428 USD

Retrofit expense saving: Existing wiring can be reused for ABB PPD113B03 in cabinet renovation, saving 272 USD compared with unmatched alternative modules

Total net running expense for single ABB PPD113B03 in 10 years: 476 USD
