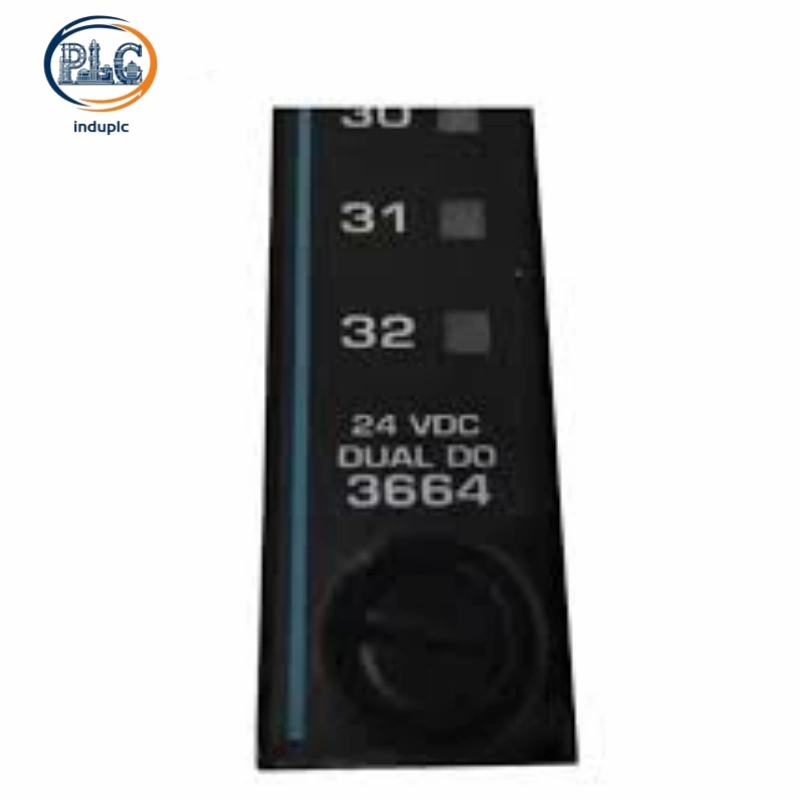

Triconex 3664 32-Channel Isolated Digital Output Module, 24VDC High-Surge TMR Fault-Tolerant Low-Power SIS Control Unit

Triconex 3664 Fully Isolated 32-Channel Digital Output Module for Tricon SIS Fault-Tolerant Control

Triconex 3664 is a high-density isolated digital output module belonging to the Tricon 3600 SIS series, engineered for high-reliability industrial safety control scenarios. Different from commoned output modules, Triconex 3664 adopts full independent channel isolation design for all 32 output points, completely eliminating cross-channel fault coupling risks. Triconex 3664 integrates high surge resistance and low-power circuit optimization to adapt harsh electromagnetic industrial environments. Triconex 3664 provides long-term stable fault-tolerant output guarantee for large-scale safety instrumented systems.

1. Full Isolated Channel Architecture and Wiring Reliability

32-Point Independent Isolated Circuit Layout

Triconex 3664 features a pure isolated channel structure with no shared power or grounding terminals for all 32 channels, differing significantly from commoned-type 3625 modules. Each output point operates independently as a standalone loop, ensuring single-channel short circuit or overload faults will not spread to adjacent channels or affect overall module operation. This full isolation design greatly improves system safety redundancy for high-demand safety loops with strict anti-fault requirements.

1500VDC High-Strength Isolation Protection

The module equips each channel with 1500VDC minimum dielectric isolation between field loops and system backplanes, effectively blocking transient voltage surges and ground loop noise interference. Reinforced insulation barriers resist electrical breakdown and electrostatic induction in high-electromagnetic-interference workshops. Professional isolation structure meets industrial EMC standards, ensuring signal output purity and loop operational stability in complex power environments.

2. 24VDC Wide-Range Electrical and Surge Resistance Performance

Stable Industrial Voltage Adaptation

Triconex 3664 supports a wide 16VDC to 30VDC operating voltage range with 24VDC nominal specification, fully accommodating common DC power fluctuations in industrial safety cabinets. Accurate internal voltage threshold calibration prevents misjudgment of on/off signals caused by unstable power supply, maintaining consistent output status under transient voltage rise and fall. Standard DC parameters match universal SIS power distribution standards for petrochemical and power generation facilities.

High Surge Current Tolerance and Load Driving

Each channel provides 0.5A continuous steady current for long-term driving of low-power safety loads including indicator lamps, alarm buzzers and miniature safety relays. The module supports 5A peak surge current within 7ms, perfectly tolerating instantaneous startup impact of inductive loads such as small solenoid valves. Built-in intelligent current limiting circuitry avoids overcurrent burnout and extends field loop service life during frequent switching operations.

3. Ultra-Low Power Consumption and Thermal Stability

Optimized Low-Power Circuit Design

Triconex 3664 adopts power-saving chip architecture and optimized circuit layout, with total module power consumption lower than 13W under full-load operation. Compared with high-current output modules, the low-power design effectively reduces cabinet heat accumulation and avoids temperature rise-induced performance attenuation. Stable low-power operation minimizes long-term thermal aging of internal components, improving overall module durability.

Continuous Thermal Balance Operation

Passive heat dissipation structure with reserved heat conduction gaps ensures uniform heat distribution during long-cycle full-load working conditions. No local overheating phenomenon occurs during frequent high-frequency switching output. Excellent thermal stability guarantees consistent output accuracy and fault diagnosis sensitivity throughout long-term unattended SIS system operation.

4. TMR Redundant Mechanism and Intelligent Diagnostics

Tribus Voting Fault-Tolerant Logic

Built with standard Tricon triple modular redundant architecture, Triconex 3664 runs three independent internal processing channels for parallel command execution and data voting. Only consistent multi-channel verification results can trigger valid field output, filtering abnormal signals caused by single-component failure or external interference. The TMR mechanism eliminates system single-point failures and ensures zero misoperation of critical safety commands.

Real-Time Loop Health Monitoring

Embedded background diagnostic circuits continuously monitor channel open circuits, load loss and abnormal current changes during runtime. Front panel LED indicators intuitively display module PASS/FAULT status and channel activation state. All fault data synchronizes with TriStation software for centralized logging, remote monitoring and rapid fault positioning, reducing safety loop maintenance difficulty.

5. System Compatibility, Environmental Adaptability and Industrial Application

Plug-and-Play System Integration

The module matches standard Tricon chassis backplane interface, supporting seamless compatibility with mainstream Tricon SIS firmware versions. Hot-swap maintenance function allows online module replacement without suspending safety logic or stopping production, minimizing unplanned industrial downtime. Standard rack size enables flexible system expansion and old system renovation projects.

Harsh Environment and Safety Certification

Triconex 3664 operates stably across -40°C to +70°C temperature range, adapting to extreme temperature cycling, dust accumulation and 5%–95% non-condensing humidity. It complies with IEC 61508 functional safety standards and obtains SIL3 safety integrity level certification, with CE, UL and ATEX hazardous area approvals. Widely applied in petrochemical refining, natural gas processing and power plants, it serves ESD emergency shutdown systems, fire and gas alarm control loops and auxiliary process safety interlock systems.
