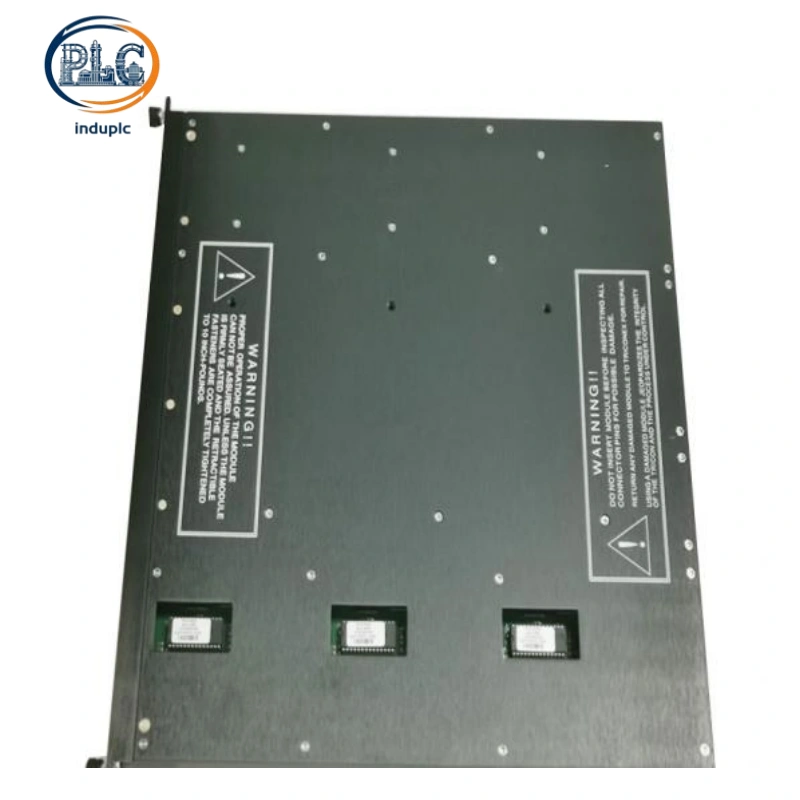

Triconex 3607E 16-Channel 48VDC Monitored Digital Output Module, TMR Fault-Tolerant High-Voltage SIS Control Unit

Triconex 3607E 48VDC High-Voltage Monitored Digital Output Module for Tricon SIS Safety Systems

Triconex 3607E is a specialized high-voltage digital output module optimized exclusively for Tricon triple modular redundant safety instrumented systems. Differentiated from conventional 24VDC output modules, Triconex 3607E focuses on 48VDC industrial load scenarios to support heavy-duty field safety equipment operation. Triconex 3607E retains full-loop monitored diagnosis and core TMR fault-tolerant architecture. Triconex 3607E provides reliable high-voltage safety output guarantee for high-load industrial process interlock and shutdown loops.

1. Exclusive 48VDC High-Voltage Electrical Performance

Stable Wide-Range High-Voltage Adaptation

Triconex 3607E features a dedicated 48VDC operating framework with effective working voltage ranging from 38VDC to 56VDC, adapting to high-voltage DC power supply systems commonly used in power plants and large chemical facilities. Strict voltage threshold calibration avoids signal judgment errors caused by high-voltage power fluctuation. The high-voltage design perfectly matches industrial 48VDC safety circuit specifications, filling the application gap of standard 24VDC output modules in high-load scenarios.

Durable High-Voltage Load Driving Capacity

Each independent channel supports stable continuous current output for 48VDC heavy-duty loads, including large-scale safety solenoid valves, high-power interposing relays and heavy-load alarm devices. Optimized internal circuit structure resists high-voltage breakdown and transient surge impact, preventing component aging and burnout during long-term high-voltage operation. Consistent output stability ensures accurate execution of safety interlock commands under full-load working conditions.

2. Full-Loop Monitored Diagnostic & Early Warning Mechanism

Real-Time High-Voltage Loop Health Detection

Triconex 3607E integrates exclusive high-voltage adaptive diagnostic circuits, realizing full-coverage real-time monitoring for every output channel. The module accurately identifies typical high-voltage loop faults including line open circuit, load loss, short-circuit overload and abnormal voltage drift. Different from non-supervised modules, it eliminates monitoring blind spots in high-voltage safety loops and ensures traceable operational status of all field equipment.

Intelligent Fault Positioning and Data Synchronization

Front panel high-brightness LED indicators intuitively display module operating status, fault alarms and channel activation states for on-site rapid inspection. All high-voltage loop fault data automatically synchronizes with TriStation software to form complete operation logs and fault records. Precise single-point fault positioning simplifies high-voltage circuit troubleshooting, effectively shortening safety loop maintenance downtime.

3. Reinforced Isolation Design and Anti-Interference Performance

High-Strength Electrical Isolation Barrier

Aiming at the characteristics of high-voltage industrial circuits, Triconex 3607E adopts enhanced optical isolation structure between field loops, internal channels and system backplanes. The reinforced isolation design effectively blocks high-voltage fault propagation and prevents high-voltage surge from damaging SIS core chassis equipment. Independent non-commoned channel layout avoids cross-channel interference and ensures independent operation of each high-voltage output loop.

Harsh Electromagnetic Environment Adaptability

The module passes strict electromagnetic compatibility tests, resisting strong electromagnetic interference and ground loop noise generated by high-power industrial equipment. Optimized circuit shielding structure suppresses high-frequency signal clutter in high-voltage working environments. Stable output performance remains unaffected in complex industrial electromagnetic scenarios, ensuring continuous and accurate safety control signal output.

4. TMR Redundant Architecture and System Operational Advantages

Three-Channel Voting Fault-Tolerant Logic

Triconex 3607E adopts standard Tricon TMR redundant architecture, with three completely independent internal processing channels executing parallel command calculation and Tribus bus voting verification. Only consistent multi-channel output results can drive field high-voltage loads, effectively filtering abnormal signals caused by single-component failure. The redundant design completely eliminates system single-point failures and guarantees zero misoperation of high-voltage safety loops.

Hot-Swap Maintenance and Low Power Consumption

The module supports hot-swap online replacement without suspending system safety logic or shutting down production equipment, greatly reducing unplanned industrial downtime. Optimized power management design controls low heat generation during long-term high-voltage full-load operation, avoiding performance attenuation caused by overheating. Standard Tricon chassis interface realizes plug-and-play installation and convenient system expansion.

5. Environmental Resistance, Safety Certification and Industrial Scenarios

Triconex 3607E operates stably within -40°C to +70°C temperature range, adapting to extreme temperature changes and 5%–95% non-condensing humidity in industrial sites. The module complies with IEC 61508 functional safety standards and obtains authoritative SIL3 safety integrity level certification, as well as UL and ATEX hazardous area certifications. It is widely applied in power generation, offshore platforms and large petrochemical facilities, dedicated to high-voltage ESD emergency shutdown loops, burner management systems and heavy-duty fire & gas safety control loops.
