Triconex 3601E 16-Channel Non-Commoned Digital Output Module, 115VAC 2A Max TMR Fault-Tolerant SIS Control Unit

Triconex 3601E Non-Commoned 16-Channel Digital Output Module for Tricon SIS Safety Control

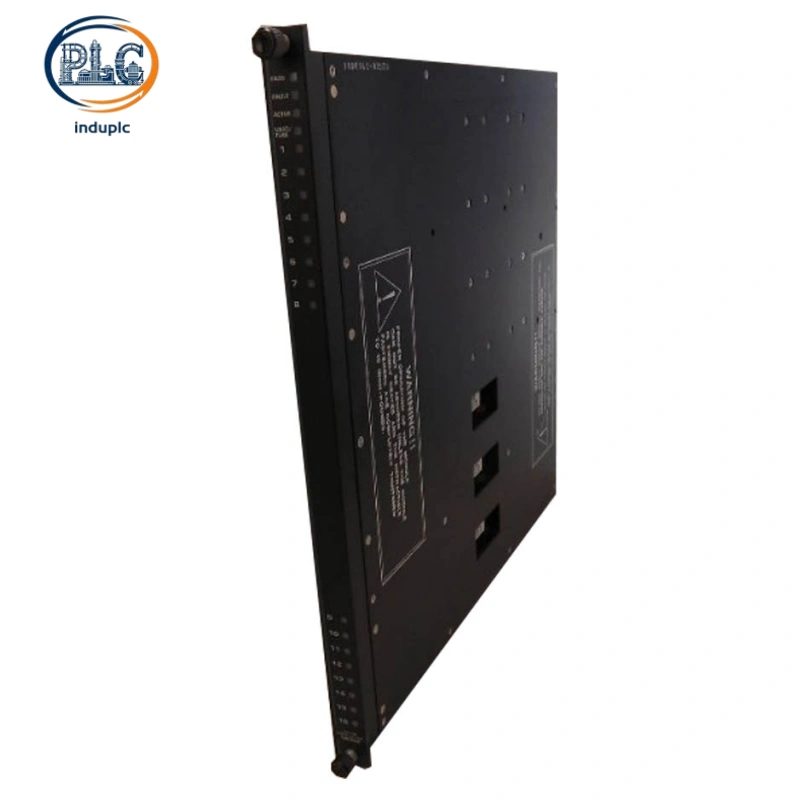

Triconex 3601E is a high-performance AC-type digital output module built exclusively for Tricon triple modular redundant safety instrumented systems. The non-commoned 16-channel layout provides isolated field control for AC-powered industrial safety devices. Triconex 3601E features robust optical isolation and current surge protection to stabilize AC loop operation. Triconex 3601E executes precise safety command output for critical process protection systems across heavy industrial sites.

1. AC Voltage Operational Specifications and Load Driving Capacity

115VAC Industrial Grade Operating Parameters

Triconex 3601E operates on nominal 115VAC input with a valid working range of 80VAC to 155VAC, adapting to standard industrial AC power fluctuation tolerance. The module supports 47Hz to 63Hz universal industrial frequency bandwidth, matching grid power conditions in petrochemical, power and offshore facilities. Typical voltage drop stays below 3V during full-load operation to retain sufficient driving voltage for field loads.

High Current Load and Surge Tolerance

Each channel delivers 2A continuous maximum output current for stable driving of AC relays, indicator lamps and safety solenoid valves. The hardware withstands 12A single-cycle surge current to accommodate transient startup current from inductive loads. A 10mA minimum load threshold ensures accurate channel status detection and avoids false fault alerts under light-load operating conditions.

2. Isolation Structure and Anti-Interference Reliability

1500V RMS Full Optical Isolation Design

Triconex 3601E integrates 1500V RMS optical isolation barriers between field circuits, individual channels and system backplanes. Complete electrical separation blocks fault propagation from field wiring anomalies to the core SIS chassis. Isolation structure eliminates ground loop coupling and high-frequency electromagnetic interference in electrically noisy industrial cabinet environments.

Non-Commoned Independent Channel Layout

All 16 output channels adopt non-commoned circuit design with fully independent loop structure. Each channel operates without shared grounding or power terminals, preventing cross-channel fault correlation. Isolated single-channel operation confines short-circuit or overload faults to individual points, preserving full functionality of remaining output loops.

3. TMR Redundant Logic and Intelligent Diagnostic System

Tribus Bus Voting Fault-Tolerant Mechanism

Three independent internal processing channels perform parallel command execution and real-time data voting for every output action. Tribus bus consistency verification filters abnormal drive signals triggered by single-component hardware failure. The triple modular redundant framework removes single-point failure risks and maintains valid safety output during partial module degradation.

Full-Coverage Channel Status Diagnostics

Triconex 3601E runs continuous background diagnostics to monitor load status, circuit integrity and abnormal voltage deviation for all channels. Front panel dedicated LEDs display PASS, FAULT, ACTIVE and per-point load status for intuitive on-site inspection. Synchronized fault data transmits to TriStation software for centralized logging, remote monitoring and rapid maintenance troubleshooting.

4. System Compatibility and Industrial Environmental Adaptability

Multi-Version Tricon System Adaptation

The module achieves seamless compatibility with Tricon v9, v10 and TR11 system firmware versions, supporting old-system upgrade and new-system integrated deployment. Standard Tricon chassis slot interface enables plug-and-play installation without wiring modification or system structural adjustment. Hot-swap compatible design allows online module replacement to cut unplanned production downtime.

Harsh Industrial Environment Resistance

Triconex 3601E maintains full functional performance across -40°C to +70°C wide temperature range, resisting extreme temperature cycling in enclosed cabinets and outdoor industrial areas. Reinforced structural components withstand mechanical vibration and dust accumulation during long-term unattended operation. Stable output performance persists under variable humidity conditions for year-round continuous safety system operation.

5. Safety Certification and Practical Industrial Deployment

Triconex 3601E complies with IEC 61508 functional safety standards and holds SIL3 safety integrity level certification for process safety applications. Authorized CE, UL and ATEX approvals validate global industrial applicability. The module widely serves emergency shutdown systems, fire and gas protection loops, and burner management systems in refining, natural gas processing and power generation facilities, delivering stable AC load control for critical safety interlock workflows.
