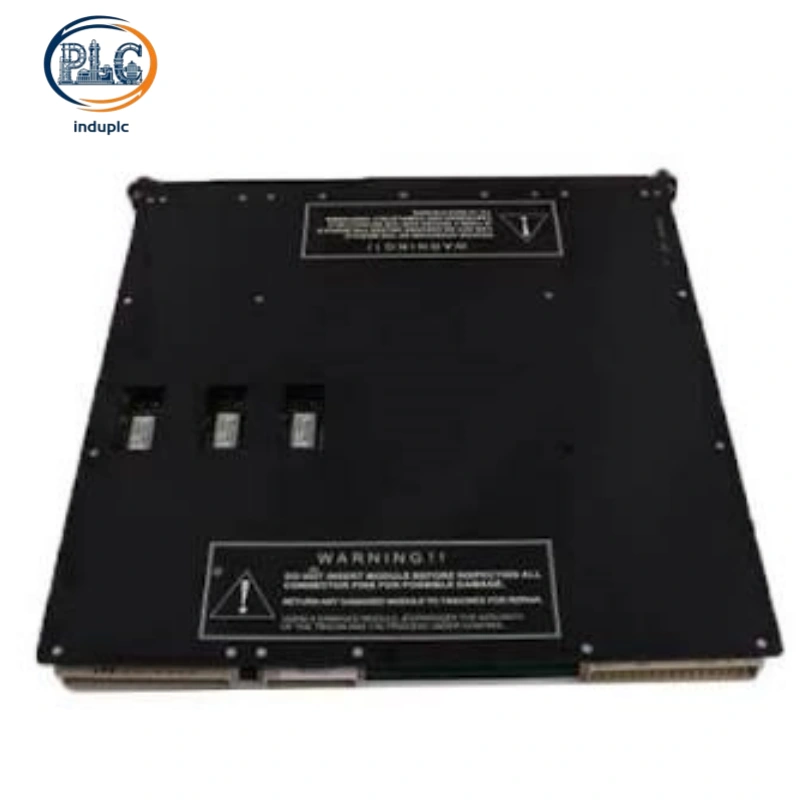

Triconex 3505E 32-Channel Low-Threshold Digital Input Module, 24VDC TMR Self-Test Fault-Tolerant SIS Field Acquisition Unit

Triconex 3505E is a specialized low-threshold discrete input module engineered for Tricon triple modular redundant safety instrumented systems. The 32-channel grouped hardware captures sensitive 24VDC field switching signals for precision safety status monitoring. Triconex 3505E integrates exclusive self-test functions to detect latent loop faults that standard input modules cannot identify. Triconex 3505E maintains ultra-stable signal acquisition performance for high-sensitivity industrial safety applications.

1. Low-Threshold Signal Detection and Electrical Specifications

Precision 24VDC Low-Threshold Trigger Mechanism

Triconex 3505E features dedicated low-threshold signal judgment circuits optimized for nominal 24VDC field equipment. The module supports 20VDC to 42.5VDC effective input range, covering normal industrial power deviation while retaining ultra-sensitive signal recognition capabilities. Optimized trigger thresholds capture weak switching signals from aging field contacts and low-power safety sensors, avoiding missed detection of marginal discrete status changes.

Fast Signal Response Timing Performance

Engineered with high-speed signal processing circuitry, the module delivers rapid state conversion with OFF-to-ON delay below 8ms and ON-to-OFF delay below 15ms. Fast response timing ensures timely system feedback for fast-acting safety interlock triggers. Consistent signal update speed maintains synchronized data sampling across full 32-channel groups without latency deviation.

2. Built-In Self-Test Diagnostics and Fault Coverage

Automatic Channel Health Self-Test Function

Triconex 3505E executes continuous background self-test routines for all channels during normal system operation. Intelligent algorithm scanning identifies stuck-ON, stuck-OFF and intermittent signal faults common in long-term field wiring loops. Non-intrusive diagnostic operation requires no manual testing or system downtime, achieving full-time safety loop health supervision.

Latent Fault Elimination and Early Warning

The self-test mechanism targets hidden faults including contact oxidation, wire fatigue and unstable terminal connections that evade conventional threshold detection. Real-time fault tagging uploads anomaly data to TriStation software for centralized logging and maintenance scheduling. Proactive fault detection eliminates latent risks before abnormal safety loop operation occurs.

3. Grouped Channel Layout and Mechanical Reliability

8-Point Grouped Wiring Structure

Triconex 3505E arranges 32 input channels into four independent 8-channel groups, standardizing field wiring classification and terminal management. Grouped circuit design simplifies cable routing and reduces cross-wiring errors in large-scale SIS cabinet layouts. Modular channel grouping supports partial loop maintenance without impacting adjacent monitoring points.

Anti-Vibration and Misinsertion Protection

Reinforced board packaging and fixed terminal structure resist mechanical vibration from industrial production equipment and ventilation systems. Built-in mechanical keying prevents incorrect chassis insertion and incompatible module matching. Rugged mechanical design guarantees stable physical connection and long-term structural integrity in harsh workshop environments.

4. TMR Redundant Architecture and System Stability

Tribus Voting Fault-Tolerant Operation

Three fully independent internal processing channels perform parallel signal acquisition and real-time data voting for every field input. Tribus bus comparison logic screens distorted signals caused by electromagnetic interference or single-channel hardware anomalies. The triple modular redundant design eliminates single-point failures and sustains uninterrupted signal monitoring during partial module degradation.

Isolated Anti-Interference Circuit Design

Optical isolation between field loops and system backplanes blocks fault propagation and ground loop noise. Independent channel circuit layout suppresses cross-talk interference in high-density I/O cabinet environments. Optimized electromagnetic compatibility design ensures accurate signal identification under complex industrial electrical conditions.

5. Environmental Adaptability and Safety Application Scenarios

Triconex 3505E operates reliably across -40°C to +70°C with 5% to 95% non-condensing humidity, complying with G3 industrial environmental standards. The module meets IEC 61508 functional safety specifications and obtains SIL3 safety integrity level certification. Suited for high-sensitivity safety monitoring scenarios, the hardware supports ESD systems, fire and gas detection loops and critical process interlock protection in petrochemical, power generation and natural gas processing facilities.
