Triconex 3301 32‑Channel Digital Input Module, 24VDC TMR Fault‑Tolerant SIS Discrete Signal Acquisition Unit

Triconex 3301 High‑Density 32‑Channel Digital Input Module for Tricon SIS Platforms

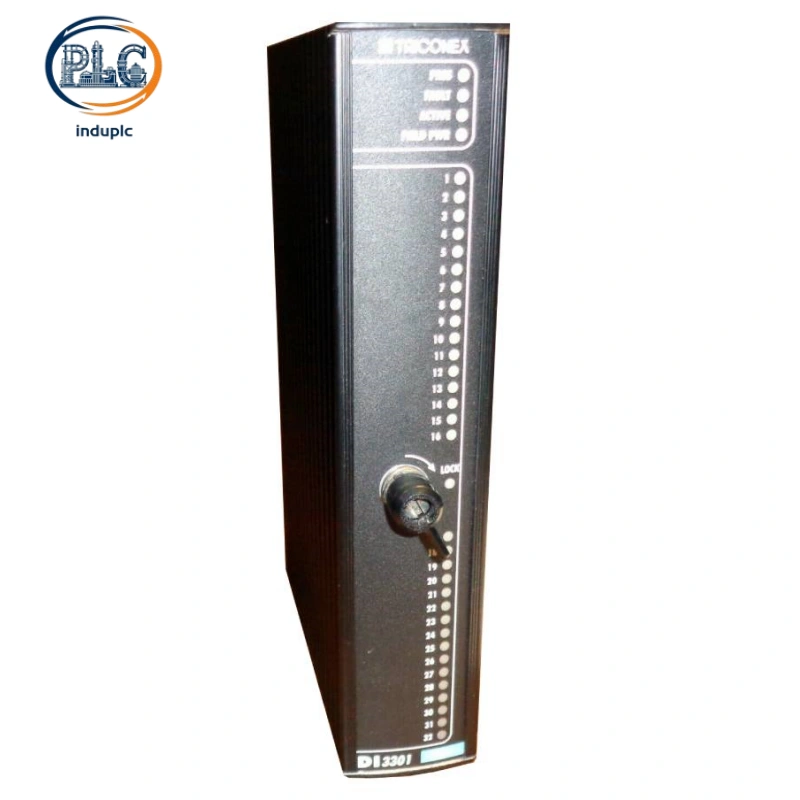

Triconex 3301 is a dedicated discrete signal acquisition module designed for Tricon fault-tolerant safety instrumented systems. The high-density hardware captures 24VDC on-site switching signals to support safety logic judgment and equipment status monitoring. Triconex 3301 adopts proven triple modular redundant architecture to eliminate single-point failure risks in discrete signal loops. Triconex 3301 maintains consistent signal accuracy and operational stability throughout long-cycle industrial safety operations.

1. Full-Channel Diagnostic and Fault Detection Capabilities

Continuous Onboard Signal Health Monitoring

Every channel on Triconex 3301 supports real-time operational diagnostics to identify open circuits, wiring faults and abnormal signal deviations. Embedded detection circuits run background checks without occupying system scan resources, ensuring zero missed fault events during high-frequency signal collection. Accurate fault positioning simplifies on-site inspection and reduces manual troubleshooting workload.

Intelligent Signal Filtering and Anti-Interference Mechanism

Built-in signal filtering circuitry suppresses transient voltage fluctuations and electromagnetic interference common in industrial cabinet environments. Fixed input delay parameters avoid false signal triggering caused by field contact jitter. Optimized circuit design guarantees precise identification of valid 24VDC discrete signals under complex electrical conditions.

2. TMR Redundant Architecture and Electrical Specifications

Industrial Grade 24VDC Input Performance

Triconex 3301 operates steadily within 15VDC to 30VDC working voltage range, adapting to unstable on-site power supply fluctuations. The module defines clear signal threshold standards, with 0-5VDC for OFF state and 15-30VDC for ON state to ensure accurate signal discrimination. Low power consumption design stabilizes long-term rack operation without excessive heat accumulation.

Tribus Voting Redundant Signal Processing

Three independent internal signal processing channels execute parallel data collection and result comparison via Tribus bus voting logic. Valid signal outputs take effect only after multi-channel consistency verification, shielding abnormal data from individual circuit anomalies. The redundant working mode ensures non-stop signal acquisition without system shutdown during partial hardware degradation.

3. Harsh Environment Adaptability and Structural Reliability

Wide Temperature and Humidity Operating Tolerance

The module supports full-performance operation from -40°C to +70°C, complying with G3-grade harsh industrial environmental standards. Stable output persists under 5% to 95% non-condensing humidity, adapting to offshore platforms, chemical workshops and power plant cabinet environments. Temperature-resistant components prevent performance attenuation under extreme temperature cycling conditions.

Vibration and Impact Resistant Structural Design

Reinforced board layout and compact integral structure resist mechanical vibration and instantaneous impact from on-site production equipment. Sealed internal circuits prevent dust and moisture erosion, extending overall service life of the module. Industrial-grade structural standards meet long-term unattended operation requirements for safety critical facilities.

4. System Compatibility and Industrial Safety Application

Triconex 3301 features standard Tricon backplane interface for direct plug-and-play installation and seamless system expansion. The module matches mainstream Tricon firmware versions and supports hot-swap maintenance to avoid overall system downtime. Widely deployed in ESD systems, fire and gas monitoring systems and process interlock control loops, the hardware provides reliable discrete signal data support for industrial safety protection.
