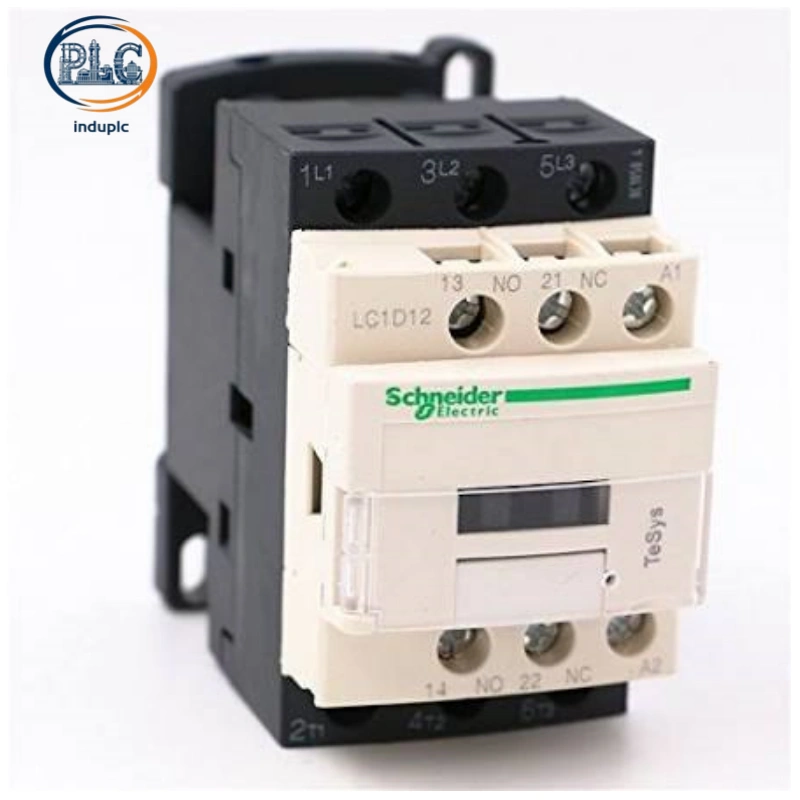

Schneider LC1D12 TeSys‑D 3‑Pole Motor Contactor, 12A AC‑3 Rated Industrial DIN‑Rail Contactor

The Schneider LC1D12 is a durable three-pole power contactor belonging to Schneider’s mature TeSys-D series, designed for low-voltage motor control and medium-load industrial switching applications. Built with one normally open and one mirror-type normally closed auxiliary contact, this compact switching component serves as a core control unit for standard cabinet automation and power distribution systems. It is widely implemented in mechanical manufacturing, HVAC ventilation, water treatment and automated small-scale production lines.

Capable of handling steady medium industrial loads, the Schneider LC1D12 features a 12A AC-3 rated operational current, perfectly matching the control requirements of common three-phase asynchronous motors. Adopting high-grade flame-retardant casing and precision screw-clamp terminal structure, this contactor delivers stable mechanical performance and strong environmental tolerance. It is commonly deployed to operate medium-sized industrial fans, conventional water pump units, small conveyor lines, standard packaging equipment and various medium-power automated processing machinery.

Schneider LC1D12 TeSys‑D 12A Three‑Pole Industrial Motor‑Switching Contactor

1. Mechanical Structure, Installation and Environmental Adaptability

Compact Footprint and Flexible Mounting Options

Featuring a streamlined compact industrial casing, the Schneider LC1D12 has precise dimensional specifications of 45mm width, 77mm height and 95mm depth, with a net weight of only 0.485kg. It supports two practical installation methods: standard DIN rail mounting and direct screw panel fixing, enabling flexible and tidy layout in limited cabinet spaces. This space-saving design fits OEM equipment assembly and standardized industrial cabinet configuration perfectly. With front IP20 protection grade, the unit effectively prevents accidental contact with live internal terminals and resists external dust accumulation, ensuring safe and trouble-free long-term operation in ordinary industrial workshop environments.

Shock and Vibration Resistance with Broad Temperature Tolerance

The LC1D12 adopts premium UL94-V1 flame-retardant plastic housing that withstands 850°C high-temperature combustion, offering reliable resistance against daily mechanical vibration, instantaneous impact shock and long-term thermal aging. Its control coil maintains full-power stable operation within the temperature range of -40°C to 60°C without current derating, and supports conditional operation up to 70°C with proper load adjustment. Adaptable to various conventional industrial environments, it operates steadily in 5% to 95% non-condensing humidity and works normally at installation altitudes up to 3000 meters above sea level, complying with global industrial environmental standards.

2. Electrical Parameters and Switching Performance

Main Circuit Rated Electrical Specifications

Configured with three normally open main power poles, the Schneider LC1D12 provides a 12A AC-3 operational current at 440V, with a maximum thermal steady-state current of 25A under 60°C ambient temperature. It features a 690V rated insulation voltage and 6kV impulse withstand voltage, strictly conforming to IEC 60947-4-1 international industrial safety regulations. In practical industrial deployment, this contactor stably drives 5.5kW three-phase motors at 380/440V and supports 7.5kW motor operation under 500–690V power supply. Its excellent inrush current resistance effectively absorbs instantaneous motor startup surges and routine load fluctuations, maintaining consistent operational stability for medium-power industrial equipment.

Auxiliary Contact Configuration and Service Lifespan

Integrated with one NO and one mechanically interlocked NC mirror auxiliary contact, the LC1D12 enables real-time equipment running status feedback, basic electrical interlock setup and practical safety loop control for automated systems. It achieves 30 million mechanical operation cycles and 2 million electrical switching cycles under standard AC-3 load conditions, ensuring ultra-long service life for continuous medium-duty production equipment. Designed with universal screw-clamp terminals compatible with both solid and flexible copper wires, the recommended tightening torque is 1.7N·m for control circuits and 2.5N·m for main power circuits to guarantee firm, vibration-resistant wiring connection.

3. Certification Standards and Industrial Application Scenarios

Global Certifications and Anti-Interference Performance

Fully compliant with IEC 60947-4-1, UL 60947-4-1 and CSA C22.2 NO 14 international industrial norms, the LC1D12 holds multiple authoritative global certifications including CCC, UKCA, EAC, UL and marine certification. The built-in coil surge suppression structure eliminates electromagnetic interference generated during coil de-energization, effectively protecting surrounding low-voltage control modules and precision circuit components. A complete lineup of AC coil voltage options covers nearly all mainstream control voltage specifications for global industrial automation and HVAC equipment.

Industrial Application Scope

Widely applied in general industrial automation, building power control and HVAC systems, the LC1D12 undertakes stable start-stop control for medium-sized industrial ventilation units, conventional water pump stations, small conveyor production lines, standard packaging machinery and miniature air compressors. When matched with thermal overload relays, it forms a compact integrated motor control and protection assembly for standard PLC control cabinets. Supporting a maximum switching frequency of 3600 cycles per hour, it adapts to frequent startup-shutdown working modes and supports long-term unattended stable operation of medium-duty industrial equipment.

Schneider LC1D12 Optional Voltage Suffix Models: LC1D12B7C, LC1D12CC7C, LC1D12D7C, LC1D12E7C, LC1D12F7C, LC1D12M7C, LC1D12P7C, LC1D12Q7C, LC1D12U7C

LC1D12 Full Suffix Voltage Parameter List

All 7C-series suffix models support 50/60Hz dual-frequency operation, compatible with global industrial power supply standards:

• LC1D12B7C: AC 24V control coil voltage, 50/60Hz

• LC1D12CC7C: AC 36V control coil voltage, 50/60Hz

• LC1D12D7C: AC 42V control coil voltage, 50/60Hz

• LC1D12E7C: AC 48V control coil voltage, 50/60Hz

• LC1D12F7C: AC 110V control coil voltage, 50/60Hz

• LC1D12M7C: AC 220V control coil voltage, 50/60Hz (most widely used industrial specification)

• LC1D12P7C: AC 230V control coil voltage, 50/60Hz

• LC1D12Q7C: AC 380V control coil voltage, 50/60Hz

• LC1D12U7C: AC 240V control coil voltage, 50/60Hz
