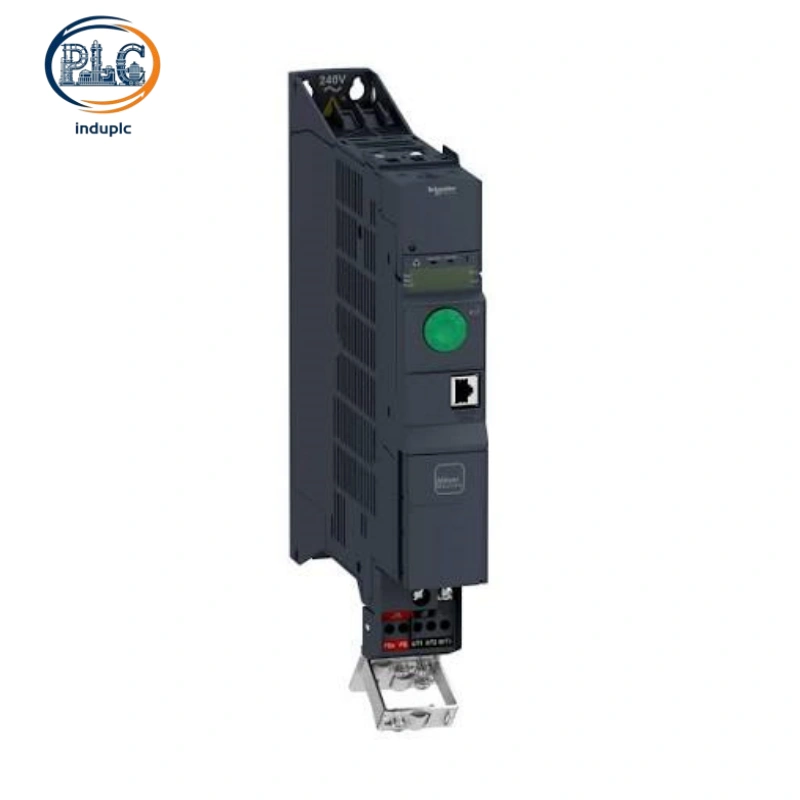

Schneider ATV320U07N4B Altivar 320 Variable Frequency Drive, 0.75kW 3-Phase 380-500V Compact Industrial VFD Inverter

Schneider ATV320U07N4B Altivar 320 0.75kW 3-Phase 380-500V VFD For Light-Duty Industrial Asynchronous and Synchronous Motor Speed Regulation

Schneider ATV320U07N4B compact book-style variable frequency drive delivers 0.75kW heavy-duty power output, built-in Class C2 EMC filtering and multi-layer safety protection, offering energy-efficient and high-stability speed control for industrial fans, micro pump systems and lightweight automated processing machinery.

Schneider ATV320U07N4B Altivar 320 0.75kW Three-Phase Compact VFD For Light Industrial Motor Applications

1. Optimized Energy-Saving Performance & Flexible Ramp Control of Schneider ATV320U07N4B

Intelligent Load Adaptive Energy Efficiency

Schneider ATV320U07N4B integrates dedicated energy-saving control algorithms optimized for fan and pump load characteristics. The drive automatically adjusts output voltage and current according to real-time load changes, reducing unnecessary power consumption by up to 30% during continuous operation. Adaptive power regulation maintains stable motor operation while lowering long-term operational costs for light industrial equipment.

Multi-Mode Acceleration & Deceleration Ramp Tuning

Schneider ATV320U07N4B supports multiple adjustable ramp modes including linear, S-curve and custom adaptive ramps to fit diverse mechanical operation demands. Built-in DC injection braking and automatic ramp stop functions eliminate motor coasting and mechanical impact during startup and shutdown. Flexible ramp configuration protects transmission components and extends the service life of light-duty automated machinery.

2. Industrial-Grade Safety Protection & EMC Compatibility of Schneider ATV320U07N4B

Dual Integrated Safety Certifications

Schneider ATV320U07N4B features native Safe Torque Off (STO) and Safe Stop 1 (SS1) safety functions compliant with global machinery safety standards. The embedded safety modules remove external safety relay configurations, simplifying cabinet wiring and reducing system failure points. Reliable safety cut-off mechanisms ensure secure equipment maintenance and emergency fault response in automated systems.

Class C2 EMC Filter & Full Standard Immunity

Schneider ATV320U07N4B equips factory-built Class C2 EMC filter to suppress high-frequency switching noise and electromagnetic radiation. The unit passes Level 3 ESD immunity, Level 4 fast transient immunity and Level 3 surge immunity per IEC industrial standards. Excellent electromagnetic compatibility guarantees stable operation of nearby sensors and low-voltage control circuits in complex workshop environments.

3. Precise Electrical Parameters & Durable Structural Adaptability of Schneider ATV320U07N4B

0.75kW Heavy-Duty Electrical Specifications

Schneider ATV320U07N4B provides 0.75kW heavy-duty rated power with 3.6A nominal output current at 380V and 2.3kVA apparent power at 500V, matching low-power three-phase asynchronous and synchronous motors. The drive tolerates -15% to +10% industrial grid voltage fluctuation and adapts to 50/60Hz global frequency standards. Stable electrical output eliminates motor speed deviation under variable light-load conditions.

Harsh Environment Mechanical Durability

Schneider ATV320U07N4B adopts IP20 book-type compact casing for vertical wall-mounted cabinet installation. The drive operates stably from -10°C to +50°C without power derating and supports adjustable output up to 60°C. Industrial-grade PCB coating and structural reinforcement resist routine workshop vibration, dust accumulation and non-condensing humidity, ensuring long-term continuous unattended operation.
