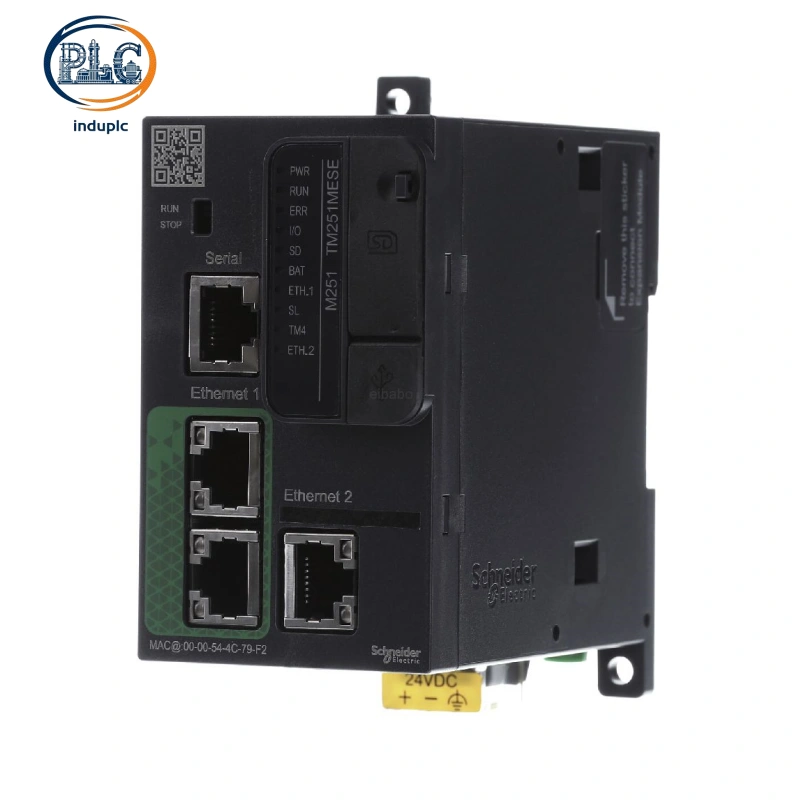

Schneider TM251MESE Modicon M251 PLC Controller, Dual-Port Ethernet Industrial Logic Control Unit

Schneider TM251MESE is a compact high-performance logic controller belonging to the Modicon M251 micro-PLC series, optimized for network-centric machinery automation and distributed industrial control. This Ethernet-native PLC integrates dual built-in Ethernet ports and standard serial interfaces, delivering scalable network communication, stable multi-task operation and flexible I/O expansion for small and medium automated machinery systems.

Schneider TM251MESE Dual-Port Ethernet Modicon M251 PLC Controller For Networked Machine Automation

1. High-Speed Processing And Professional Task Architecture of Schneider TM251MESE

Ultra-Fast Instruction Execution Performance

Schneider TM251MESE adopts industrial-grade processing core with highly optimized instruction cycle efficiency. The controller completes 1000 basic instructions within 0.3ms and processes periodic and event tasks in only 0.7ms, supporting fast loop operation for dynamic machine logic. Single instruction execution reaches 0.022µs, maintaining consistent response speed under long-term full-load program operation and complex logic scheduling.

Multi-Layer Task Scheduling System

Schneider TM251MESE supports 4 independent cyclic master tasks and 8 external event interrupt tasks, realizing hierarchical management of regular control and emergency response logic. One dedicated background freewheeling task handles auxiliary data processing and system monitoring without occupying core operation resources. Integrated real-time clock delivers precise time stamping for production data logging and timed sequence control, enhancing operational accuracy for standardized machine cycles.

2. Dual-Ethernet Network Design And Communication Capacity of Schneider TM251MESE

Integrated Dual-Port Ethernet Switch Function

Schneider TM251MESE features a unique dual-RJ45 Ethernet port layout with built-in switch functionality, eliminating external network switch reliance for on-site networking. Dual Ethernet ports support simultaneous Modbus TCP communication, web server access and remote program maintenance, enabling daisy-chain device connection and flexible network topology layout. The design simplifies field wiring and reduces auxiliary network hardware investment for multi-device linkage systems.

Modbus TCP Scanner And Multi-Protocol Compatibility

Schneider TM251MESE supports professional Modbus TCP IO scanner function, allowing connection with up to 64 slave devices and 64 independent data channels for large-scale distributed signal interaction. Standard RS232/RS485 serial ports adapt to Modbus RTU and ASCII protocols, realizing seamless connection with field sensors, HMI panels and secondary automation equipment. Multi-protocol collaborative operation meets integrated network control demands of modern automated production lines.

3. Hardware Specifications And Industrial Application Value of Schneider TM251MESE

Rugged Industrial Hardware And Scalable Expansion

Schneider TM251MESE adopts standard DIN-rail mounting structure with IP20 industrial protection grade, operating stably within -10°C to +50°C temperature range and 5% to 95% non-condensing humidity environment. The controller supports up to 7 local expansion modules and 14 remote I/O modules, achieving flexible function upgrade through Modicon TM3 series analog and discrete expansion units. 24VDC standard industrial power input adapts to common cabinet power supply environments with stable anti-interference performance.

Networked Machinery Automation Deployment Scenarios

This dual-Ethernet M251 controller focuses on network-intensive automated equipment control. Packaging and processing machinery deploy the unit for multi-station network linkage and remote program debugging. Factory decentralized automation nodes utilize dual-port switching function for convenient equipment cascading and network layout optimization. Small-scale intelligent production lines rely on Modbus TCP scanning capability to realize centralized data collection and unified equipment operation management.
