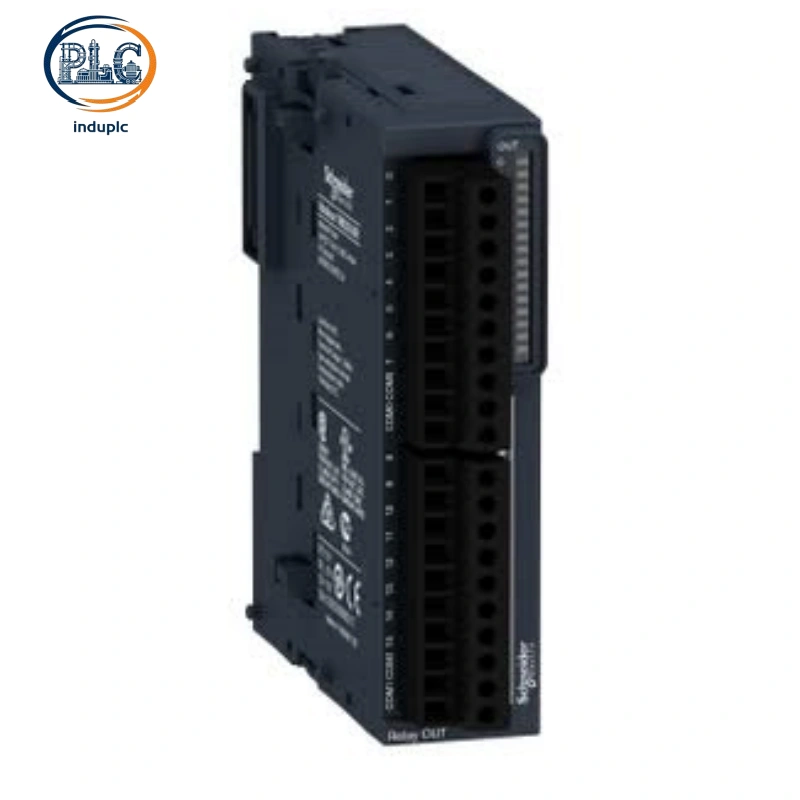

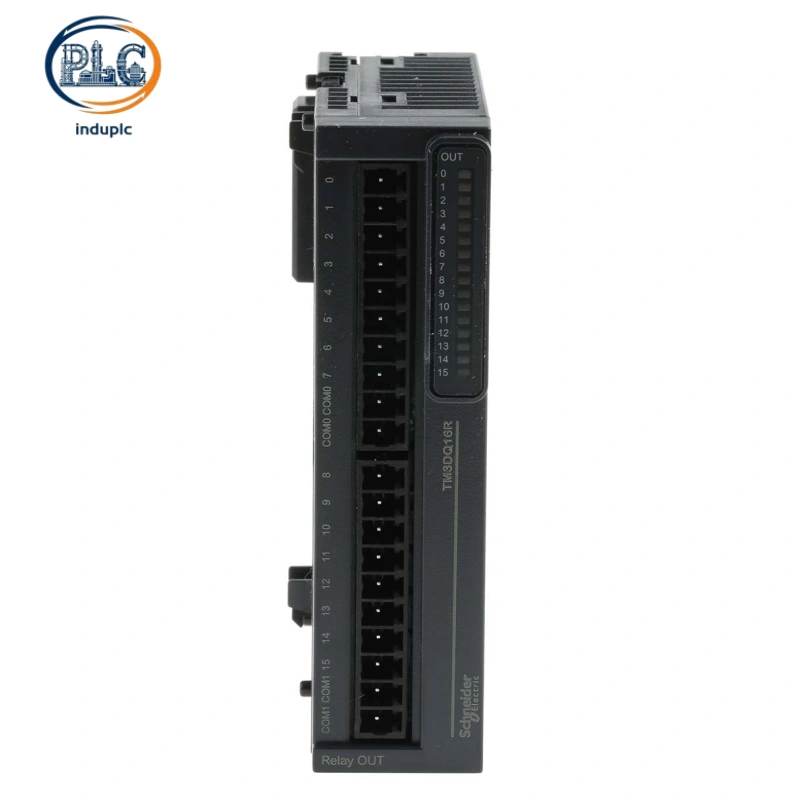

Schneider TM3DQ16R Modicon TM3 Relay Output Module, 16-Channel 2A 240VAC PLC Expansion Unit

Schneider TM3DQ16R is a high-density 16-channel relay discrete output expansion module developed for Modicon TM3 series PLC systems. This industrial relay output unit supports universal AC and DC load driving with 2A per-channel rated current, providing reliable switching control for Modicon M221, M241, M251 and M262 controller-based machinery and light process automation systems.

Schneider TM3DQ16R 16-Channel High-Density Relay Output Expansion Module For Modicon TM3 PLC Controllers

1. Relay Output Rating And Switching Performance of Schneider TM3DQ16R

Universal AC/DC Load Driving Capacity

Schneider TM3DQ16R adopts normally open relay output design suitable for dual 30VDC and 240VAC industrial load scenarios. Each channel delivers stable 2A continuous rated current, meeting driving demands for solenoid valves, indicator lamps, miniature contactors and general industrial low-power actuators. Group-based current bearing design supports up to 8A maximum current per common group, adapting to multi-channel simultaneous high-load operation without circuit overload.

Precise Switch Timing And Mechanical Durability

Schneider TM3DQ16R features fixed 10ms turn-on delay and 5ms turn-off delay, ensuring consistent switching timing for automated logic sequences. The built-in industrial relay structure supports up to 2 million mechanical switching cycles, maintaining long-term operational stability under frequent on-off working conditions. Standard internal arc suppression design reduces contact wear, extending service life in continuous factory operation environments.

2. High-Isolation Safety Design And Circuit Protection of Schneider TM3DQ16R

Multi-Level Insulation Isolation Structure

Schneider TM3DQ16R integrates professional multi-layer electrical isolation to separate internal PLC logic circuits and field load terminals. The module achieves 2300V AC isolation between output and logic circuits, 1500V AC isolation between output groups and 750V AC single-channel isolation, effectively blocking external surge voltage and electromagnetic interference. Hierarchical isolation design eliminates cross-group signal coupling and improves overall system anti-interference capability.

Built-In Overload And Surge Protection Mechanism

Schneider TM3DQ16R matches external group fuse protection specifications to prevent damage from load short circuit and overload current. Independent channel loop design limits fault spread, ensuring normal operation of unaffected channels during single-point load failure. Reliable relay contact structure resists instantaneous current impact, avoiding accidental contact adhesion or burnout in complex industrial power environments.

3. Structural Features And Industrial Application Scenarios of Schneider TM3DQ16R

Standard DIN-Rail Mounting And Convenient Wiring

Schneider TM3DQ16R adopts compact industrial modular structure compatible with standard 35mm symmetrical DIN rail installation. Removable screw terminal blocks support quick wiring and disassembly, simplifying on-site equipment maintenance and module replacement. Slim body size and IP20 protection grade save cabinet layout space, perfectly fitting compact OEM machinery and integrated automation control cabinets.

Wide Compatibility And Multi-Industry Deployment Value

Schneider TM3DQ16R realizes native plug-and-play connection with full Modicon M2xx series controllers, supporting one-stop configuration via EcoStruxure Machine Expert software. The module suits multiple light industrial automation fields, including packaging machinery actuator control, logistics conveyor system logic switching, water treatment equipment valve linkage, and general factory automation equipment status control.
