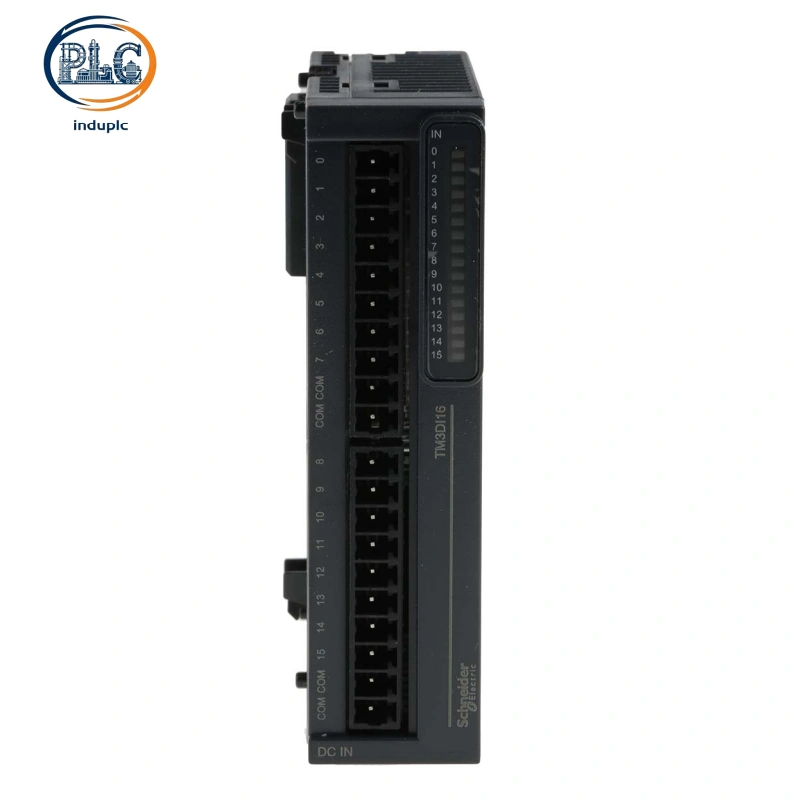

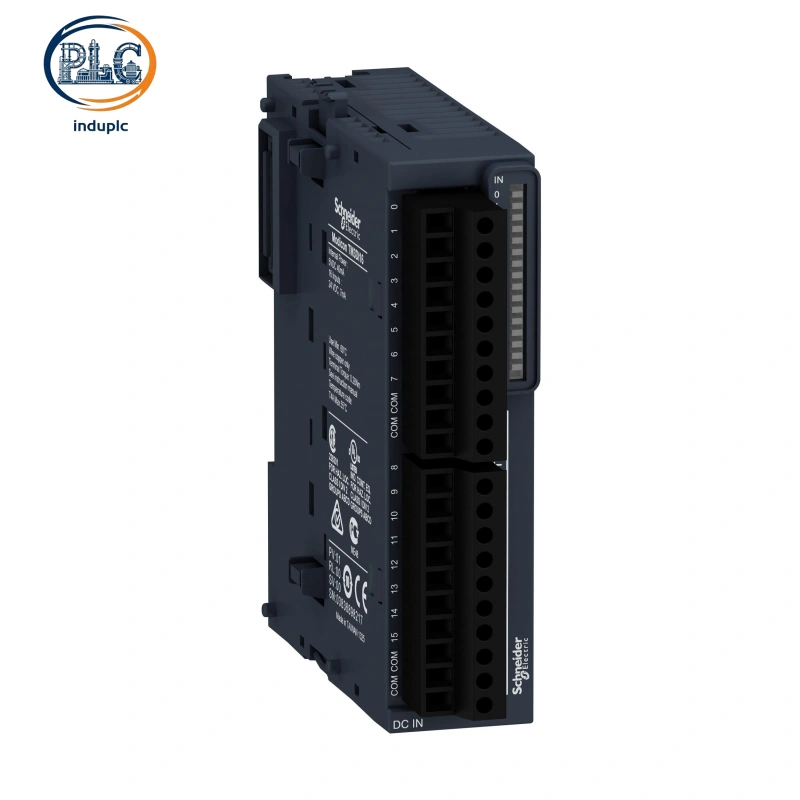

Schneider TM3DI16 Modicon TM3 Discrete Input Module, 16-Channel 24VDC Sink/Source PLC Expansion Unit

Schneider TM3DI16 is a high-density 16-channel discrete input expansion module designed for Modicon TM3 series PLC platforms. This industrial-grade 24VDC input unit supports flexible sink and source logic modes, delivering reliable switch signal collection for Modicon M221, M241, M251 and M262 controller systems in machinery and factory automation projects.

Schneider TM3DI16 High-Density 16-Channel 24VDC Discrete Input Expansion Module For Modicon TM3 PLC Controllers

1. Flexible Logic Mode And Electrical Performance of Schneider TM3DI16

Dual Sink/Source Logic Compatibility

Schneider TM3DI16 features dual discrete input logic design that supports both sink and source signal modes, matching positive and negative logic field sensor wiring habits. The module complies with IEC 61131-2 Type 3 industrial standards, ensuring universal compatibility with standard proximity sensors, photoelectric switches and mechanical limit switches. Adjustable logic configuration eliminates the need for replacement modules during on-site wiring adjustments, improving engineering layout flexibility.

Stable 24VDC Industrial Input Parameters

Schneider TM3DI16 operates within a 15V to 28.8V wide voltage range, adapting to common industrial power supply fluctuations. Each channel maintains a maximum 7mA input current and 3.4kOhm fixed input impedance, forming stable signal trigger thresholds. Clear voltage level definition defines 15V and above as valid high-level signals and 0V to 5V as low-level signals, effectively avoiding ambiguous signal judgment in complex electromagnetic environments.

2. Fast Response Mechanism And Safety Isolation Design of Schneider TM3DI16

4ms Ultra-Fast Signal Response Speed

Schneider TM3DI16 achieves consistent 4ms maximum turn-on and turn-off response time for all channels, capturing rapid switch state changes on automated production lines. Standard internal filtering circuitry suppresses transient pulse interference caused by equipment startup and power switching, preventing false triggering and signal jitter. Uniform channel response performance ensures synchronous signal collection during full 16-channel simultaneous operation.

Reliable Electrical Isolation And Circuit Protection

Schneider TM3DI16 integrates 500V AC isolation between field input terminals and internal PLC bus circuits, blocking external surge interference and protecting main controller hardware. Independent group partitioning enhances circuit stability while maintaining non-cross-interference between signal groups. Green LED indicators correspond to each channel, providing real-time visual feedback of input status for rapid on-site inspection and fault diagnosis.

3. Mechanical Structure And Multi-Scenario Industrial Deployment of Schneider TM3DI16

Compact DIN-Rail Mounting Structure

Schneider TM3DI16 adopts lightweight modular structure with only 0.1kg net weight and standard TH35 DIN-rail mounting compatibility. Removable 3.81mm pitch screw terminal blocks support convenient wiring and maintenance, accommodating 0.14mm² to 1.5mm² cable specifications. IP20 protection grade and compact dimensions save cabinet space, ideal for compact machinery and integrated automation equipment layout.

Wide Environmental Adaptability And Automation Application

Schneider TM3DI16 supports stable operation under vertical and horizontal installation modes, with temperature ranges from -10°C to 35°C and -10°C to 55°C respectively. The module withstands 10% to 95% non-condensing humidity and passes professional vibration and shock resistance tests. Packaging machinery, conveyor systems and small process control equipment deploy the module for high-density switch signal acquisition, ensuring stable equipment linkage and automatic logic operation.
