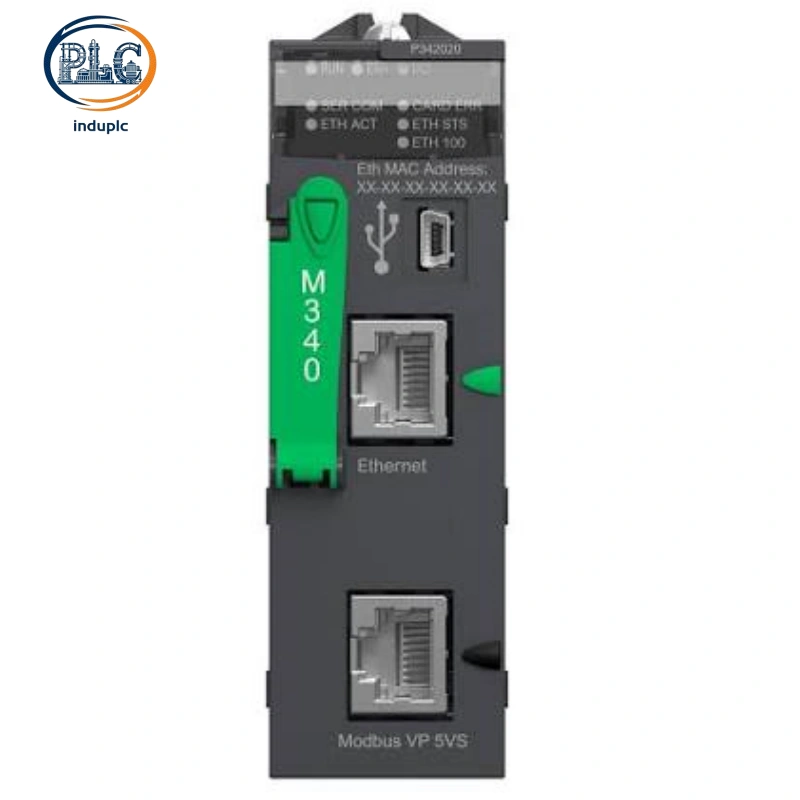

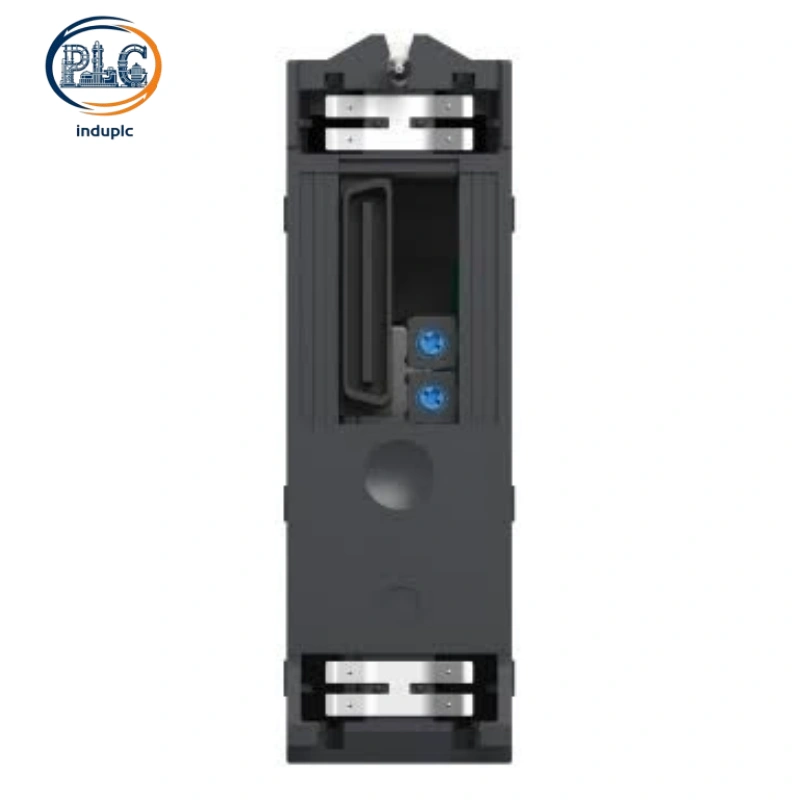

Schneider BMXP342020 Modicon M340 High-End CPU Module, 4MB RAM Ethernet & Modbus TCP Processor

Schneider BMXP342020 is a high-performance industrial CPU module tailored for Modicon M340 automation platforms, designed for medium-to-large scale factory and process control systems. This upgraded processor integrates 4MB high-capacity internal RAM, native 10/100Mbps Ethernet and multi-protocol serial ports, supporting massive I/O scheduling and high-speed network data transmission for complex industrial automation projects.

Schneider BMXP342020 High-Capacity Modicon M340 CPU Module With Ethernet TCP/IP Communication

1. Upgraded Memory Configuration And High-Speed Processing Performance of Schneider BMXP342020

4MB Full-Segment Industrial Grade RAM Layout

Schneider BMXP342020 features 4096kB built-in RAM, providing sufficient storage space for complex user programs, industrial control algorithms and real-time process data. The internal memory divides into independent program storage, constant cache and data storage partitions to avoid resource conflicts during high-load operation. Matched with standard 8MB dedicated memory cards, the module supports long-term data logging and offline program backup for continuous industrial production scenarios.

High-Efficiency 32-Bit Real-Time Processing

Schneider BMXP342020 adopts optimized 32-bit industrial processing core, strictly complying with IEC 61131-3 international programming standards. The processor delivers ultra-stable cycle execution capability, supporting up to 36 professional application control channels. Fast program scanning speed eliminates response delay in multi-loop linkage control, fully meeting high-precision and high-timing industrial control requirements.

2. Multi-Protocol Communication Ports And Super I/O Expansion Capacity of Schneider BMXP342020

Dual-Band Ethernet And Multi Serial Communication

Schneider BMXP342020 embeds adaptive 10/100Mbps Ethernet TCP/IP interface, supporting Modbus TCP, SNMP network management and bandwidth management services. Reserved RS232C and RS485 serial ports cooperate with high-speed USB debugging interfaces to realize multi-channel data interaction. Rich native communication configurations eliminate external adapter reliance, simplifying on-site wiring and network topology deployment.

Massive Distributed I/O Expansion Support

Schneider BMXP342020 supports industry-leading super-large scale I/O expansion, covering 1024 discrete input and output points and 256 analog signal channels. The module achieves seamless compatibility with Modicon X80 series I/O hardware, realizing flexible combination of local rack and distributed remote rack deployment. Powerful expansion performance adapts to large assembly lines, water treatment plants and energy automation system construction demands.

3. Industrial Reliability And Multi-Scenario System Application of Schneider BMXP342020

Rugged Industrial Environmental Adaptability

Schneider BMXP342020 adopts IP20 industrial protection structure with professional conformal coating circuit protection. The module operates stably within 0°C to 60°C working temperature and -40°C to 85°C storage temperature, resisting dust, moisture and mild electromagnetic interference in control cabinets. Low 95mA rack power consumption ensures energy-saving and long-term continuous operation of automation systems.

Large-Scale Automation System Deployment Scenarios

This high-end M340 CPU suits complex medium and large industrial automation projects. Intelligent manufacturing production lines utilize the module for multi-station linkage control and high-speed data synchronization. Municipal water supply and sewage treatment systems rely on massive I/O capacity to realize full-process equipment monitoring and regulation. New energy and chemical industries deploy the processor for stable network communication and precise process loop control.
