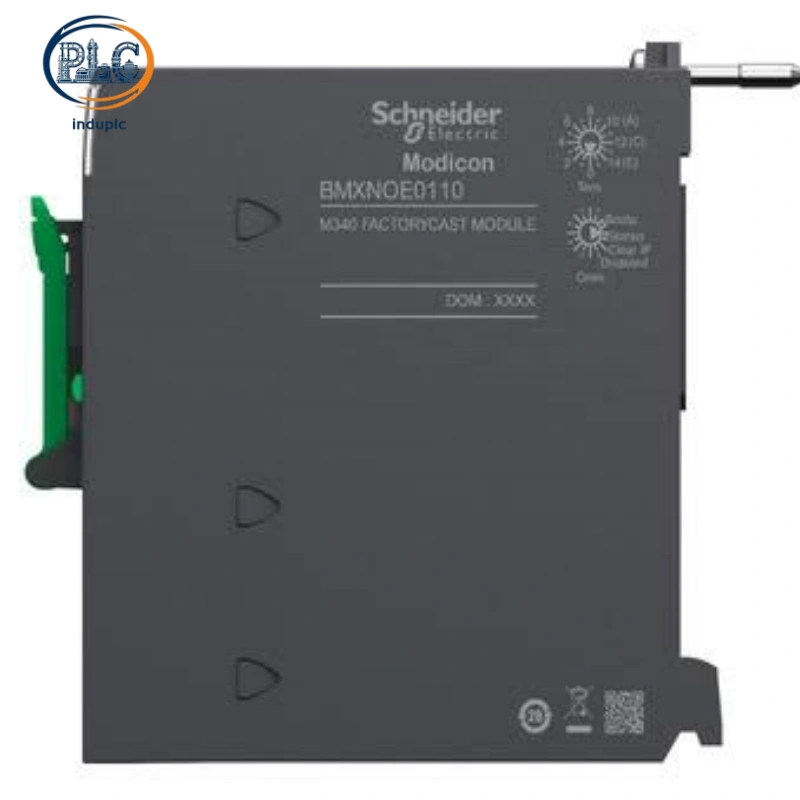

Schneider BMXNOE0110 Ethernet Network Module, 10/100Mbps RJ45 Modicon M340 PLC Communication Module

Schneider BMXNOE0110 is a dedicated Ethernet TCP/IP communication module developed exclusively for Modicon M340 PLC platforms, delivering stable high-speed network transmission for industrial automation control systems. This compact network expansion unit features 10/100Mbps adaptive bandwidth, built-in memory configuration and professional industrial network protocols, providing reliable data exchange between local PLC equipment and upper monitoring hosts.

Schneider BMXNOE0110 High-Speed Ethernet TCP/IP Communication Module For Modicon M340 PLC Systems

1. Network Transmission Performance And Protocol Adaptability of Schneider BMXNOE0110

Adaptive 10/100Mbps Industrial Ethernet Bandwidth

Schneider BMXNOE0110 integrates a single standard RJ45 Ethernet interface with adaptive 10Mbps and 100Mbps transmission rates, matching mainstream industrial network wiring standards. The module supports automatic network speed identification and duplex mode switching, eliminating manual parameter adjustment during on-site debugging. Stable TCP/IP data transmission maintains continuous communication linkage even under long-distance industrial cable connection, avoiding network disconnection caused by signal attenuation.

Standard Industrial Communication Protocol Support

Schneider BMXNOE0110 adopts Transparent Ready Class C30 server architecture, compatible with Modbus TCP and Ethernet/IP mainstream industrial protocols. Built-in SNMP network management function supports remote network status monitoring and fault diagnosis, facilitating centralized equipment management for factory automation systems. FDR server bandwidth management mechanism optimizes data transmission efficiency, ensuring real-time synchronization of on-site I/O data and upper computer monitoring information.

2. Built-In Memory Configuration And Hardware Structural Advantages of Schneider BMXNOE0110

Independent High-Capacity Memory System

Schneider BMXNOE0110 equips 16Mb internal RAM and comes with pre-installed 32MB BMXRWSFC032M flash memory card, meeting program storage and parameter backup demands of medium and small-scale PLC projects. Independent memory partition stores system configuration files and operation logs, supporting offline parameter backup and one-click program recovery. The memory structure avoids data loss during power failure and equipment restart, improving system operational stability.

Compact Rack-Mount Industrial Hardware Layout

Schneider BMXNOE0110 features a slim industrial modular structure with standard M340 rack mounting size, occupying minimal cabinet installation space. The module adopts rack internal power supply design with only 90mA rated current consumption, achieving low-power and energy-saving operation. A reserved RESET button supports manual cold restart, facilitating rapid network reset and fault recovery during on-site maintenance.

3. Environmental Adaptability And Industrial System Application of Schneider BMXNOE0110

Harsh Industrial Environment Resistance

Schneider BMXNOE0110 applies professional conformal coating circuit protection, resisting dust, moisture and mild corrosive gas interference in industrial cabinets. The module complies with CE and UL industrial certifications and meets EN 61131-2 international automation standards. Stable operation sustains within standard industrial temperature and humidity ranges, adapting to long-term continuous operation in workshop production environments.

Multi-Scenario Industrial Network Expansion Applications

This industrial Ethernet module serves as core network expansion hardware for Modicon M340 PLC systems in multiple automation fields. Intelligent manufacturing production lines deploy the unit to realize data interaction between PLC and HMI, realizing real-time equipment monitoring. Water treatment and energy industries utilize the module for remote equipment debugging and data upload. Automated logistics systems rely on stable Ethernet transmission to complete multi-device linkage control and network data synchronization.
