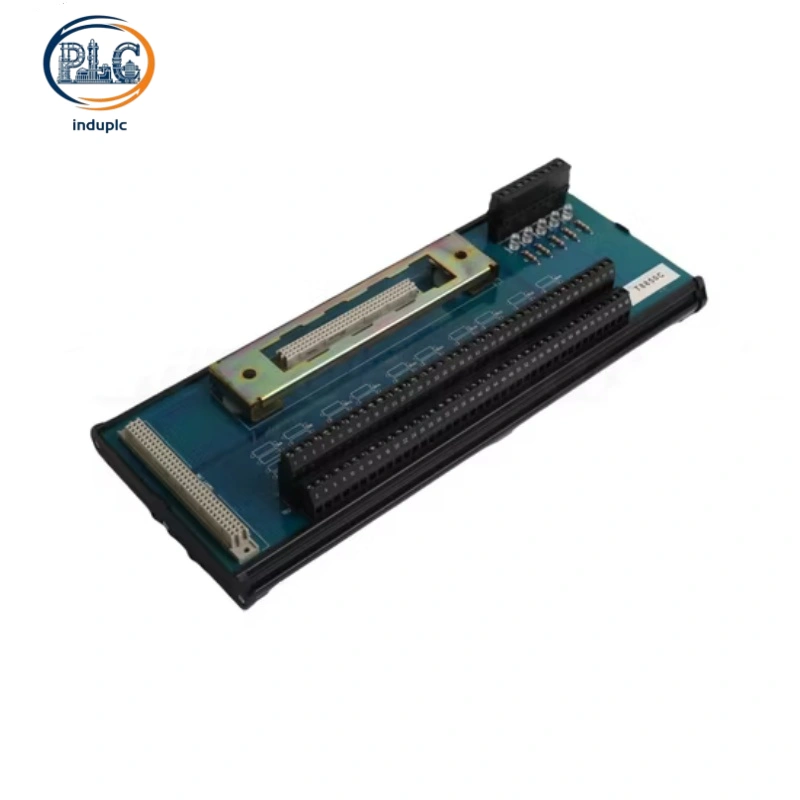

ICS‑Triplex T8850 Trusted 40-Channel Analogue/Digital Output FTA, 24 VDC Rated

1. Core Output Performance of ICS‑Triplex T8850

ICS‑Triplex T8850 is a high-performance FTA (Field Terminal Assembly) designed for safety-critical industrial automation systems, delivering reliable and flexible analogue/digital output functionality to support uninterrupted system operation. ICS‑Triplex T8850 features a 40-channel high-density output design, divided into 5 isolated groups of 8 channels each, enabling seamless interfacing with a wide range of industrial field devices for comprehensive system control. The module operates with a nominal 24 VDC input voltage, with a maximum field supply voltage of 60 VDC (via Trusted T8290), ensuring compatibility with diverse industrial power supply environments. ICS‑Triplex T8850 is equipped with on-board LED indicators for real-time feedback on field power supply integrity, enabling quick status monitoring. The module features comprehensive diagnostic capabilities, supporting fault detection for enhanced system reliability, and fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where output reliability and flexibility are critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8850

ICS‑Triplex T8850 adopts a compact, DIN rail-mounted industrial design with dimensions of 360 mm × 110 mm × 68 mm and a weight of approximately 0.5 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8850 is its SmartSlot connection, which supports ‘one to many’ hot replacement of output modules, reducing maintenance downtime and improving operational efficiency. ICS‑Triplex T8850 features robust industrial-grade construction with IP20 protection class, ensuring durability and longevity in harsh industrial conditions. The module also features dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, output status, and fault conditions to support quick on-site troubleshooting, while its screw clamp terminals on both field and power sides ensure secure and convenient wiring for field devices, with a field terminal wire size allowance of 12 AWG.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8850

ICS‑Triplex T8850 is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and manufacturing lines, where reliable and flexible analogue/digital output is essential for system integrity. ICS‑Triplex T8850 operates stably within a wide operating temperature range of 0°C to +60°C, with a storage temperature range of -25°C to +70°C, and withstands non-condensing humidity of 10% to 95% RH. ICS‑Triplex T8850 features robust industrial-grade construction, ensuring long-term durability in harsh industrial environments. The module is compatible with all ICS-Triplex systems and supports seamless integration with safety instrumented systems, while its compliance with global industrial safety standards ensures reliable performance across diverse industrial automation applications.
