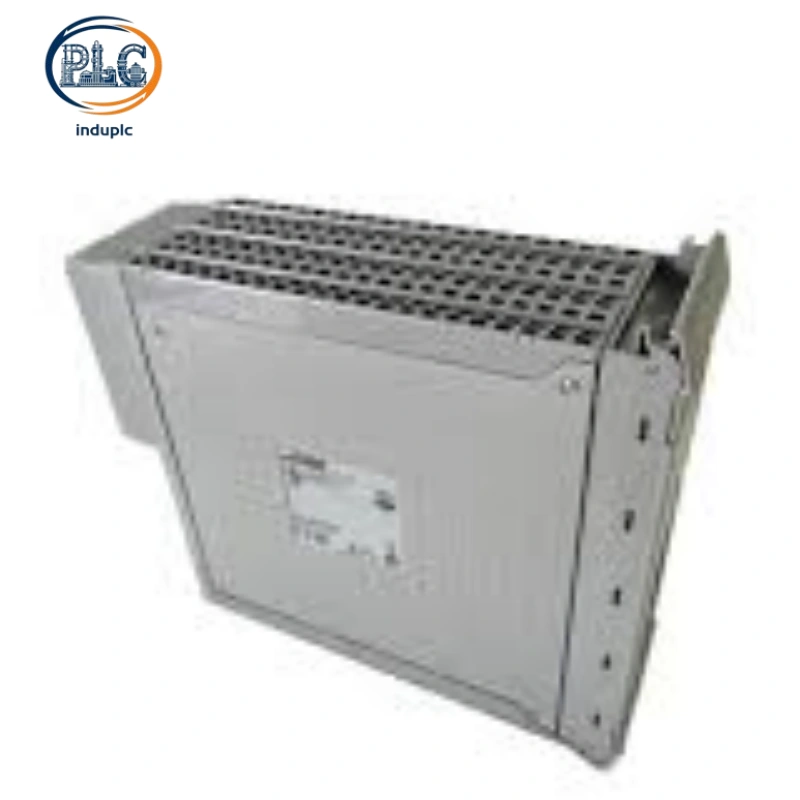

ICS‑Triplex T8431 Trusted TMR Analog Input Module, 40-Channel Capacity

1. Core Analog Input Performance of ICS‑Triplex T8431

ICS‑Triplex T8431 is a high-performance TMR (Triple Modular Redundant) analog input module designed for safety-critical industrial control systems, delivering reliable and high-precision analog signal acquisition to support uninterrupted system operation. ICS‑Triplex T8431 features a 40-channel high-density analog input design, supporting both 4-20 mA current sink and 0-6 VDC voltage input types, enabling seamless interfacing with a wide range of field sensors and devices. The module operates with a system supply voltage range of 20-32 VDC, ensuring compatibility with diverse industrial power supply environments. ICS‑Triplex T8431 is equipped with 16-bit resolution (3.9μA for current inputs) and a calibration accuracy of 0.03%, along with a 0.5 ms per channel update time and 1 ms resolution SOE (Sequence of Events) reporting function, guaranteeing swift and accurate data processing for real-time industrial operations. ICS‑Triplex T8431 fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where signal acquisition reliability and precision are critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8431

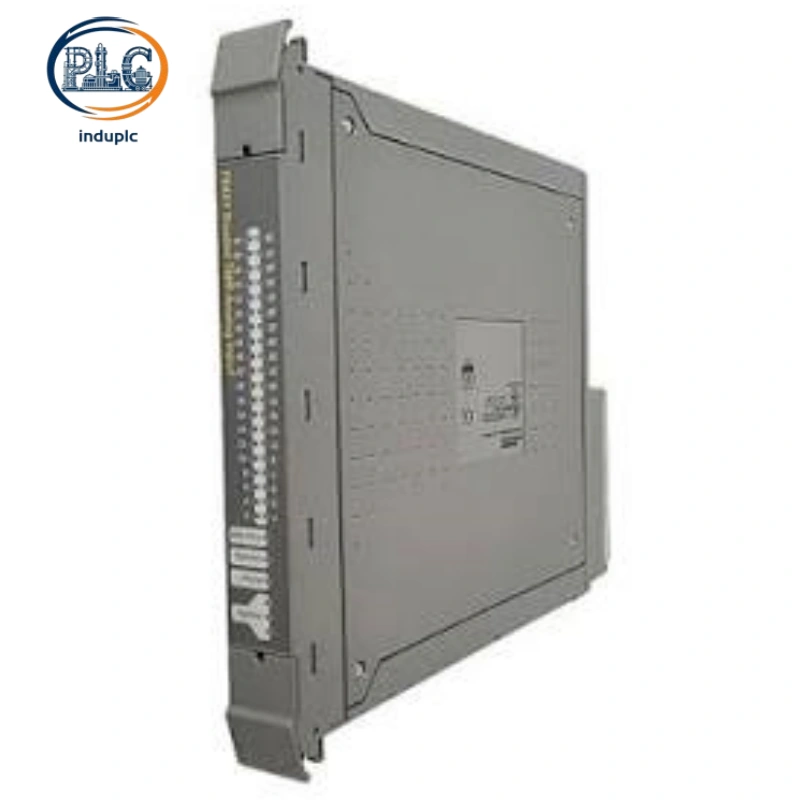

ICS‑Triplex T8431 adopts a compact, rack-mounted industrial design with dimensions of 266 mm × 31 mm × 303 mm and a weight of approximately 1.149 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8431 is its implementation of 2-out-of-3 (2oo3) voting logic within a single module, enhancing reliability and safety during operation without compromising performance. ICS‑Triplex T8431 is equipped with 2500 V pulse-tolerant optical/electrical isolation barriers, providing robust protection against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module also features dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, input status, and fault conditions to support quick on-site troubleshooting, while its terminal block connection type ensures secure and convenient wiring for field devices.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8431

ICS‑Triplex T8431 is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and pharmaceutical manufacturing lines, where reliable and precise analog signal acquisition is essential for system integrity. ICS‑Triplex T8431 operates stably within a wide operating temperature range of -10°C to +60°C, with a storage temperature range of -20°C to +70°C, and withstands non-condensing humidity of 10% to 95% RH. ICS‑Triplex T8431 features robust industrial-grade construction, with optional paint-coated variants (T8431C) offering enhanced durability against corrosion and wear in challenging industrial environments. The module is compatible with all ICS-Triplex systems and supports seamless integration with safety instrumented systems, while its TÜV certification ensures compliance with global industrial safety standards, making it a versatile and reliable choice for diverse industrial automation applications.
