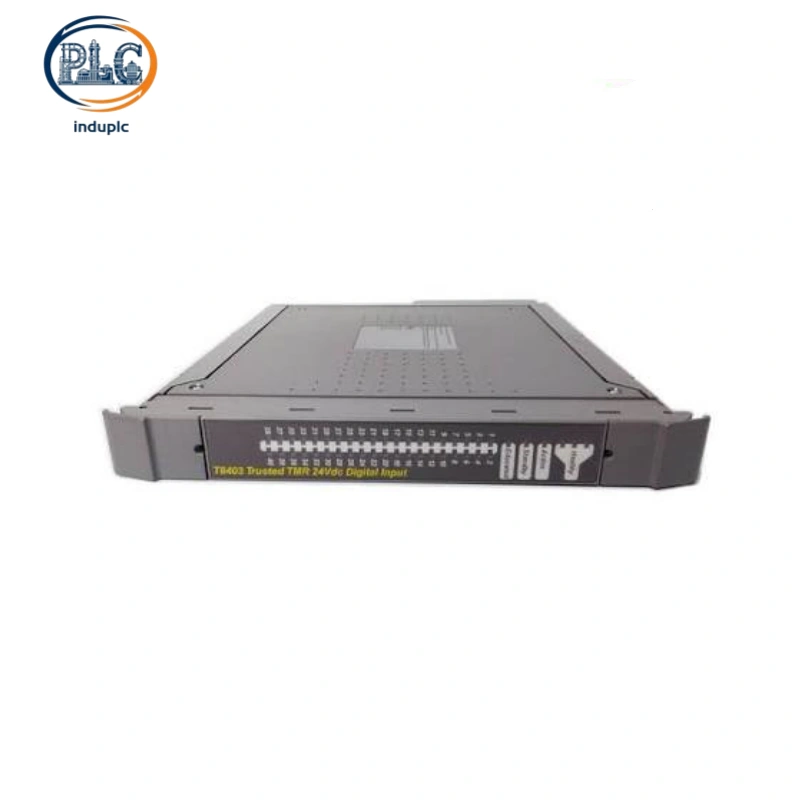

ICS‑Triplex T8403 Trusted TMR 24 VDC Digital Input Module, 40-Channel Capacity

1. Core Digital Input Performance of ICS‑Triplex T8403

ICS‑Triplex T8403 is a high-performance TMR (Triple Modular Redundant) digital input module designed for safety-critical industrial control systems, delivering reliable and fault-tolerant digital signal acquisition to support uninterrupted system operation. ICS‑Triplex T8403 features a 24 VDC input design with 40 independent TMR input channels, enabling seamless interfacing with a wide range of field input devices, with each channel supporting 2 mA input current for stable signal detection. The module operates with a system supply voltage range of 18-32 VDC, ensuring compatibility with diverse industrial power supply environments. ICS‑Triplex T8403 is equipped with comprehensive channel-level fault monitoring, supporting independent open/short circuit fault detection for each channel, along with a 1 ms resolution on-board SOE (Sequence of Events) reporting function for efficient event tracking. ICS‑Triplex T8403 fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where signal acquisition reliability is critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8403

ICS‑Triplex T8403 adopts a compact, rack-mounted industrial design with dimensions of 266 mm × 31 mm × 303 mm and a weight of approximately 1.18 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8403 is its 2500 V pulse-tolerant optical/electrical isolation barrier, which provides robust protection against electromagnetic interference and voltage fluctuations in harsh industrial environments. ICS‑Triplex T8403 is equipped with dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, input status, and fault conditions to support quick on-site troubleshooting. The module also features automatic self-diagnosis functions, enhancing maintenance efficiency and reducing long-term operational risks.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8403

ICS‑Triplex T8403 is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and pharmaceutical manufacturing lines, where reliable digital signal acquisition is essential for system integrity. ICS‑Triplex T8403 operates stably within a wide operating temperature range of -40°C to +70°C, with a storage temperature range of -40°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH. ICS‑Triplex T8403 features robust IP20-rated construction, ensuring durability in challenging industrial environments. The module is compatible with all ICS-Triplex systems and supports seamless integration with safety instrumented systems, while its TÜV certification ensures compliance with global industrial safety standards, making it a versatile and reliable choice for diverse industrial automation applications.
