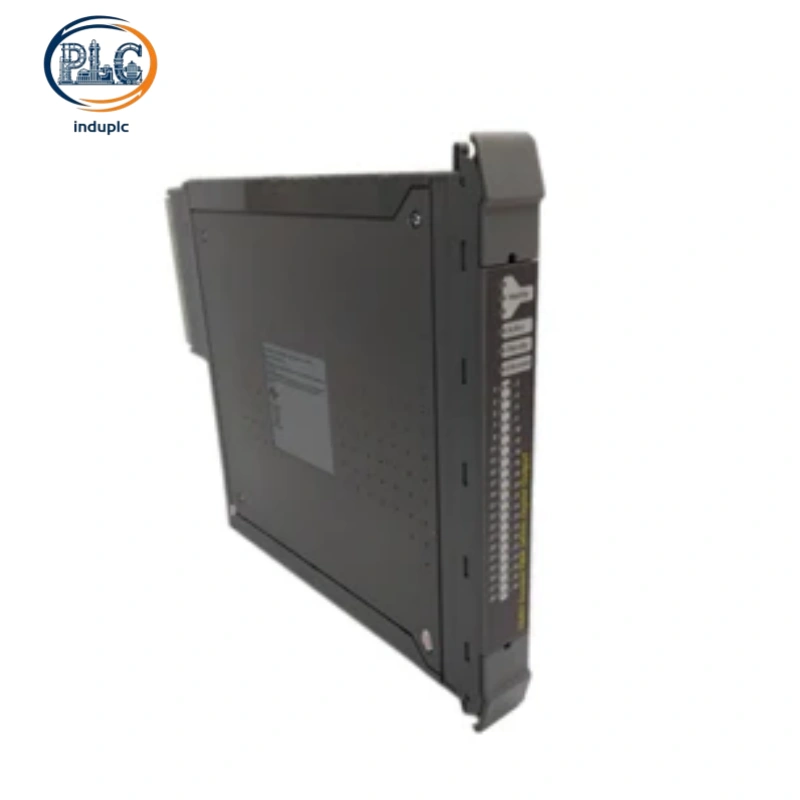

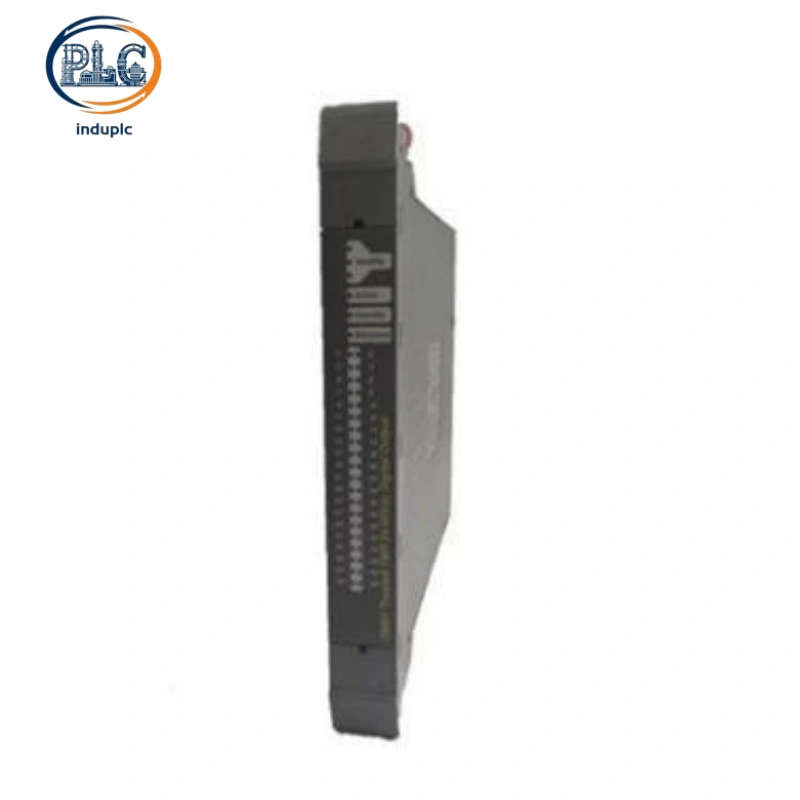

ICS‑Triplex T8402 Trusted Dual 24 VDC Digital Input Module, 60-Channel Capacity

1. Core Digital Input Performance of ICS‑Triplex T8402

ICS‑Triplex T8402 is a high-performance digital input module designed for safety-critical industrial control systems, delivering reliable and fault-tolerant digital signal acquisition to support uninterrupted system operation. ICS‑Triplex T8402 features a dual 24 VDC input design with 60 independent input channels, enabling seamless interfacing with a wide range of field input devices. The module operates with a system supply voltage range of 20-32 VDC, with a maximum power consumption of 20W, ensuring efficient power usage while maintaining stable performance. ICS‑Triplex T8402 is equipped with a “one out, two D” (102d) voting architecture, providing advanced fault detection and isolation capabilities to enhance system reliability. ICS‑Triplex T8402 fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where signal acquisition reliability is critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8402

ICS‑Triplex T8402 adopts a compact, rack-mounted industrial design with dimensions of 125 mm × 84 mm × 85 mm and a weight of approximately 0.4 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8402 is its hot-swap capability, which allows maintenance personnel to replace the module without shutting down the entire system, cutting down production downtime and improving routine maintenance efficiency. ICS‑Triplex T8402 is equipped with dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, input status, and fault conditions to support quick on-site troubleshooting. The module also supports parallel connection of multiple units for redundant input sensing, enhancing overall system resilience.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8402

ICS‑Triplex T8402 is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and pharmaceutical manufacturing lines, where reliable digital signal acquisition is essential for system integrity. ICS‑Triplex T8402 operates stably within a wide operating temperature range of -40°C to +85°C, with a storage temperature range of -25°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH. ICS‑Triplex T8402 features robust construction with surge-resistant isolation components, protecting against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module is compatible with all ICS-Triplex systems and supports all five IEC 61131-3 programming languages, enabling flexible configuration to meet diverse operational needs, while its TÜV certification ensures compliance with global industrial safety standards.
