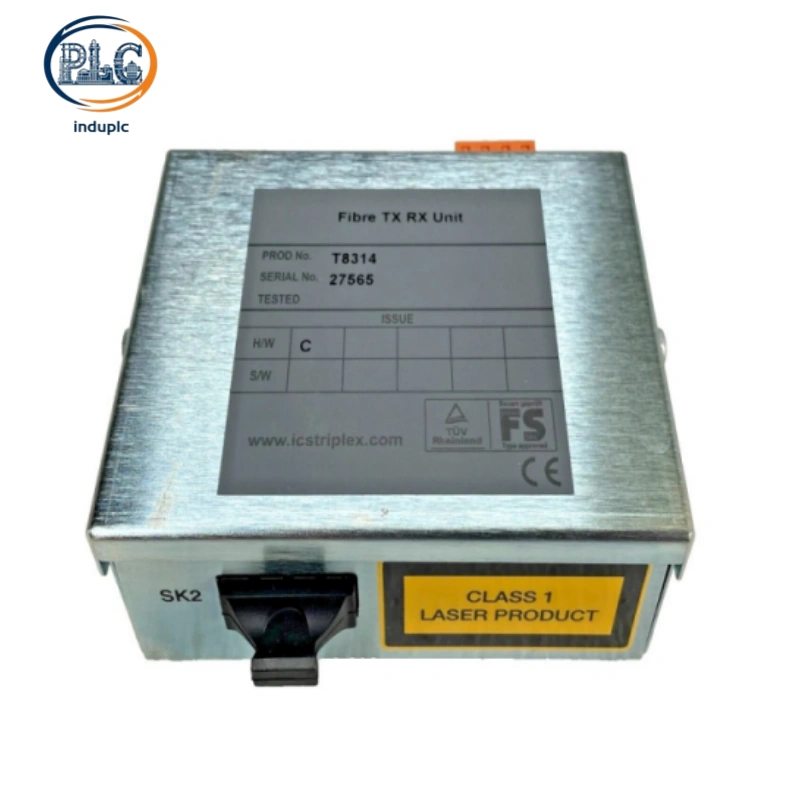

ICS‑Triplex T8314 Trusted Fibre TX/RX Unit, 18-32 VDC Power Supply

1. Core Fibre Optic Communication Performance of ICS‑Triplex T8314

ICS‑Triplex T8314 is a high-performance Trusted Fibre TX/RX Unit designed for safety-critical industrial control systems, delivering reliable long-distance fiber optic communication to support seamless data transmission. ICS‑Triplex T8314 features a triple redundant communication path architecture, ensuring uninterrupted data transfer even if one channel fails, with a maximum propagation time difference of 80 ns for consistent signal integrity. The module supports fiber optic signal conversion, converting differential copper signals to fiber optic signals with a transmitter power of -15 dBm minimum and a receiver sensitivity of -28 dBm, enabling reliable communication over distances up to 10 km. ICS‑Triplex T8314 fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where long-distance communication reliability is critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8314

ICS‑Triplex T8314 adopts a compact DIN rail-mounted industrial design with dimensions of 84 mm (width) × 110 mm (height) × 40 mm (depth) and a weight of approximately 320 g, fitting seamlessly into standard industrial control enclosures without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8314 is its dual 24 VDC diode ORed power supply design, which ensures stable power input with a maximum power consumption of 1.7 W, supporting efficient and low-energy operation. ICS‑Triplex T8314 is equipped with robust fiber optic connectors and isolation circuits, including isolators, filters, and termination components, to eliminate electrical interference and enhance signal stability. The module also features intuitive LED indicators for real-time feedback on communication status, power supply, and fault conditions, supporting quick on-site troubleshooting.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8314

ICS‑Triplex T8314 is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and pharmaceutical manufacturing lines, where long-distance, interference-free communication is essential for system integrity. ICS‑Triplex T8314 operates stably within a wide operating temperature range of -20°C to +60°C, with a storage temperature range of -25°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH. ICS‑Triplex T8314 features robust construction with surge-resistant isolation components, providing high noise immunity to protect against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module’s compatibility with ICS-Triplex PLC systems enables flexible configuration, while its CE, UL, and RoHS certifications ensure compliance with global industrial safety and environmental standards.
