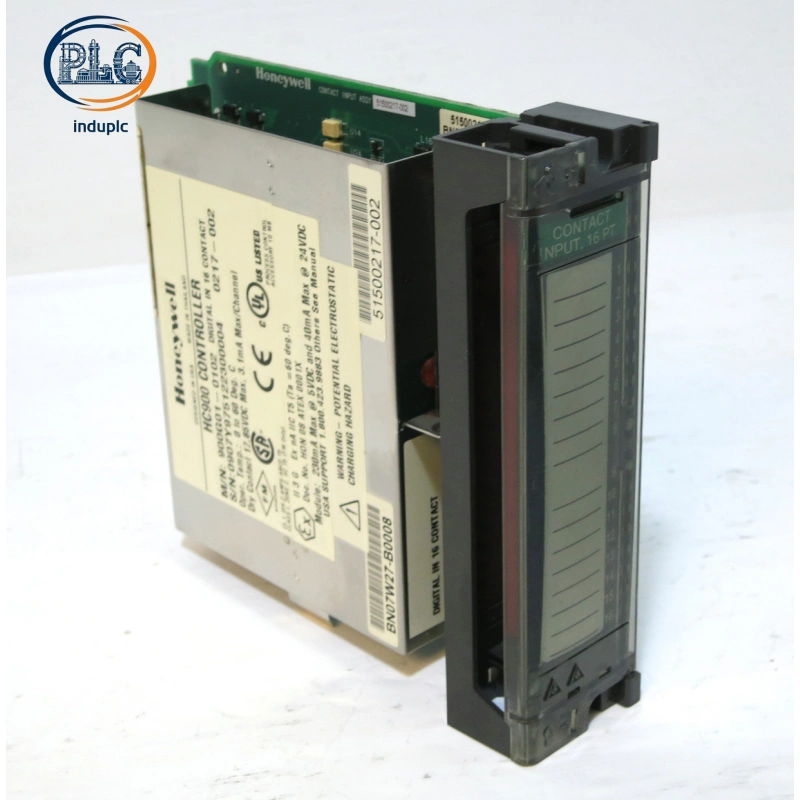

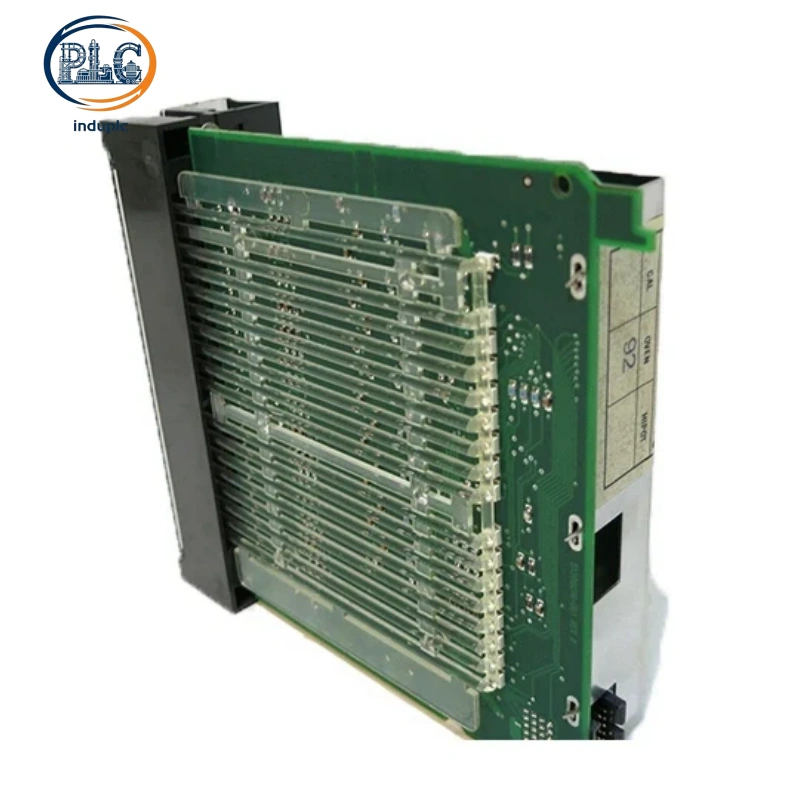

Honeywell 900G01‑0102 16-Channel Digital Input Module for ControlEdge HC900 Control System

1. Hardware Structure and Functional Configuration of Honeywell 900G01‑0102

The Honeywell 900G01‑0102 is a 16-channel digital input module belonging to the Honeywell HC900 series, designed for reliable digital signal acquisition in ControlEdge HC900 industrial control platforms. The Honeywell 900G01‑0102 serves as a critical signal input hub, responsible for collecting digital signals from field devices such as switches, sensors, and contact closures, and transmitting them to the HC900 controller for processing. The Honeywell 900G01‑0102 features a compact, rugged industrial form factor optimized for seamless integration into standard HC900 controller chassis, with reinforced casing to withstand harsh industrial environments characterized by high vibration, electromagnetic interference, and fluctuating temperatures.

The Honeywell 900G01‑0102 adopts a rack-mounting structure that fits perfectly into designated slots of HC900 control cabinets without additional adapters or modifications. The front panel of the Honeywell 900G01‑0102 is equipped with clear status indicators for each channel, allowing operation and maintenance personnel to quickly identify channel status, signal abnormalities, and module faults. The module supports single-ended input configuration, making it suitable for diverse industrial digital signal acquisition applications. The Honeywell 900G01‑0102 is compatible with a wide range of HC900 CPU modules and power supply components, supporting easy system expansion and hardware replacement for existing automation setups.

2. Core Performance and Functional Principles of Honeywell 900G01‑0102

The Honeywell 900G01‑0102 is built with high-quality industrial circuitry, delivering reliable and efficient digital signal acquisition for industrial control tasks. The Honeywell 900G01‑0102 features 16 independent single-ended input channels, each supporting a 0–30 VDC input range (24 VDC nominal), ensuring compatibility with most industrial digital field devices. The module is equipped with 500 VAC channel-to-backplane isolation, effectively protecting the HC900 controller from electrical interference and damage caused by on-site voltage fluctuations. The Honeywell 900G01‑0102 executes signal acquisition synchronously with the HC900 system scan cycle, ensuring real-time and accurate transmission of digital signals to the controller.

Core Hardware Parameters

• Core Function: 16-channel digital input module for HC900 system, responsible for acquiring digital signals from field devices

• Input Channels: 16 independent single-ended channels

• Input Voltage Range: 0–30 VDC (24 VDC nominal)

• Isolation Voltage: 500 VAC (channel-to-backplane)

• Input Type: Contact closure type, compatible with various industrial switches and sensors

• Power Supply: 24 VDC nominal (±10% tolerance), stable power consumption for reliable operation

• Operating Temperature Range: -20℃ to +60℃, non-condensing humidity 10% to 90%RH

• Dimensions: 137 x 35.6 x 151.7 mm (H x W x D), compact design for space-saving installation

• Safety Compliance: Meets industrial safety standards for process control applications, ensuring reliable signal acquisition in harsh environments

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900G01‑0102

The Honeywell 900G01‑0102 is fully compatible with the ControlEdge HC900 process control system, and can be combined with HC900 CPU modules, analog I/O modules, and power supply components to build a complete industrial control system. The Honeywell 900G01‑0102 supports configuration through Honeywell’s Designer software, allowing users to set channel parameters, adjust signal detection thresholds, and configure fault alarm settings efficiently. The module is also compatible with Experion PKS systems, enabling seamless integration into Honeywell’s industrial control ecosystem and reducing engineering and maintenance costs.

The Honeywell 900G01‑0102 is widely applied in diverse industrial scenarios requiring reliable digital signal acquisition, such as pharmaceutical processing, boiler control, water treatment, building material production, and general manufacturing. The Honeywell 900G01‑0102 collects critical digital signals from field devices, providing accurate input data for the HC900 controller to execute control logic and trigger corresponding actions. Daily maintenance of the Honeywell 900G01‑0102 includes regular inspection of connection tightness, cleaning of circuit board dust, and verification of channel signal integrity. The module supports hot-swapping, minimizing downtime during maintenance and ensuring uninterrupted production operations.
