Honeywell 900C52‑0244‑00 C52 CPU Controller Module for ControlEdge HC900 Control System

1. Hardware Structure and Functional Configuration of Honeywell 900C52‑0244‑00

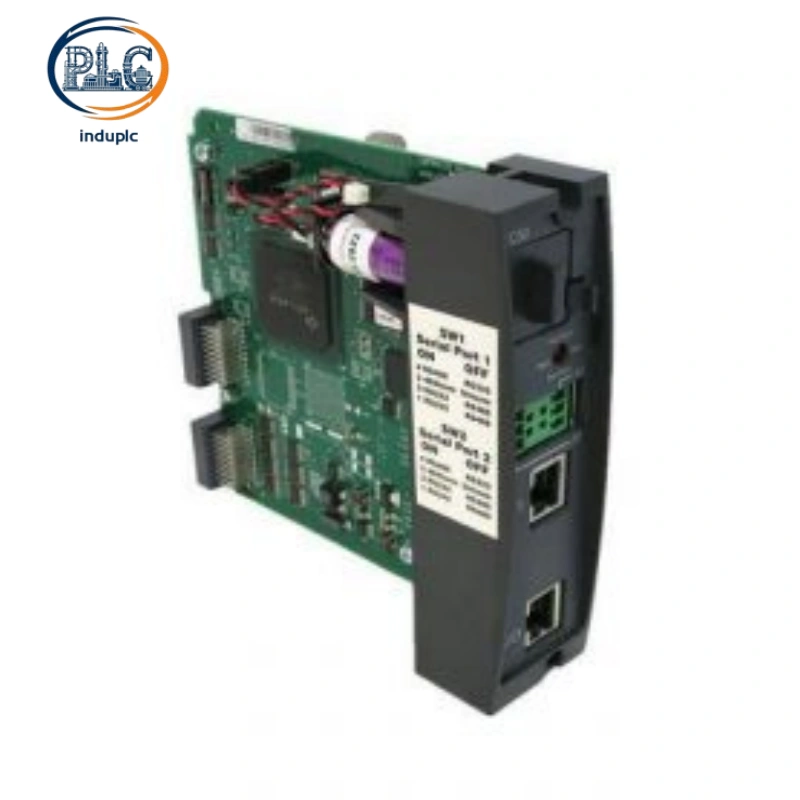

The Honeywell 900C52‑0244‑00 is a C52 CPU controller module belonging to the Honeywell HC900 series, designed as the core processing unit for medium to large-scale ControlEdge HC900 industrial control platforms. The Honeywell 900C52‑0244‑00 serves as the central control hub of the HC900 system, responsible for executing complex control logic, managing large-scale I/O operations, and facilitating reliable communication across the automation network. The Honeywell 900C52‑0244‑00 features a compact, rugged industrial form factor optimized for seamless integration into standard HC900 controller chassis, with reinforced casing to withstand harsh industrial environments characterized by high vibration, electromagnetic interference, and fluctuating temperatures.

The Honeywell 900C52‑0244‑00 adopts a rack-mounting structure that fits perfectly into designated slots of HC900 control cabinets without additional adapters or modifications. The front panel of the Honeywell 900C52‑0244‑00 is equipped with clear status indicators, allowing operation and maintenance personnel to quickly identify CPU operation status, communication abnormalities, and system faults. The module supports both non-redundant and redundant architectures, making it suitable for diverse industrial control applications with varying reliability requirements. The Honeywell 900C52‑0244‑00 is compatible with a wide range of HC900 I/O modules and power supply components, supporting easy system expansion and hardware replacement for existing automation setups.

2. Core Performance and Functional Principles of Honeywell 900C52‑0244‑00

The Honeywell 900C52‑0244‑00 is built with a high-performance industrial CPU, delivering robust processing power for complex industrial control tasks. The Honeywell 900C52‑0244‑00 is equipped with 64MB battery-backed DDR2 memory with ECC circuitry, ensuring efficient data processing, reliable data retention, and enhanced error detection for critical industrial operations. The module executes control logic synchronously with the HC900 system scan cycle, ensuring real-time and accurate processing of I/O signals and control commands, and supports up to 2000 function blocks to meet the demands of medium to large-scale control systems.

Core Hardware Parameters

• Core Function: Central processing unit (CPU) for HC900 system, supporting complex control logic and medium to large-scale I/O management

• Processor Type: High-performance industrial CPU (C52 series)

• Memory Configuration: 64MB battery-backed DDR2 memory with ECC circuitry

• Function Block Capacity: Up to 2000 function blocks

• Communication Interfaces: Supports Ethernet (Modbus TCP), serial communication (RS-232, RS-485, Modbus RTU), and USB protocols

• Redundancy Support: Compatible with non-redundant and redundant architectures

• Power Supply: 24 VDC nominal (18–32 VDC range), with stable power consumption for reliable operation

• Operating Temperature Range: 0℃ to +60℃, non-condensing humidity 10% to 90%RH

• Safety Compliance: Meets industrial safety standards for process control applications, ensuring reliable operation in critical scenarios

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900C52‑0244‑00

The Honeywell 900C52‑0244‑00 is fully compatible with the ControlEdge HC900 process control system, and can be combined with HC900 I/O modules, power supply components, and operator interfaces to build a scalable industrial control system. The Honeywell 900C52‑0244‑00 supports configuration through Honeywell’s Designer software, allowing users to set control logic, configure I/O parameters, and adjust system thresholds efficiently. The module is also compatible with Experion PKS systems, enabling seamless integration into Honeywell’s industrial control ecosystem and reducing engineering and maintenance costs.

The Honeywell 900C52‑0244‑00 is widely applied in medium to large-scale industrial scenarios requiring robust processing power and reliable control solutions, such as thermal processing, life sciences, pharmaceutical processing, boiler control, water treatment, and power generation. The Honeywell 900C52‑0244‑00 executes critical control logic, manages I/O signal transmission, and ensures the safe and stable operation of industrial processes. Daily maintenance of the Honeywell 900C52‑0244‑00 includes regular inspection of connection tightness, firmware updates, and system diagnostic checks. The module supports hot-swapping in redundant configurations, minimizing downtime during maintenance and ensuring uninterrupted production operations.
